- YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023
ELECTRICAL 1

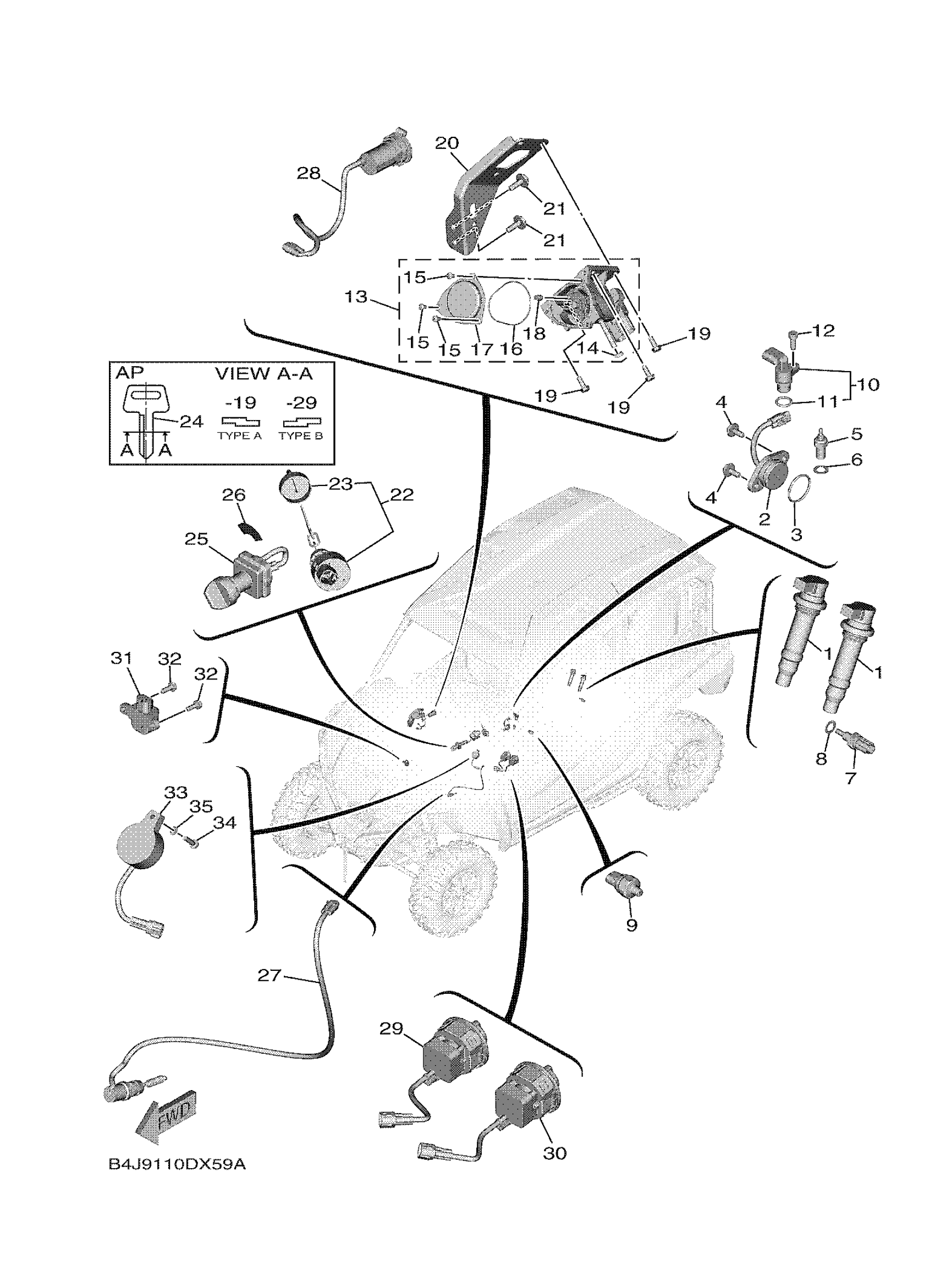

Yamaha YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
1WS-82310-00-00
$110.99
2
NEUTRAL SWITCH ASS
BG4-82540-02-00
Unavailable
3
O-RING (371)
93210-29196-00
$8.49
4
BOLT, WITH WASHER
90119-06137-00
$8.49
5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
6
GASKET (1KH,1.0T)
90430-10148-00
$5.60
7
THERMO UNIT
52B-H3591-00-00
$34.99
8
GASKET
90430-10004-00
$7.49
9
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
10
SENSOR, SPEED
1TP-83755-00-00
$77.99
11
O-RING
4D9-81168-00-00
$6.99
12
BOLT(3MA)
91312-06016-00
$5.60
13
SENSOR UNIT
BG4-8A410-01-00
Unavailable
14
NUT, CABLE ADJUSTING
1S3-14161-00-00
Unavailable
15
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
16
O-RING
5LP-14147-00-00
Unavailable
17
COVER 1
5UG-14293-00-00
Unavailable
18
GUIDE, CABLE
1UY-14155-00-00
Unavailable
19
BOLT, SPECIAL
JW1-F3394-00-00
Unavailable
20
BRKT, PIPE 1
B4J-F133K-00-00
Unavailable
21
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
22
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
23
CAP, KEY
1XD-H2579-10-00
Unavailable
24
KEY, MAIN SWITCH
1XD-H2511-19-00
Unavailable
24
KEY, MAIN SWITCH
1XD-H2511-29-00
Unavailable
25
KEY ASSY
BG4-8250A-00-00
Unavailable
26
LABEL
B4J-H2108-00-00
Unavailable
27
STOP SWITCH ASSY
B90-82530-01-00
Unavailable
28
TERMINAL COMP.
B4J-H254B-00-00
Unavailable
29
SWITCH, LAMP
B4J-82526-10-00
Unavailable
30
SWITCH, SELECT
B4J-87280-20-00
Unavailable
31
SENSOR, LEAN ANGLE
3B4-82576-10-00
Unavailable
32
BOLT, SPECIAL
JW1-F3394-00-00
Unavailable
33
BUZZER
2MB-83383-00-00
Unavailable
34
BOLT(3JK)
97027-05020-00
Unavailable
35
WASHER, PLAIN (646)
92990-05600-00
Unavailable
