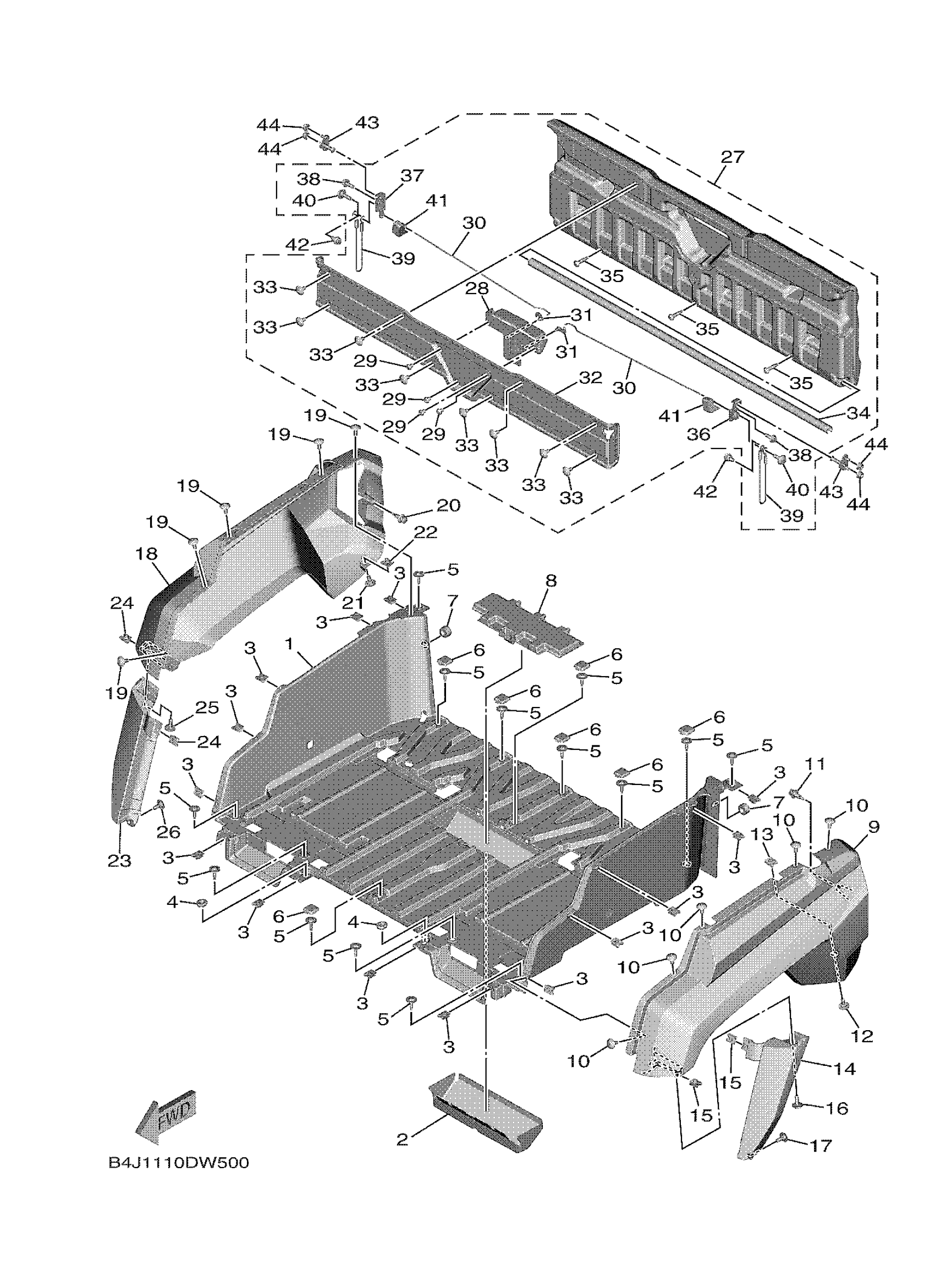

Yamaha YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023 CARRIER Diagram
#
Description
Price
1
BOX,TOOL
BG4-F1171-01-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
18
PANEL, REAR FENDER
B4J-K8192-10-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
GUARD 2
B4J-F2362-00-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
Unavailable
27
REAR STORAGE LID C
BAR-K810N-10-00
Unavailable
28
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
29
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
30
ROD
BG4-F8478-00-00
Unavailable
31
CLIP, CABLE
BG4-F2805-01-00
Unavailable
32
COVER
BG4-F331G-00-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
34
HINGE 2
1XD-F463F-00-00
Unavailable
35
. SCREW
90149-06846-00
Unavailable
36
LOCK ASSY
BG4-F16A0-00-00
Unavailable
37
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
38
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
39
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
40
BOLT
90109-06171-00
Unavailable
41
DAMPER 2
BG4-F8416-10-00
Unavailable
42
BOLT
90109-06212-00
Unavailable
43
BOLT, STUD
BG4-F4441-00-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
