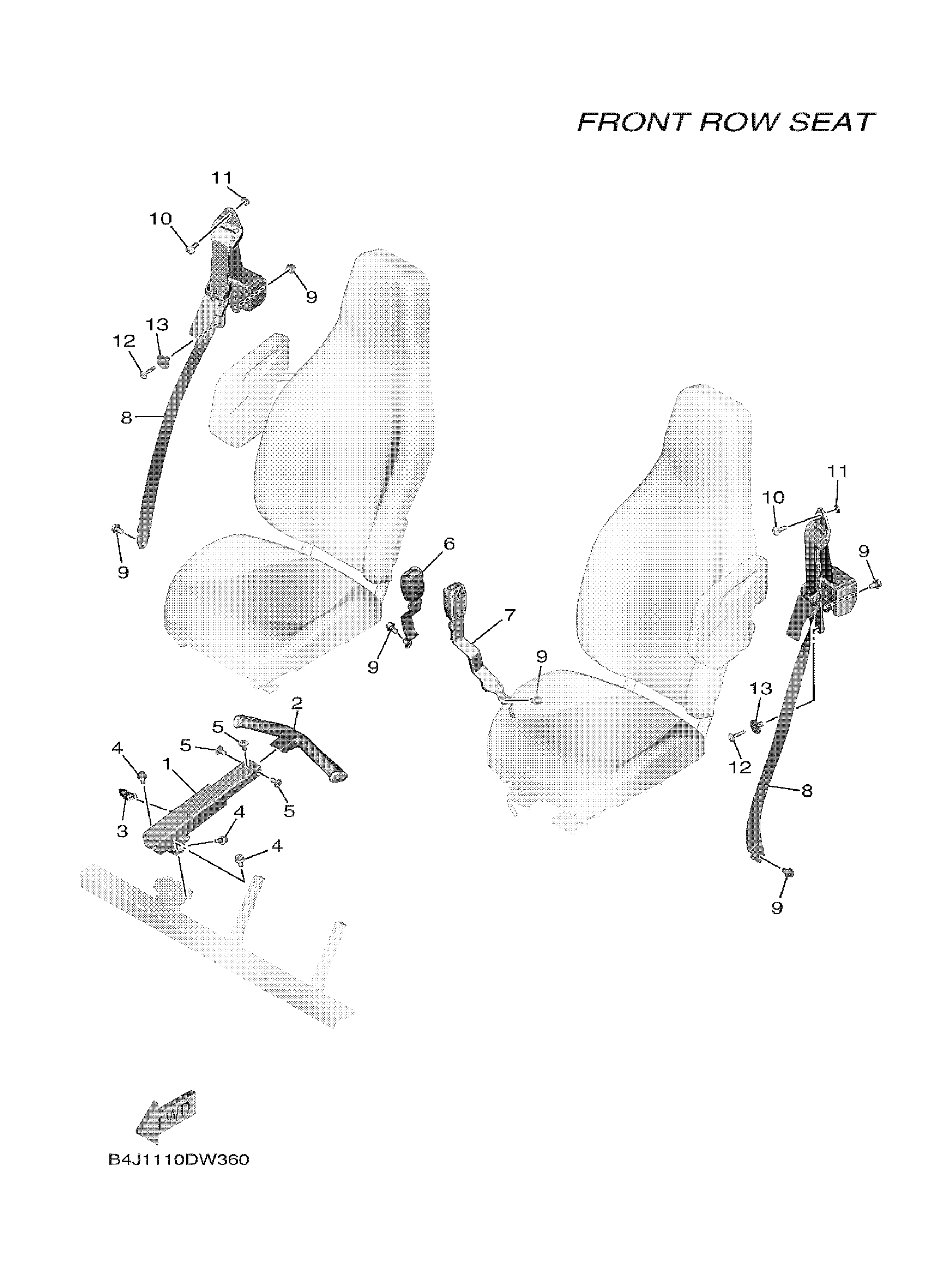

Yamaha YXF10WRANS (WOLVERINE RMAX4 EPS R SPEC) B4J9 2022 SEAT 2 Diagram

#

Description
Price

1

ASSIST, GRIP

B4J-F474A-02-00

$223.99

2

GRIP, 1

B4J-F8482-02-00

$78.99

3

LEVER, SEAT

B4J-F477F-00-00

$2.17

4

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

5

SCREW

90149-08805-00

$1.01

6

FR. BELT RECEIVER

B4J-F470R-01-00

$73.99

7

FR. BELT RECEIVER

B4J-F470R-12-00

$109.99

8

FR. SEAT BELT ASSY

B4J-F470L-02-00

$170.99

9

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.34

10

BOLT,HEX. SOCKET B

90111-11800-00

$2.65

11

WASHER, PLATE (583)

90201-12593-00

$9.49

12

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

Unavailable

13

COLLAR (17W)

90387-075H4-00

$8.49
