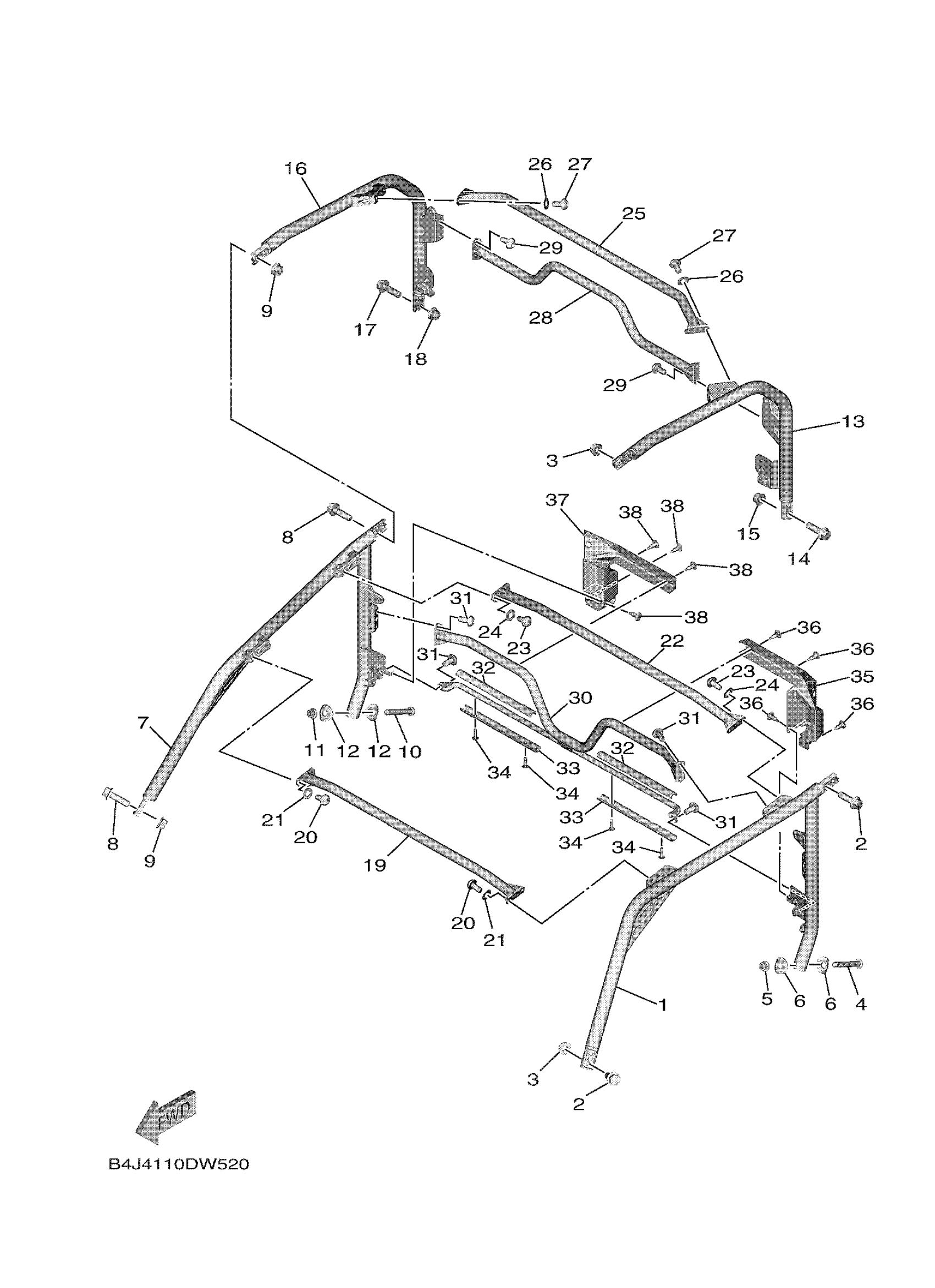

Yamaha YXF10WRANS (WOLVERINE RMAX4 EPS R SPEC) B4J9 2022 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B4J-K831A-01-00

$217.06

2

BOLT, FLANGE

95817-12040-00

$3.33

3

NUT, SELF-LOCKING

90185-12002-00

$9.38

4

BOLT,BUTTON

92017-10070-00

$4.08

5

NUT, SELF-LOCKING

90185-10819-00

$0.91

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

B4J-K831E-01-00

$217.06

8

BOLT, FLANGE

95817-12040-00

$3.33

9

NUT, SELF-LOCKING

90185-12002-00

$9.38

10

BOLT,BUTTON

92017-10070-00

$4.08

11

NUT, SELF-LOCKING

90185-10819-00

$0.91

12

WASHER 2

1XD-K7526-00-00

$3.92

13

FRAME, SUNROOF 1

B4J-K833M-01-00

$243.17

14

BOLT, FLANGE

95817-12040-00

$3.33

15

NUT, SELF-LOCKING

90185-12002-00

$9.38

16

FRAME, SUNROOF 2

B4J-K833R-01-00

Unavailable

17

BOLT, FLANGE

95817-12040-00

$3.33

18

NUT, SELF-LOCKING

90185-12002-00

$9.38

19

MEMBER, ROOF FRAME

B4J-K8392-01-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

21

WASHER, PLATE

90201-10076-00

Unavailable

22

MEMBER, ROOF FRAME 2

B4J-K8393-01-00

Unavailable

23

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

24

WASHER, PLATE

90201-10076-00

Unavailable

25

MEMBER, ROOF FRAME 3

B4J-K8394-01-00

Unavailable

26

WASHER, PLATE

90201-10076-00

Unavailable

27

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

28

ROOF SUPPORT ASSY

B4J-K830A-00-00

Unavailable

29

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

30

ROOF SUPPORT ASSY

B4J-K830B-00-00

Unavailable

31

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

32

GRIP,HAND

BG4-K8214-01-00

Unavailable

33

COVER,ASSIST GRIP

BG4-K7575-01-00

Unavailable

34

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

35

COVER, SIDE PILLAR

B4J-K813F-00-00

Unavailable

36

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

37

COVER, SIDE PILLAR

B4J-K813G-00-00

Unavailable

38

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
