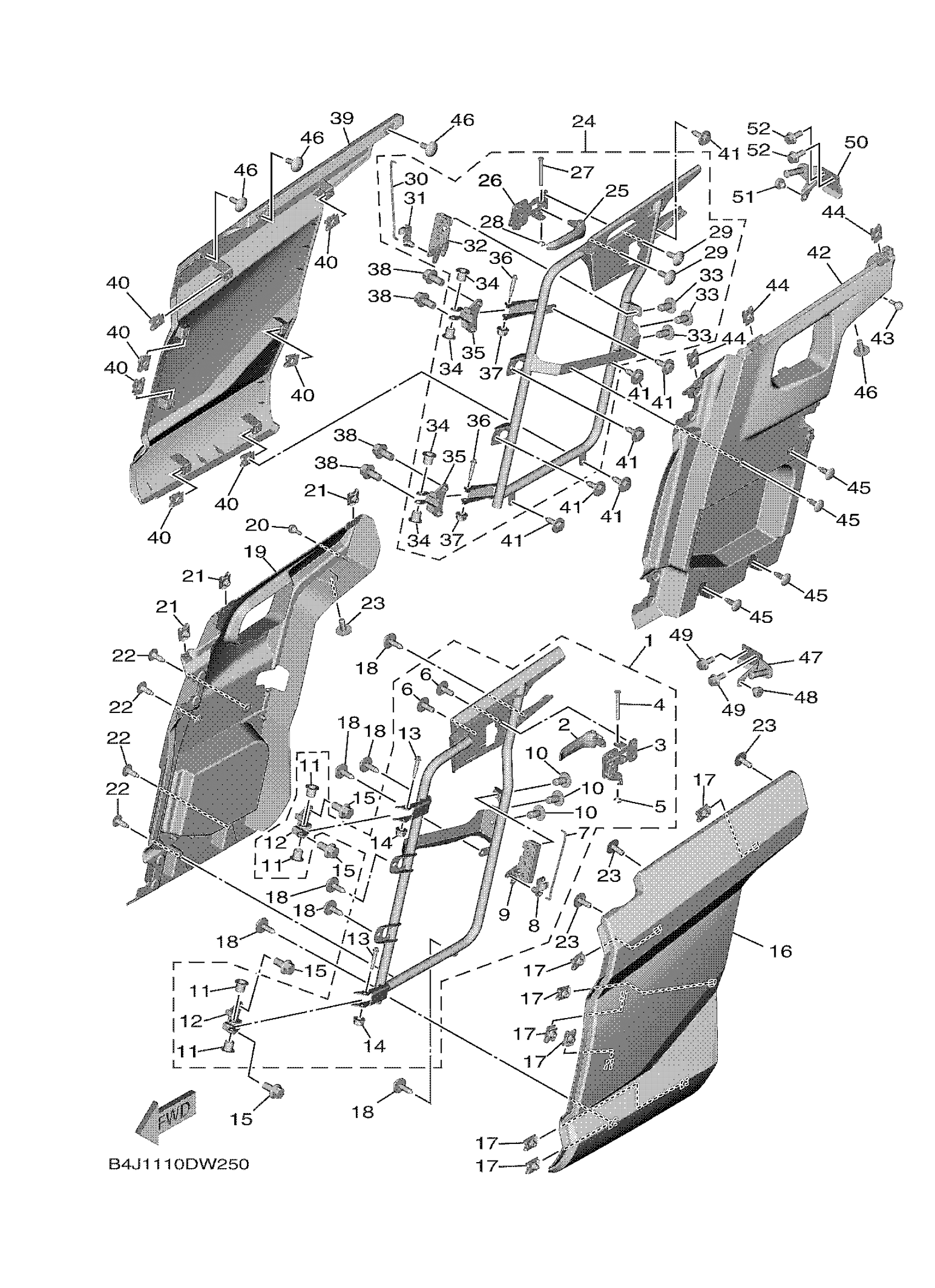

Yamaha YXF10WPZMG (WOLVERINE RMAX 4 SE) B4J1 2021 SIDE COVER 2 Diagram
#
1
RR. DOOR COMP. LH
B4J-K8507-01-00
$207.99
2
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
3
BRACKET, ROTOR 1
B4J-F8465-00-00
$39.99
4
. PIN
90249-05801-00
Unavailable
5
CIRCLIP (EU0)
99080-04600-00
Unavailable
6
BOLT,HEX. SOCKET BUTTON
90111-06181-00
$1.38
7
ROD 1
B4J-F7277-00-00
$3.02
8
CLIP, CABLE
BG4-F2805-01-00
$2.17
9
LOCK ASSY
B4J-F16A0-02-00
$53.99
10
SCREW
90149-08805-00
$1.01
11
BUSH, SOLID
90381-08001-00
$5.60
12
HINGE
B4J-F1797-02-00
$13.49
13
BOLT
90109-068C9-00
$1.06
14
NUT, U FLANGE
95604-06200-00
$8.49
15
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
16
SIDE COVER COMP. 3
B4J-F17G0-00-00
Unavailable
17
NUT, SPRING
90183-062A1-00
Unavailable
18
BOLT, WITH WASHER
90119-06226-00
Unavailable
19
PNL, DOOR RR, LH
B4J-K8571-00-00
Unavailable
20
PLUG
90338-05009-00
Unavailable
21
NUT, SPRING
90183-062A1-00
Unavailable
22
RIVET(8AB)
90269-05073-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
24
RR. DOOR COMP. RH
B4J-K8508-01-00
Unavailable
25
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
26
BRACKET, ROTOR 2
B4J-F8466-00-00
Unavailable
27
. PIN
90249-05801-00
Unavailable
28
CIRCLIP (EU0)
99080-04600-00
Unavailable
29
BOLT,HEX. SOCKET BUTTON
90111-06181-00
$1.38
30
ROD 1
B4J-F7277-00-00
$3.02
31
CLIP, CABLE
BG4-F2805-01-00
$2.17
32
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
33
SCREW
90149-08805-00
$1.01
34
BUSH, SOLID
90381-08001-00
$5.60
35
HINGE
B4J-F1797-02-00
$13.49
36
BOLT
90109-068C9-00
$1.06
37
NUT, U FLANGE
95604-06200-00
$8.49
38
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
39
SIDE COVER COMP. 4
B4J-F17H0-00-00
Unavailable
40
NUT, SPRING
90183-062A1-00
Unavailable
41
BOLT, WITH WASHER
90119-06226-00
Unavailable
42
PNL. , DOOR RR. RH
B4J-K8572-00-00
Unavailable
43
PLUG
90338-05009-00
Unavailable
44
NUT, SPRING
90183-062A1-00
Unavailable
45
RIVET(8AB)
90269-05073-00
Unavailable
46
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
47
HOOK, SIDE COVER 3
B4J-F1333-00-00
Unavailable
48
PLUG
90338-10801-00
Unavailable
49
BOLT, FLANGE DEEP RECESS
95D32-06014-00
Unavailable
50
HOOK, SIDE COVER 4
B4J-F1334-00-00
Unavailable
51
PLUG
90338-10801-00
Unavailable
52
BOLT, FLANGE DEEP RECESS
95D32-06014-00
Unavailable
