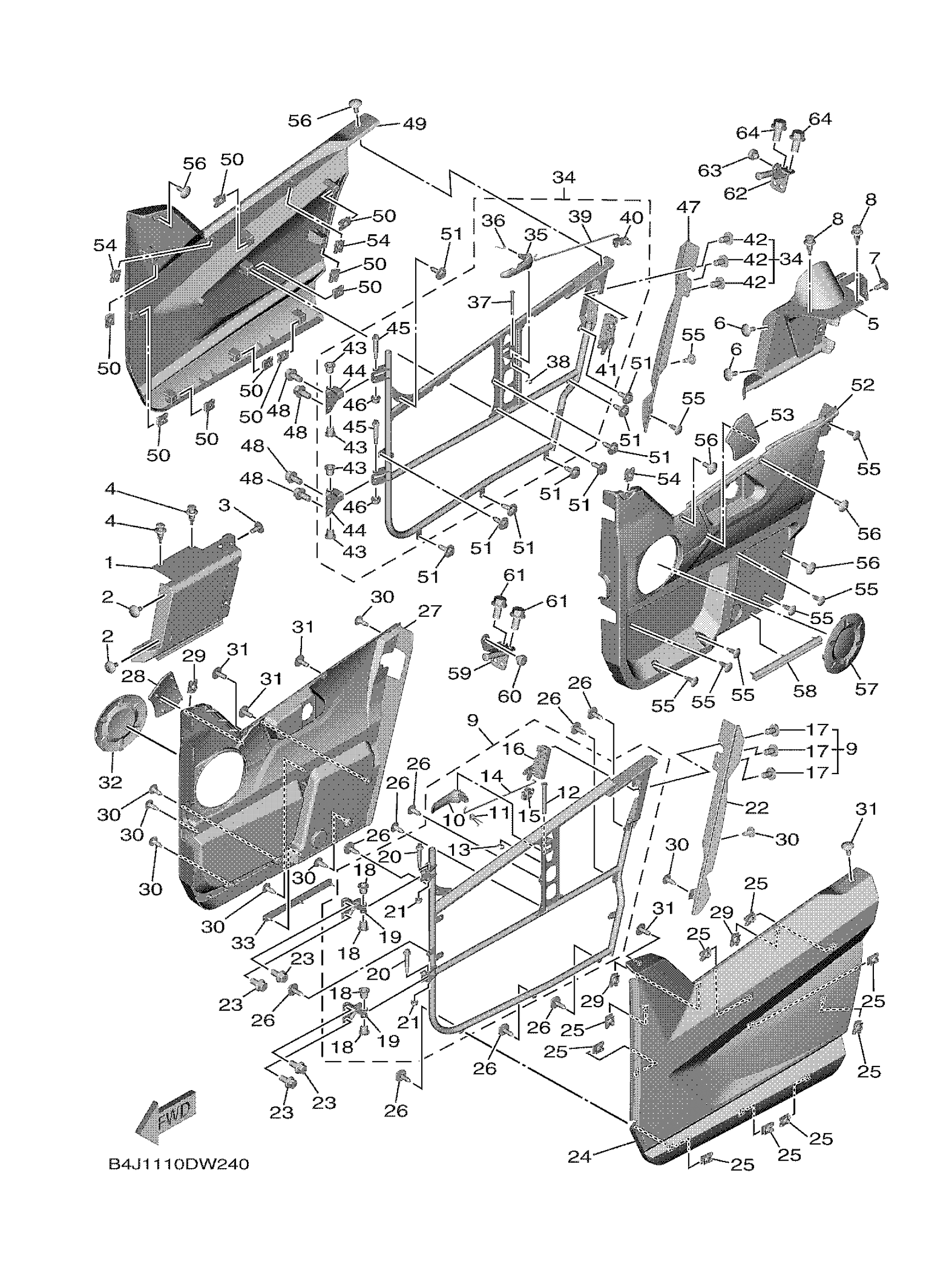

Yamaha YXF10WPZMG (WOLVERINE RMAX 4 SE) B4J1 2021 SIDE COVER Diagram
#
1
COVER, SIDE 2
B4J-F1721-01-00
$109.99
2
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
3
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
4
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
5
COVER, SIDE 3
B4J-F1731-00-00
$21.99
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
8
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
9
FF. DOOR COMP. LH
B4J-K8504-01-00
$220.99
10
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
11
SPRING
2HC-F1742-00-00
$2.96
12
. PIN
90249-05801-00
Unavailable
13
CIRCLIP (EU0)
99080-04600-00
Unavailable
14
ROD 1
B4J-F7247-00-00
$3.76
15
CLIP, CABLE
BG4-F2805-01-00
$2.17
16
LOCK ASSY
B4J-F16A0-02-00
Unavailable
17
SCREW
90149-08805-00
Unavailable
18
BUSH, SOLID
90381-08001-00
Unavailable
19
HINGE
B4J-F1796-01-00
Unavailable
20
BOLT
90109-068C9-00
Unavailable
21
NUT, U FLANGE
95604-06200-00
Unavailable
22
PLATE 1
B4J-F191B-00-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
SIDE COVER COMP. 1
B4J-F17E0-00-00
Unavailable
25
NUT, SPRING
90183-062A1-00
Unavailable
26
BOLT, WITH WASHER
90119-06226-00
Unavailable
27
PNL., DOOR FR. LH
B4J-K8557-00-00
Unavailable
28
PROTECTOR 1
B4J-K811V-01-00
Unavailable
29
NUT, SPRING
90183-062A1-00
Unavailable
30
RIVET(8AB)
90269-05073-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
32
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
33
SEAL 2
B4J-F1735-00-00
Unavailable
34
FF. DOOR COMP. RH
B4J-K8505-01-00
Unavailable
35
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
36
SPRING
2HC-F1742-00-00
$2.96
37
. PIN
90249-05801-00
Unavailable
38
CIRCLIP (EU0)
99080-04600-00
Unavailable
39
ROD 2
B4J-F7248-00-00
Unavailable
40
CLIP, CABLE
BG4-F2805-01-00
$2.17
41
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
42
SCREW
90149-08805-00
Unavailable
43
BUSH, SOLID
90381-08001-00
Unavailable
44
HINGE
B4J-F1796-01-00
Unavailable
45
BOLT
90109-068C9-00
Unavailable
46
NUT, U FLANGE
95604-06200-00
Unavailable
47
PLATE 2
B4J-F191C-00-00
Unavailable
48
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
49
SIDE COVER COMP. 2
B4J-F17F0-00-00
Unavailable
50
NUT, SPRING
90183-062A1-00
Unavailable
51
BOLT, WITH WASHER
90119-06226-00
Unavailable
52
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
53
PROTECTOR 1
B4J-K811V-01-00
Unavailable
54
NUT, SPRING
90183-062A1-00
Unavailable
55
RIVET(8AB)
90269-05073-00
Unavailable
56
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
57
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
58
SEAL 2
B4J-F1735-00-00
Unavailable
59
HOOK, SIDE COVER 1
B4J-F1331-01-00
Unavailable
60
PLUG
90338-10801-00
Unavailable
61
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
62
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
63
PLUG
90338-10801-00
Unavailable
64
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
