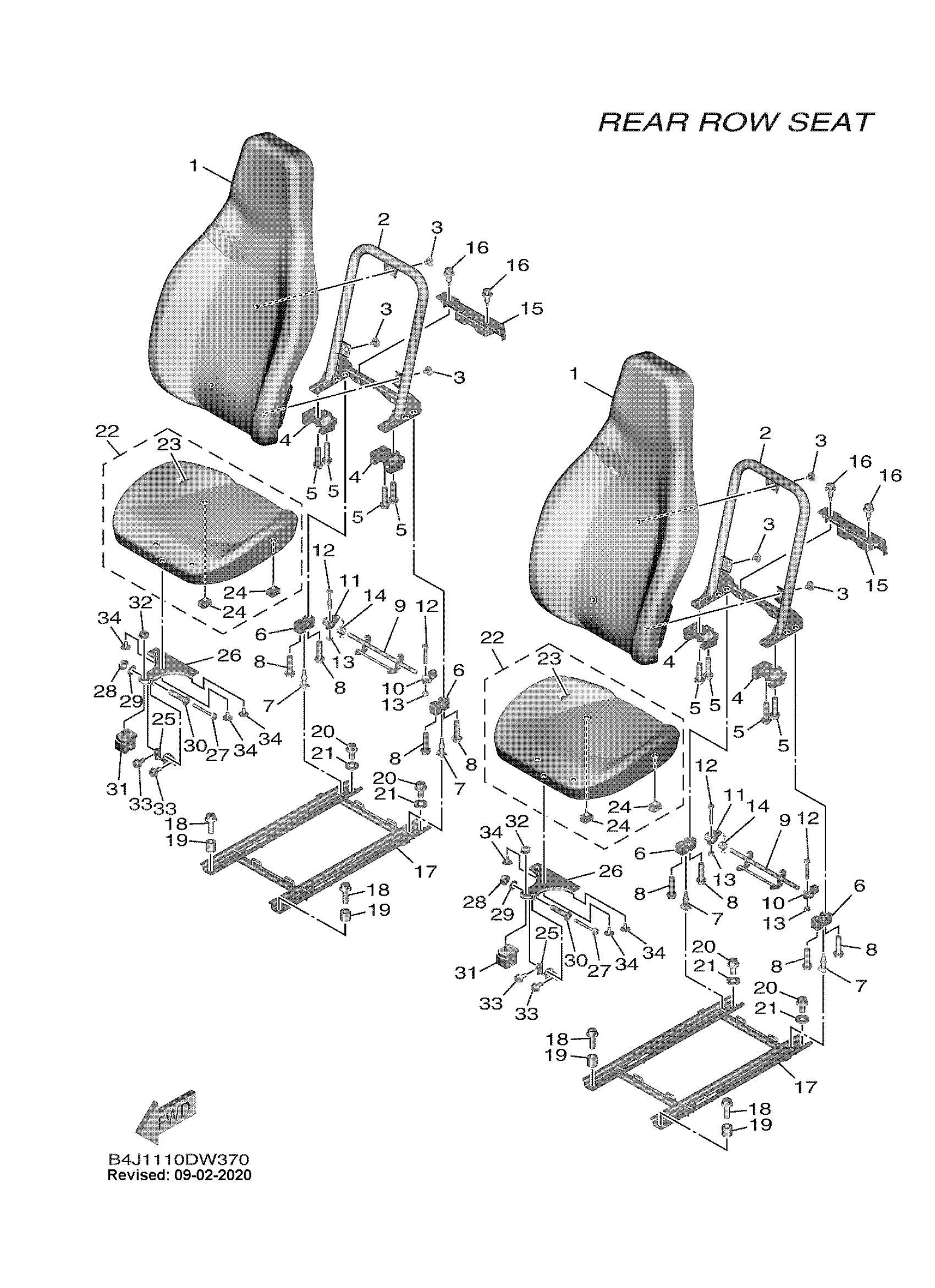

Yamaha YXF10WPZMG (WOLVERINE RMAX 4 SE) B4J1 2021 SEAT 3 Diagram
#
1
SEAT BACK ASSY
B4J-F4790-01-00
$826.99
2
FRAME, SEAT 3
BG4-F473Y-01-00
$63.99
3
BOLT,HEX. SOCKET BUTTON
90111-06180-00
$2.02
4
SLIDER
BG4-F386R-01-00
$7.49
5
BOLT, FLANGE
95022-08025-00
$8.49
6
DAMPER, LOCATING 1
BG4-F1778-10-00
$101.99
7
DAMPER,SEAT
BAR-F4723-01-00
$1.16
8
BOLT, FLANGE
95022-08030-00
$3.88
9
LATCH ASY
BG4-K7180-01-00
$23.99
10
CAM, 1
BG4-F2231-00-00
$181.99
11
CAM, 2
BG4-F2232-00-00
$174.99
12
BOLT
97022-05030-00
$1.12
13
NUT, HEXAGON (663)
95380-05600-00
$8.49
14
SEAT, SPRING
BG4-F4424-00-00
$8.49
15
COVER, HANDLE UPPE
BG4-F6143-01-00
$199.99
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
SEAT RAIL ASSY 1
BG4-F110B-00-00
Unavailable
18
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
19
COLLAR (437)
90387-08258-00
Unavailable
20
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
21
WASHER, PLATE
90201-08048-00
Unavailable
22
SEAT ASSY
B4J-F4700-00-00
Unavailable
23
COVER, SEAT
B4J-F4731-00-00
Unavailable
24
DAMPER 1
BG4-F221F-00-00
Unavailable
25
BRACKET, HINGE
BG4-F114B-00-00
Unavailable
26
HINGE,SEAT
BG4-F4726-00-00
Unavailable
27
BOLT, FLANGE
95817-06050-00
Unavailable
28
NUT, SELF-LOCKING
95617-06100-00
Unavailable
29
WASHER, PLATE
90201-06557-00
Unavailable
30
COLLAR
90387-068S4-00
Unavailable
31
RUBBER, DAMPING
BG4-F5915-01-00
Unavailable
32
NUT, S/L FLANGE
95607-05200-00
Unavailable
33
BLOT, FLANGE DEEP RECESS
95D32-06012-00
Unavailable
34
BOLT,HEX. SOCKET BUTTON
90111-06180-00
$2.02
