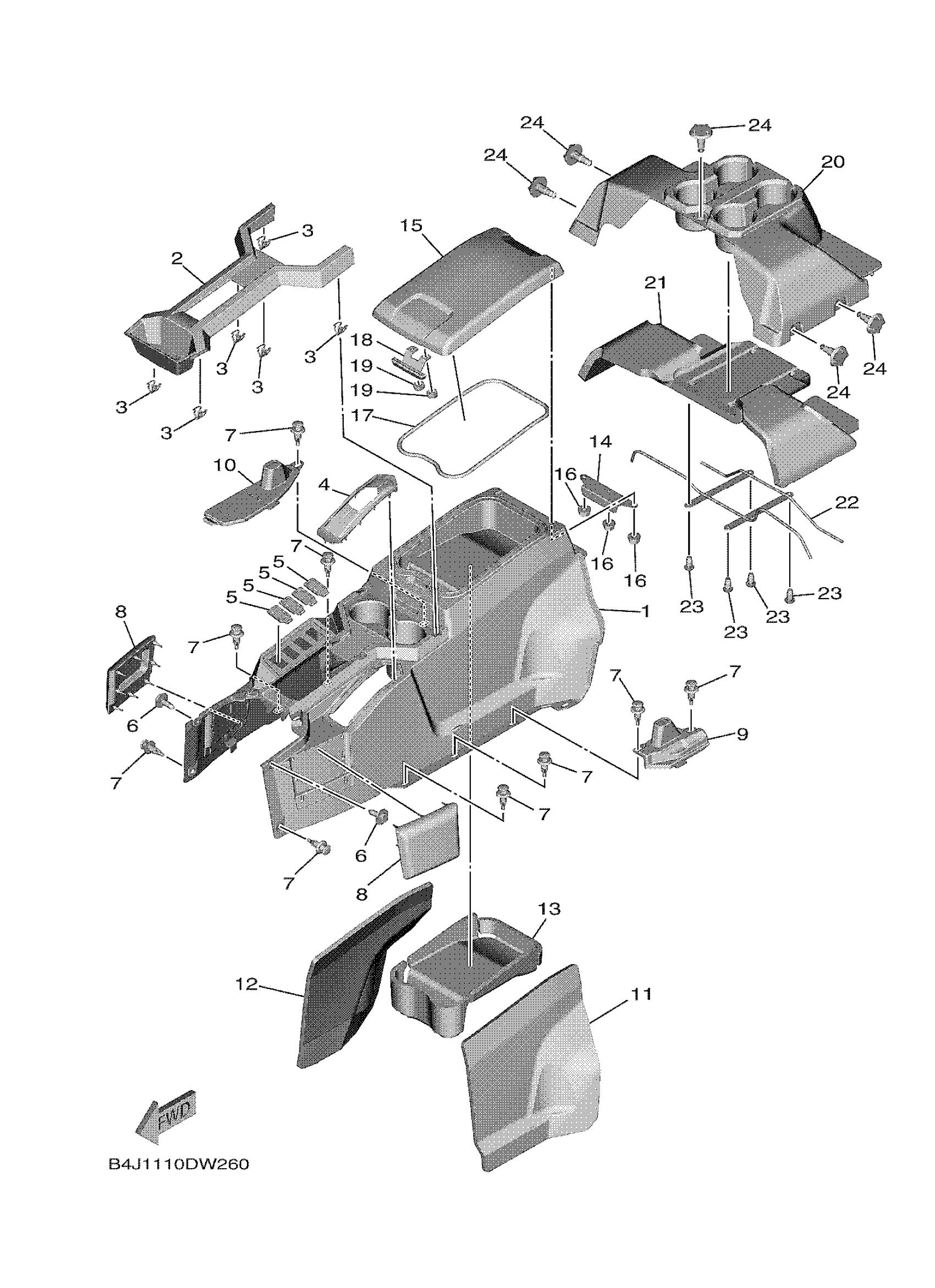

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 SIDE COVER 3 Diagram

#

Description
Price

1

COVER 1

B4J-F8219-01-00

Unavailable

2

TOP COVER COMP.

B4J-F171C-11-00

$101.99

3

CLIP

90468-040A0-00

$8.49

4

COVER,HANDLE LEVER

B4J-F6372-01-00

$8.49

5

PLUG, HOLE

BG4-F312G-00-00

$1.64

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

8

PAD 1

B4J-K7151-02-00

$33.99

9

PLATE, RUBBER 4

BG4-F8499-00-00

$7.49

10

PLATE, RUBBER 3

BG4-F8485-00-00

$13.49

11

INSU. , 2

B4J-H272M-00-00

$25.99

12

INSULATOR, 1

B4J-H272L-00-00

$23.99

13

INSULATOR 3

B4J-F172S-00-00

$22.99

14

BRACKET, HINGE

B4J-F114B-00-00

$3.08

15

LID 2

B4J-F177J-01-00

$89.99

16

NUT, U FLANGE

95604-06200-00

Unavailable

17

SEAL 1

B4J-F1732-00-00

Unavailable

18

LATCH

B4J-F389E-00-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

Unavailable

20

COVER, REAR

BG4-F2866-01-00

Unavailable

21

INSULATOR, SIDE CO

B4J-F174A-00-00

Unavailable

22

STAY, SIDE COVER 1

B4J-F172E-00-00

Unavailable

23

TAPPING SCREW

90169-06802-00

Unavailable

24

RIVET

5UG-F3483-00-00

Unavailable
