Description

Price

1

SEAT BACK ASSY

B4J-F4790-11-00

$364.99

2

SEAT ASSY 2

B4J-K8420-10-00

$206.99

3

COVER, SEAT BACK

B4J-F4791-10-00

$321.99

4

FRAME, SEAT 1

B4J-F473C-02-00

$156.99

5

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

6

GROMMET

1XD-F4742-00-00

$3.69

7

ADJUSTER ASSY

B4J-F7270-01-00

$61.99

8

ADJUSTER ASSY

B4J-F7260-01-00

$46.99

9

NUT, SELF-LOCKING

95602-08200-00

$3.20

10

BOLT, FLANGE

95817-08012-00

$5.49

11

SEAT BACK ASSY

B4J-F4790-11-00

$364.99

12

SEAT ASSY 2

B4J-K8420-10-00

$206.99

13

COVER, SEAT BACK

B4J-F4791-10-00

$321.99

14

FRAME, SEAT 2

B4J-F473D-02-00

$156.99

15

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

16

GROMMET

1XD-F4742-00-00

$3.69

17

BOLT, FLANGE

95817-08012-00

$5.49

18

COVER

B4J-F117F-00-00

Unavailable

19

RIVET, BLIND(J50)

90267-49152-00

Unavailable

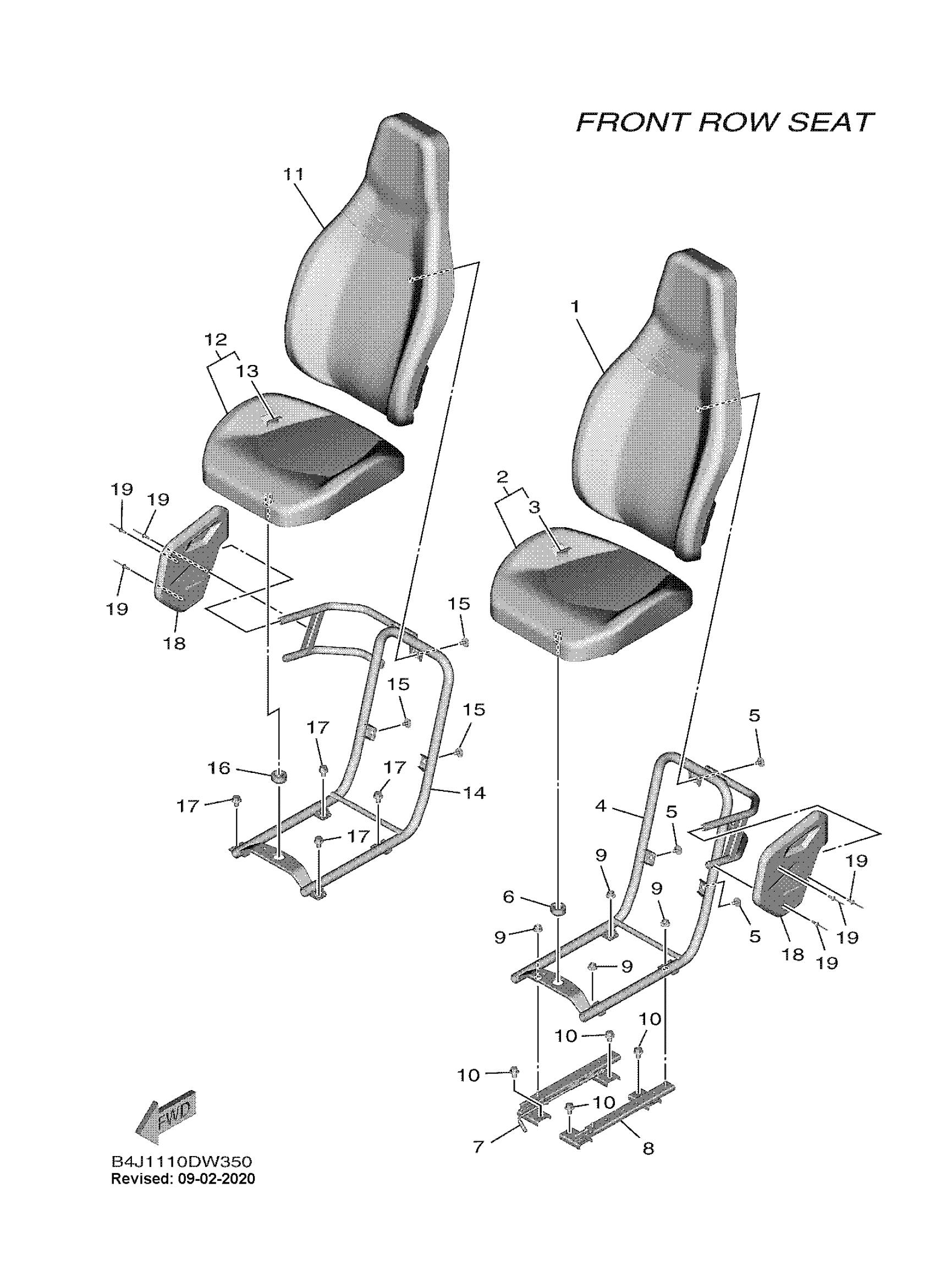

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 SEAT Diagram

SEAT BACK ASSY

SEAT ASSY 2

COVER, SEAT BACK

FRAME, SEAT 1

BOLT,HEX. SOCKET BUTTON

GROMMET

ADJUSTER ASSY

ADJUSTER ASSY

NUT, SELF-LOCKING

BOLT, FLANGE

SEAT BACK ASSY

SEAT ASSY 2

COVER, SEAT BACK

FRAME, SEAT 2

BOLT,HEX. SOCKET BUTTON

GROMMET

BOLT, FLANGE

COVER

RIVET, BLIND(J50)
