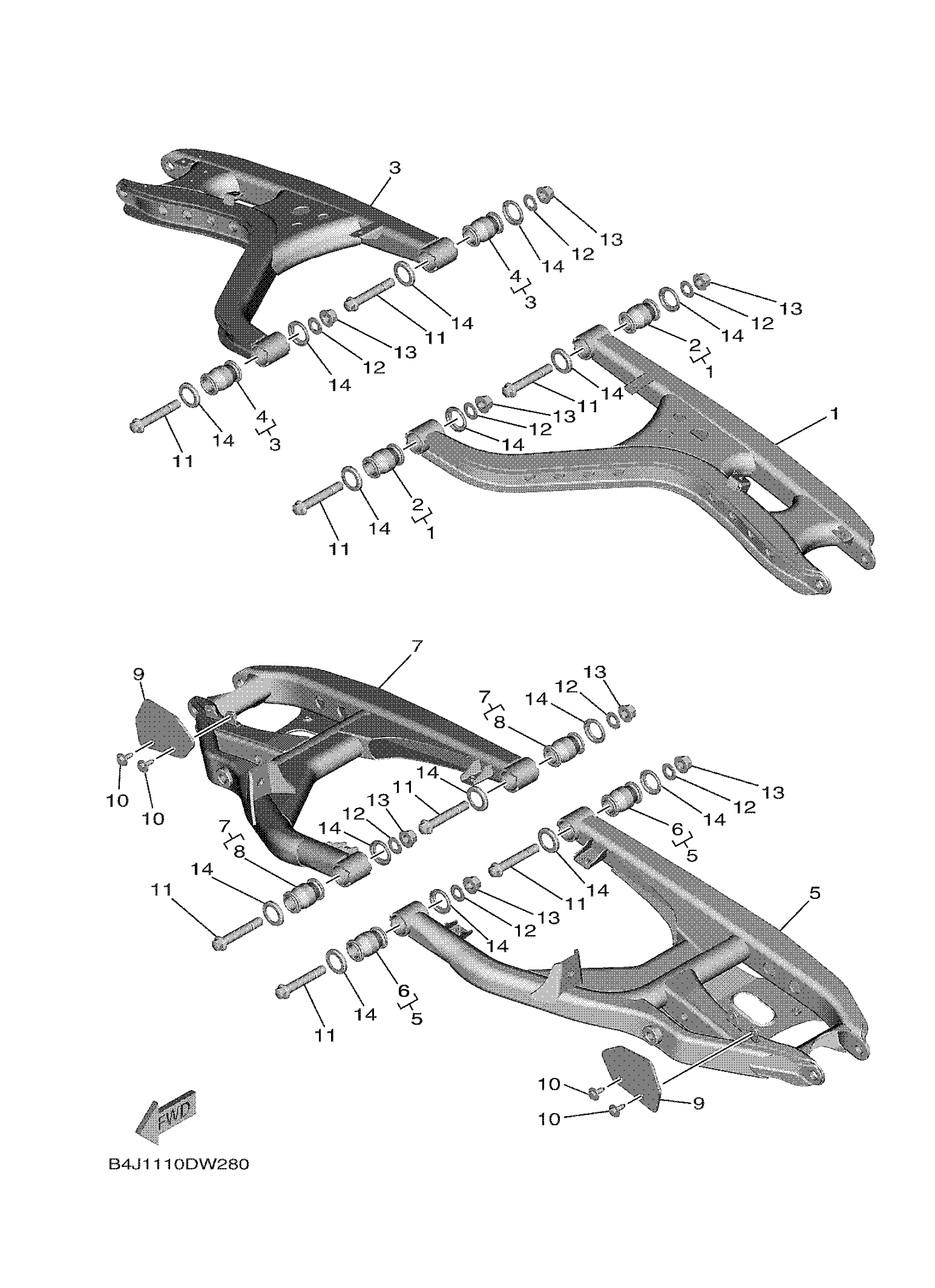

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

B4J-F2104-02-00

$113.99

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. UPR. ARM COMP.

B4J-F2105-02-00

$113.99

4

BUSH

B4J-F3526-01-00

Unavailable

5

RR. LWR. ARM COMP.

B4J-F2106-03-00

Unavailable

6

BUSH

B4J-F3526-01-00

Unavailable

7

RR. LWR. ARM COMP.

B4J-F2107-03-00

$135.99

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-12095-00

$9.49

12

WASHER, PLATE

90201-12045-00

$5.60

13

NUT, SELF-LOCKING

90185-12002-00

$12.49

14

COVER, THRUST 1

B4J-F3517-00-00

$0.96
