- YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021
FRONT SUSPENSION WHEEL

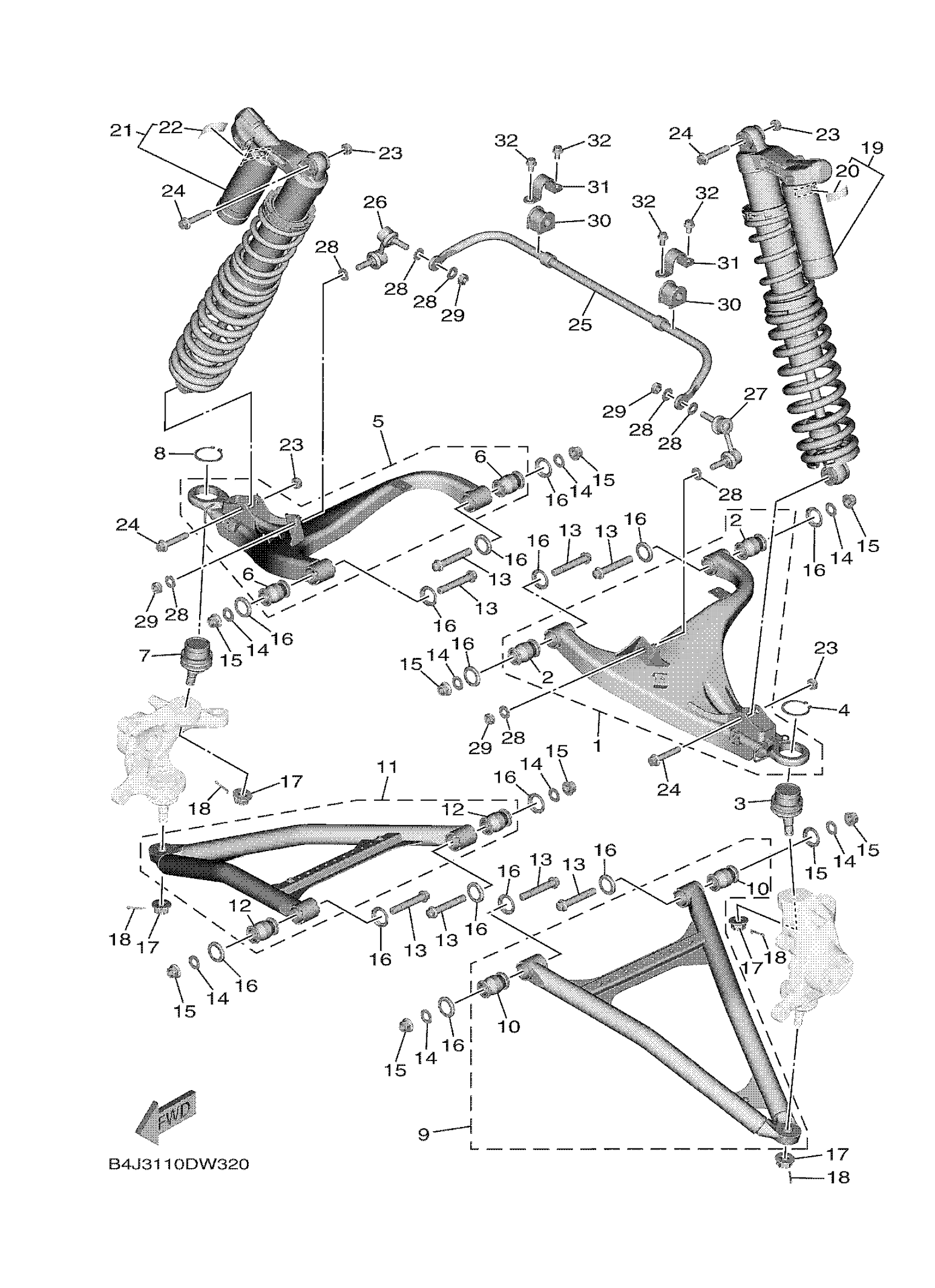

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT UPPER ARM CO
B4J-F3540-02-00
Unavailable
2
BUSH
B4J-F3526-01-00
Unavailable
3
BALL JOINT 2
2HC-23579-00-00
$96.99
4
CIRCLIP
93410-42096-00
$2.55
5
FRONT UPPER ARM CO
B4J-F3550-02-00
$198.99
6
BUSH
B4J-F3526-01-00
Unavailable
7
BALL JOINT 2
2HC-23579-00-00
$96.99
8
CIRCLIP
93410-42096-00
$2.55
9
FRONT LOWER ARM CO
B4J-F3570-01-00
Unavailable
10
BUSH
B4J-F3526-01-00
Unavailable
11
FRONT LOWER ARM CO
B4J-F3580-01-00
$122.99
12
BUSH
B4J-F3526-01-00
Unavailable
13
BOLT, FLANGE
90105-12095-00
$9.49
14
WASHER, PLATE
90201-12045-00
$5.60
15
NUT, SELF-LOCKING
90185-12002-00
$12.49
16
COVER, THRUST 1
B4J-F3517-00-00
Unavailable
17
NUT, CASTLE
90171-14005-00
Unavailable
18
PIN, COTTER
91401-30025-00
Unavailable
19
FRONT SUSPENSION A
B4J-F3750-02-00
Unavailable
20
LABEL, WARNING
B4M-F2259-00-00
Unavailable
21
FRONT SUSPENSION A
B4J-F3740-02-00
Unavailable
22
LABEL, WARNING
B4M-F2259-00-00
Unavailable
23
NUT, SELF-LOCKING
90185-10817-00
Unavailable
24
BOLT, FLANGE
90105-10199-00
Unavailable
25
BAR, STABILIZER FR
B4J-F386E-00-00
Unavailable
26
JOINT, STABILIZER 1
16B-2385L-10-00
Unavailable
27
JOINT, STABILIZER 2
16B-2385M-10-00
Unavailable
28
WASHER, PLATE
90201-10035-00
Unavailable
29
NUT, SELF-LOCKING
90185-10817-00
Unavailable
30
BUSH
B4J-F376B-00-00
Unavailable
31
BRKT., STABILIZER
BG4-F386B-00-00
Unavailable
32
BOLT, FLANGE
95817-08014-00
Unavailable
