- YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021
FRONT FENDER 2

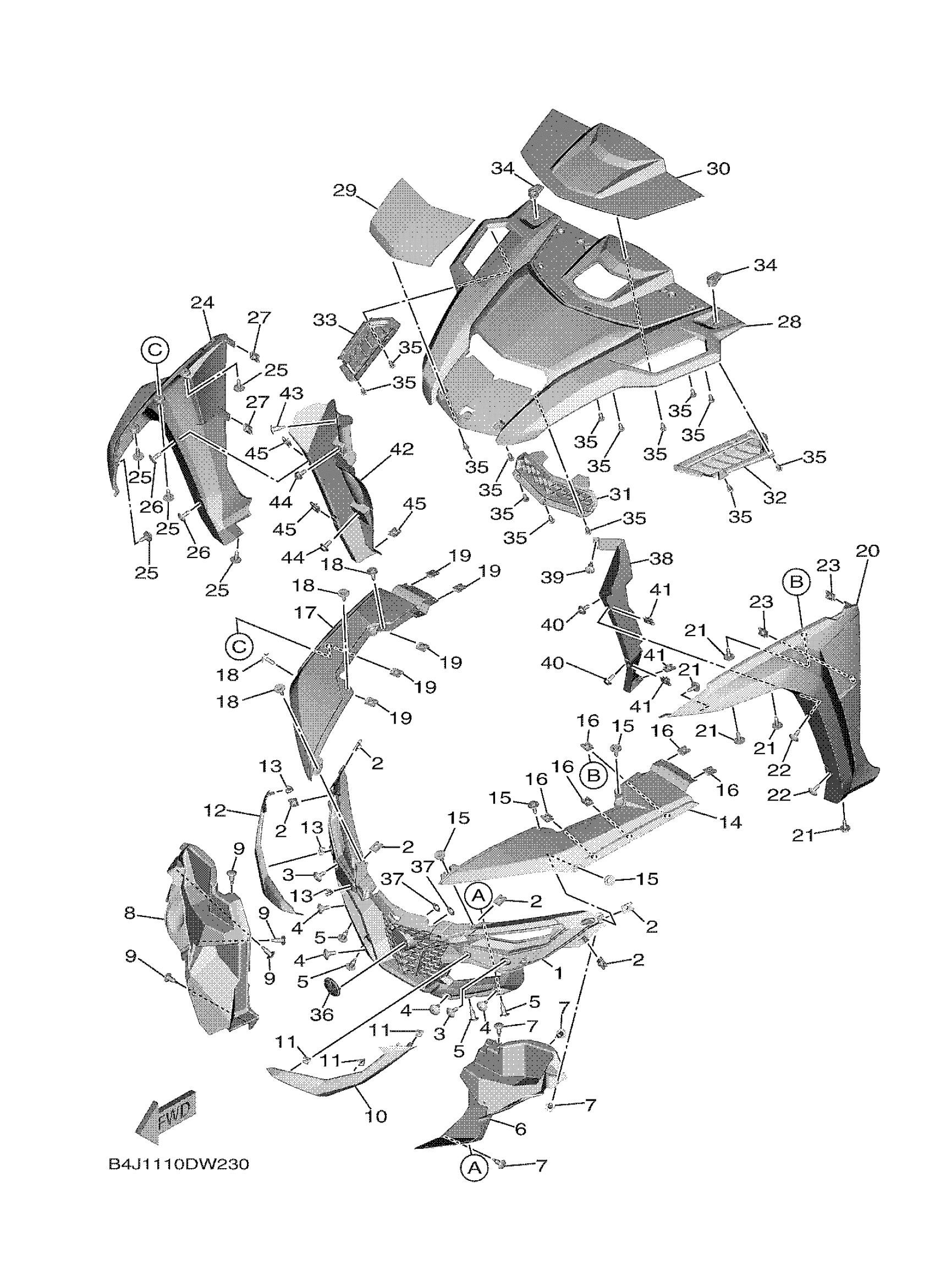

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 FRONT FENDER 2 Diagram
#
Description
Price
3
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
5
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
COVER 2
B4J-E246E-02-00
Unavailable
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
PANEL, FRONT FENDE
B4J-K819M-10-00
Unavailable
20
FRONT FENDER COMP.
B4J-F1510-10-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
24
FRONT FENDER COMP.
B4J-F1501-10-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
28
HOOD ASSY 3
B4J-F197A-11-00
Unavailable
29
HOOD 1
B4J-F835E-00-00
Unavailable
30
HOOD 2
B4J-F835F-01-00
Unavailable
31
GRILLE
B4J-K715N-01-00
Unavailable
32
VENT, FRONT 1
B4J-K715H-00-00
Unavailable
33
VENT, FRONT 2
B4J-K715J-00-00
Unavailable
34
LEVER, LOCK
1XD-2175K-10-00
Unavailable
35
TAPPING SCREW
90169-06802-00
Unavailable
36
EMBLEM, YAMAHA
B4J-F153E-00-00
Unavailable
37
NUT, SPRING
90183-06071-00
Unavailable
38
GUARD, MUD
B4J-F152R-00-00
Unavailable
39
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
40
BOLT, WITH WASHER
90119-06242-00
Unavailable
42
GUARD, MUD
B4J-F1629-00-00
Unavailable
43
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
44
BOLT, WITH WASHER
90119-06242-00
Unavailable
