- YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021
FRONT FENDER 1

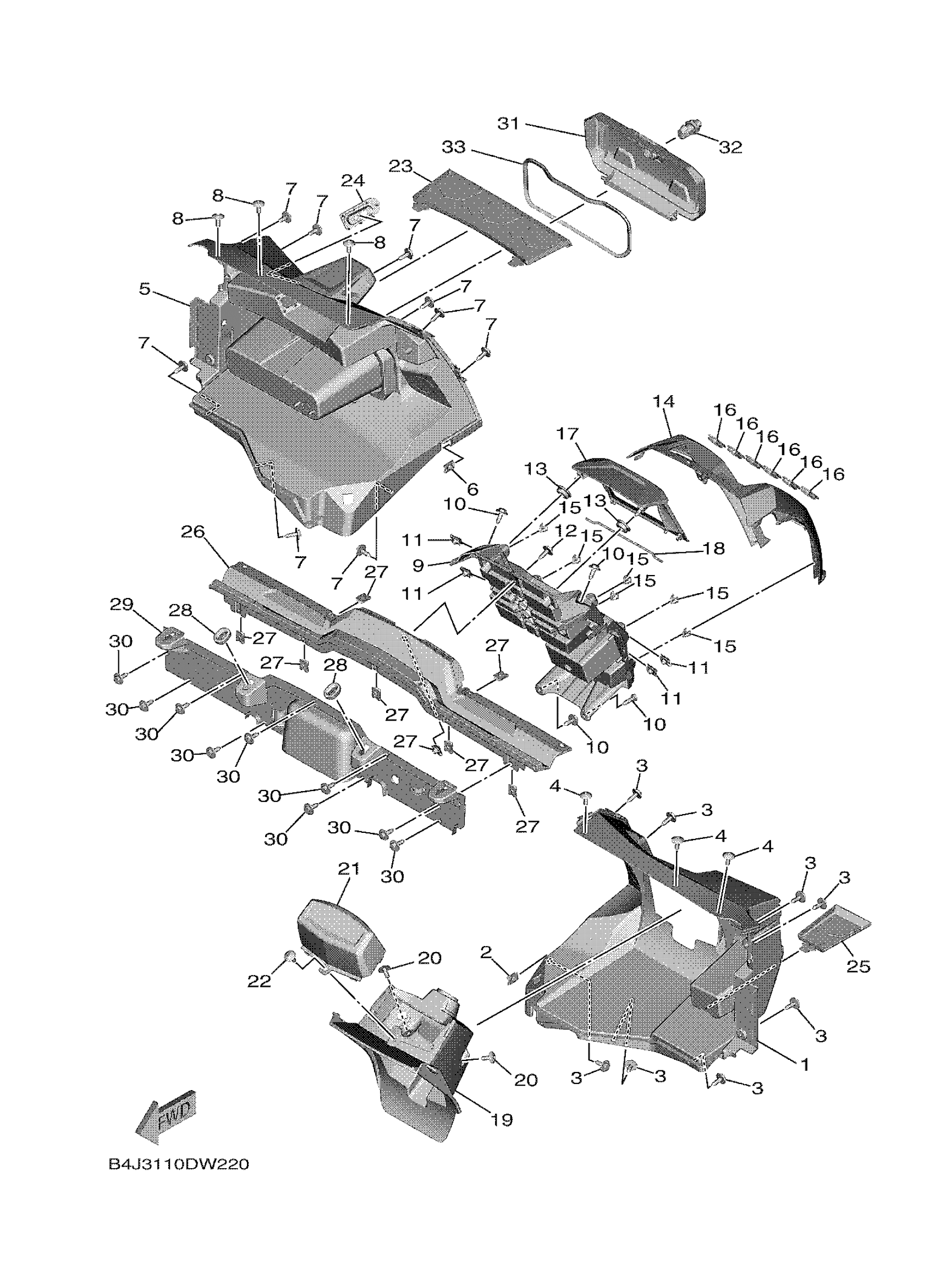

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 FRONT FENDER 1 Diagram
#
1
PANEL, DASH 1
B4J-K7781-00-00
Unavailable
2
NUT, SPRING
90183-062A1-00
$1.96
3
BOLT, WITH WASHER
90119-06226-00
$8.49
4
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
5
PANEL, DASH 2
B4J-K7782-00-00
$59.99
6
NUT, SPRING
90183-062A1-00
$1.96
7
BOLT, WITH WASHER
90119-06226-00
$8.49
8
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
9
PANEL, DASH 3
B4J-K7783-00-00
$31.99
10
BOLT, WITH WASHER
90119-06226-00
$8.49
11
NUT, SPRING
90183-062A1-00
$1.96
12
BOLT, WITH WASHER
90119-06226-00
$8.49
13
GROMMET(4DN)
90480-01558-00
$4.19
14
TRIM, INSTRUMENT P
B4J-K7738-11-00
$126.99
15
CLIP
90468-040A0-00
$8.49
16
PLUG, HOLE
BG4-F312G-00-00
Unavailable
17
LID COVER COMP.
B4J-F17P0-11-00
Unavailable
18
PIN, HINGE
B4J-F177K-00-00
Unavailable
19
COVER, ADJUST
B4J-F387G-00-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
21
COVER, METER
B4J-H3559-00-00
Unavailable
22
BOLT
90109-06334-00
Unavailable
23
MAT 1
B4J-F7483-00-00
Unavailable
24
PLATE, RUBBER 1
B4J-F8483-00-00
Unavailable
25
MAT 2
B4J-F7484-00-00
Unavailable
26
COVER, FRONT
B4J-F2865-00-00
Unavailable
27
NUT, SPRING
90183-062A1-00
$1.96
28
GROMMET
90480-01822-00
Unavailable
29
PANEL, ACCESSORY
B4J-F839R-00-00
Unavailable
30
BOLT, WITH WASHER
90119-06226-00
$8.49
31
LID
B4J-F160F-00-00
Unavailable
32
LATCH ASSY 1
B4J-F17N0-01-00
Unavailable
33
SEAL 1
B4J-F1575-00-00
Unavailable
