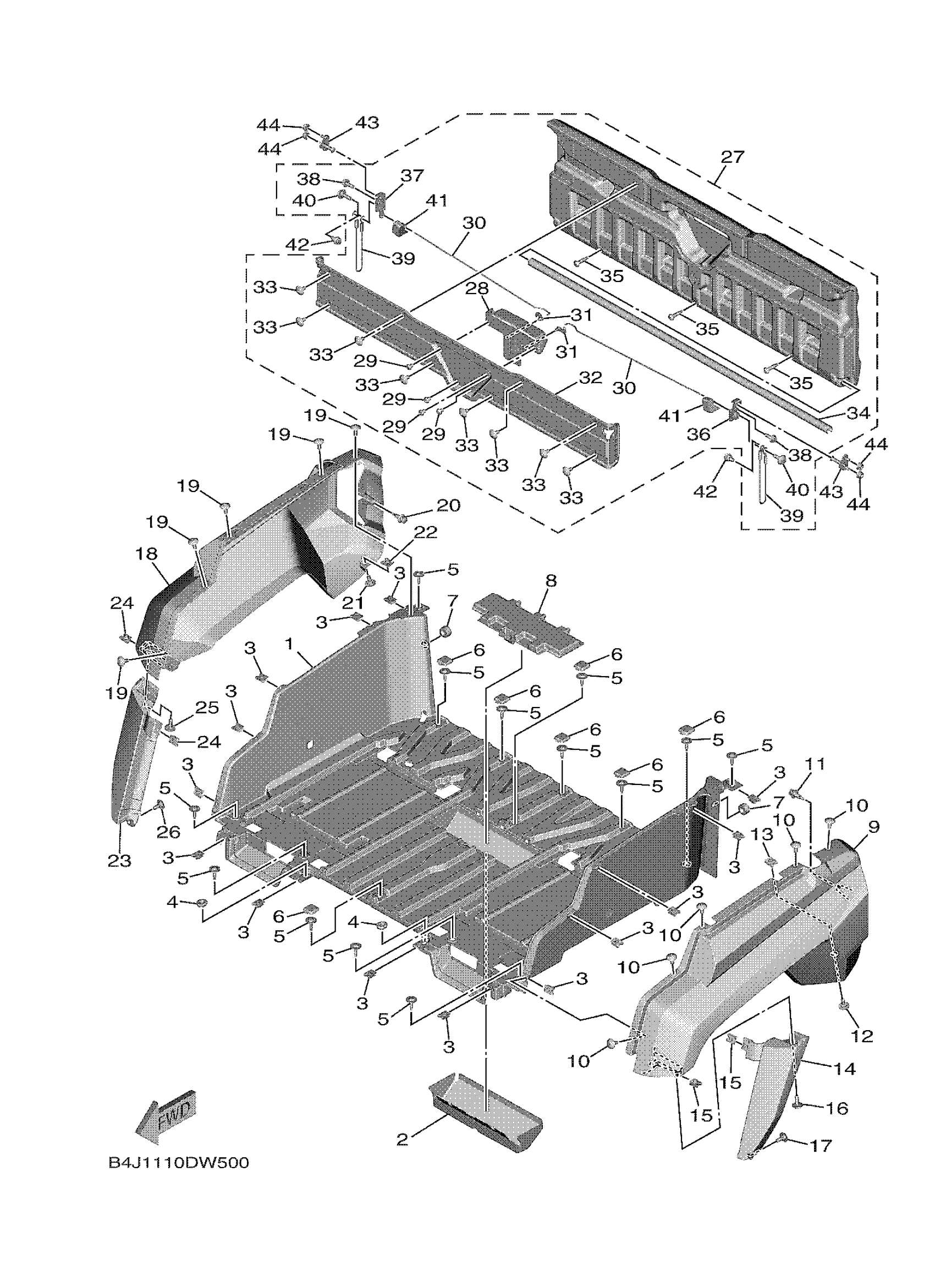

Yamaha YXF10WPLML (WOLVERINE RMAX 4 LE) B4J3 2021 CARRIER Diagram
#
1
BOX,TOOL
BG4-F1171-01-00
Unavailable
2
INSU., 1
B4J-H339E-00-00
$37.99
3
NUT, SPRING
90183-062A1-00
$1.96
4
GROMMET(4DN)
90480-01558-00
$4.19
5
BOLT
90109-068A5-00
$7.49
6
CAP
2MB-F143A-00-00
$1.81
7
DAMPER, SEAT
4XE-F4747-00-00
$30.99
8
BELT, BODY HOLDER
BG4-F471S-00-00
$8.49
9
PANEL, REAR FENDER
B4J-K8193-00-00
$242.99
10
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
12
BOLT
90109-06334-00
$2.60
13
NUT, SPRING
90183-062A1-00
$1.96
14
GUARD COMP.
B4J-F840K-00-00
$95.99
15
NUT, SPRING
90183-062A1-00
$1.96
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
17
BOLT
90109-06334-00
$2.60
18
PANEL, REAR FENDER
B4J-K8194-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
21
BOLT
90109-06334-00
$2.60
22
NUT, SPRING
90183-062A1-00
$1.96
23
GUARD COMP. 2
B4J-F840M-00-00
Unavailable
24
NUT, SPRING
90183-062A1-00
$1.96
25
BOLT, WITH WASHER
90119-06226-00
Unavailable
26
BOLT
90109-06334-00
$2.60
27
REAR STORAGE LID C
BAR-K810N-10-00
Unavailable
28
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
29
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
30
ROD
BG4-F8478-00-00
Unavailable
31
CLIP, CABLE
BG4-F2805-01-00
Unavailable
32
COVER
BG4-F331G-00-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
34
HINGE 2
1XD-F463F-00-00
Unavailable
35
. SCREW
90149-06846-00
Unavailable
36
LOCK ASSY
BG4-F16A0-00-00
Unavailable
37
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
38
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
39
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
40
BOLT
90109-06171-00
Unavailable
41
DAMPER 2
BG4-F8416-10-00
Unavailable
42
BOLT
90109-06212-00
Unavailable
43
BOLT, STUD
BG4-F4441-00-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
