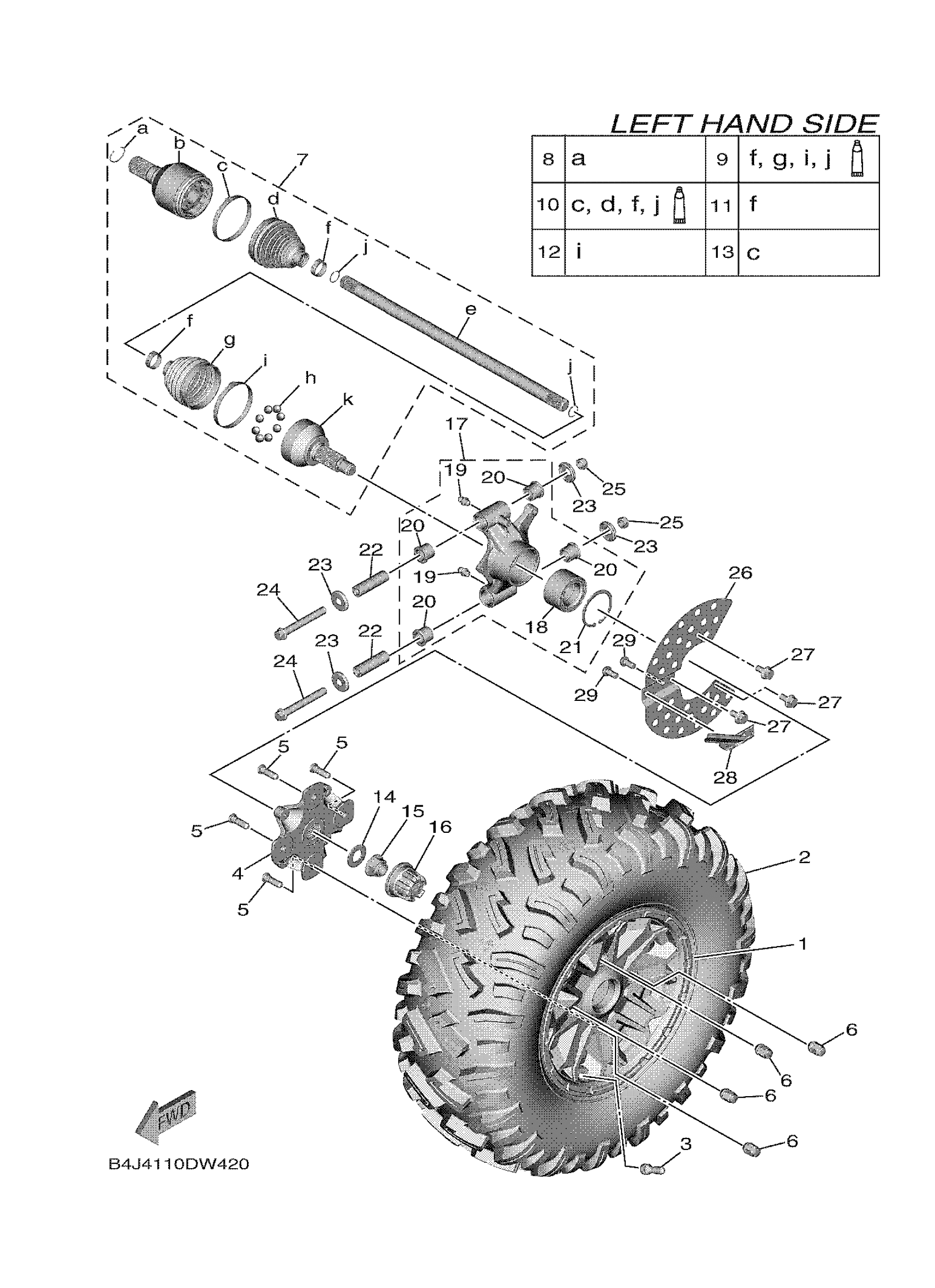

Yamaha YXF10WPAMS (WOLVERINE RMAX 4) B4J4 2021 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

B4J-F5307-10-00

$335.99

2

TIRE (29X11.00-14 8PR SG-797)

94111-14811-00

Unavailable

3

VALVE, RIM

93900-00840-00

$1.96

4

HUB, FRONT

B4J-F5111-02-00

$131.99

5

BOLT, SERRATION

90114-12005-00

$2.97

6

NUT, CROWN

90176-12801-00

Unavailable

7

REAR DRIVE SHAFT ASSY

B4J-F531H-03-00

$340.99

8

CLIP, SPRING

B4J-F536E-00-00

Unavailable

9

BOOT SET (BALL JOI

B4J-F530X-00-00

$88.99

10

BOOT SET(DOUBLE OF

B4J-F530Y-00-00

$169.99

11

BAND

B4J-F5719-00-00

$10.49

12

BAND

B4J-F639A-00-00

$5.60

13

BAND

B4J-F6293-00-00

$5.60

14

WASHER, PLATE

90201-25023-00

$10.49

15

NUT

90179-24006-00

$13.99

16

CAP, WHEEL

2HC-F512A-00-00

Unavailable

17

REAR KNUCKLE ASSY

B4J-F530F-00-00

Unavailable

18

BEARING

93305-00801-00

Unavailable

19

NIPPLE, GREASE

93700-06M03-00

Unavailable

20

BUSH, SOLID

90381-22001-00

Unavailable

21

CIRCLIP (70R)

93420-72065-00

Unavailable

22

COLLAR

90387-14025-00

Unavailable

23

COVER, THRUST 1

BYP-23517-00-00

Unavailable

24

BOLT, FLANGE

90105-14017-00

Unavailable

25

NUT, SELF-LOCKING

90185-14010-00

Unavailable

26

RING, WHEEL RR. 1

2HC-F534C-00-00

Unavailable

27

BOLT, FLANGE

95817-06012-00

Unavailable

28

PLATE, GUIDE 1

2HC-F2341-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable
