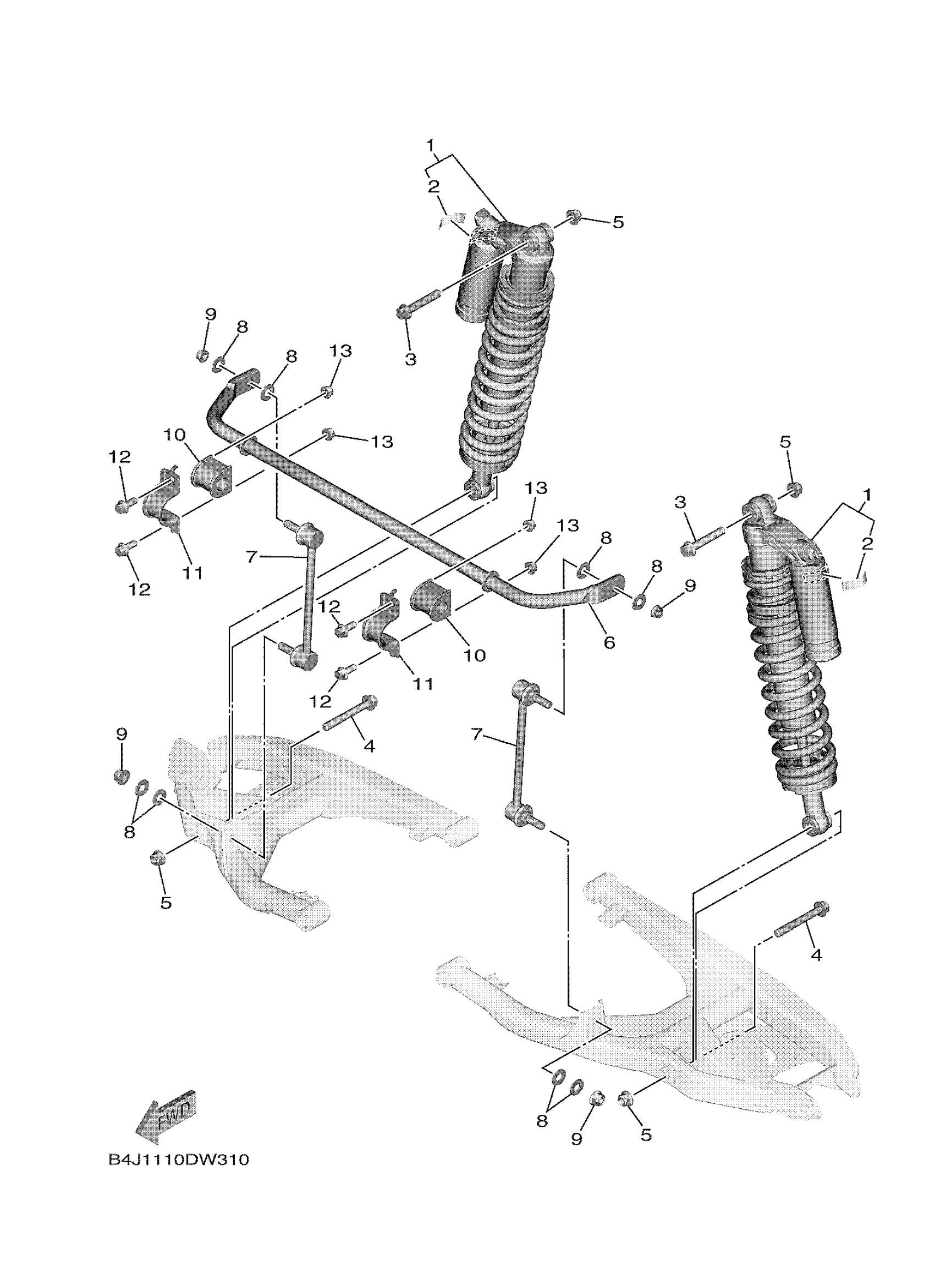

Yamaha YXF10WPAMS (WOLVERINE RMAX 4) B4J4 2021 REAR SUSPENSION Diagram

#

Description
Price

1

RR. SHOCK ABSORBER

B4J-F220T-02-00

$807.99

2

LABEL, WARNING

B4M-F2259-00-00

$1.22

3

BOLT, FLANGE

90105-12050-00

$11.49

4

BOLT, FLANGE

95812-12090-00

$8.49

5

NUT, SELF-LOCKING

90185-12009-00

$8.49

6

BAR, STABILIZER

B4J-G7491-00-00

$123.99

7

JOINT, STABILIZER

B4J-F385L-01-00

$92.99

8

WASHER, PLATE

90201-12045-00

$5.60

9

NUT, SELF-LOCKING

90185-12002-00

$12.49

10

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

11

COVER, STABILIZER

1XD-F386H-00-00

$8.99

12

BOLT, FLANGE

90105-10489-00

$3.13

13

NUT, SELF-LOCKING

90185-10818-00

Unavailable
