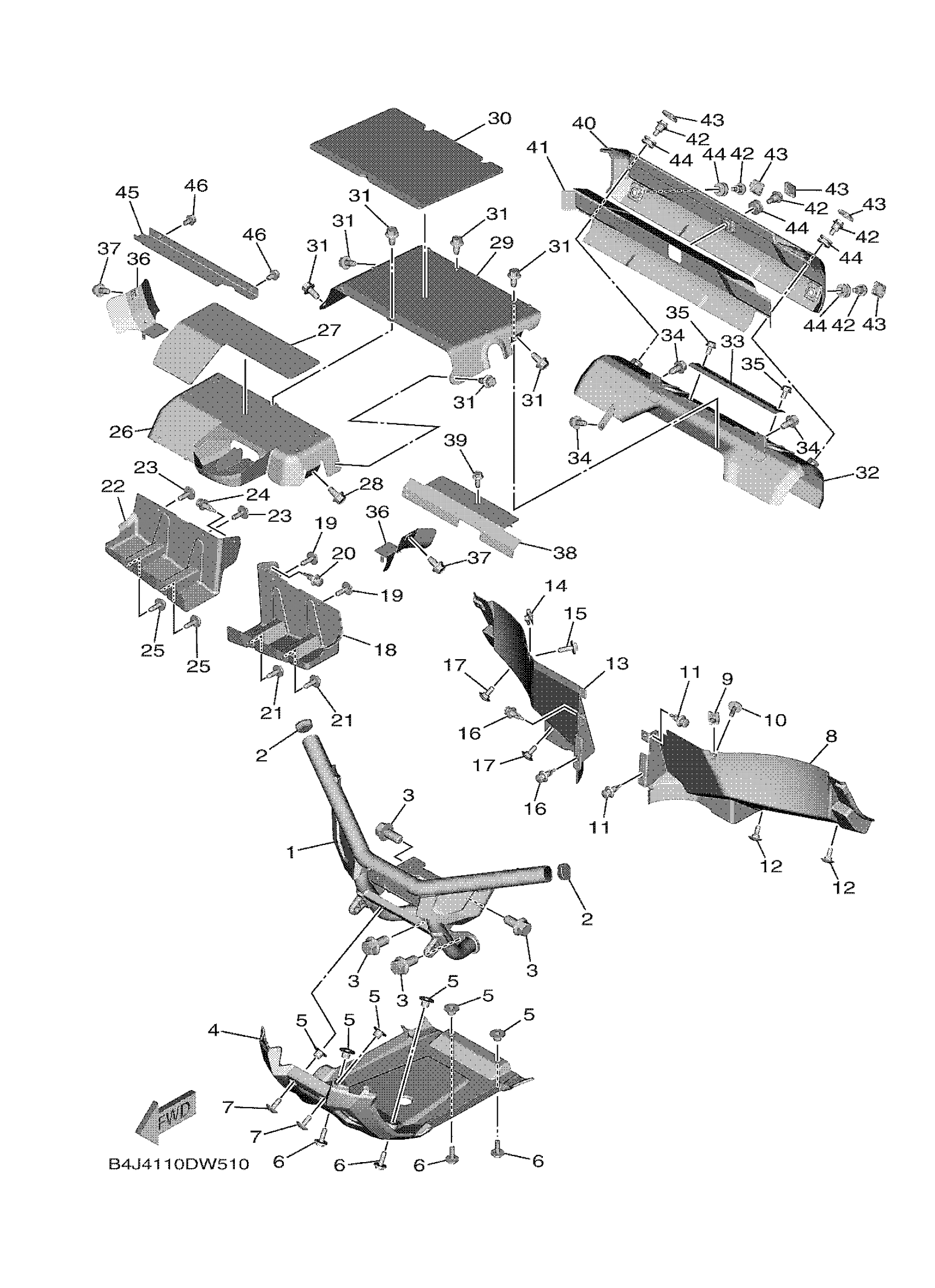

Yamaha YXF10WPAMS (WOLVERINE RMAX 4) B4J4 2021 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

B4J-F845N-12-00

$81.65

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$4.96

3

BOLT, FLANGE

95812-12025-00

$6.17

4

COVER, UNDER

B4J-F8385-01-00

$53.88

5

COLLAR (4N0)

90387-071E0-00

$5.73

6

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

GUARD 1

BG4-F2361-01-00

$15.26

9

NUT, SPRING

90183-062A1-00

$1.75

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

12

BOLT

90109-06334-00

$2.33

13

GUARD 2

BG4-F2362-01-00

$19.92

14

NUT, SPRING

90183-062A1-00

$1.75

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

BOLT

90109-06334-00

$2.33

18

MUD GUARD 1

BG4-F2327-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

21

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

22

MUD GUARD 2

BG4-F2328-00-00

Unavailable

23

BOLT, WITH WASHER

90119-06226-00

$2.12

24

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

25

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

26

INSULATOR, HEAT

B4J-F2898-04-00

Unavailable

27

DAMPER 1

B4J-F8415-00-00

Unavailable

28

BOLT, FLANGE

90105-08867-00

Unavailable

29

SHIELD, HEAT

B4J-F3892-02-00

Unavailable

30

DAMPER 3

B4J-F8425-00-00

Unavailable

31

BOLT, FLANGE

90105-08867-00

Unavailable

32

INSULATOR, MOUNTIN

B4J-F2891-01-00

Unavailable

33

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

34

BOLT, FLANGE

90105-08867-00

Unavailable

35

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

36

PROTECTOR 1

BAR-F2825-00-00

Unavailable

37

BOLT, FLANGE

90105-08867-00

Unavailable

38

PROTECTOR 1

B4J-F2825-02-00

Unavailable

39

BOLT, FLANGE

90105-06831-00

Unavailable

40

PROTECTOR, MUFFLER

B4J-F194H-03-00

Unavailable

41

SHEET, INSULATOR

B4J-HA7E0-00-00

Unavailable

42

BOLT

90109-06214-00

Unavailable

43

CAP

2MB-F143A-00-00

Unavailable

44

GROMMET

90480-12025-00

Unavailable

45

PROTECTOR 2

B4J-F834W-01-00

Unavailable

46

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable
