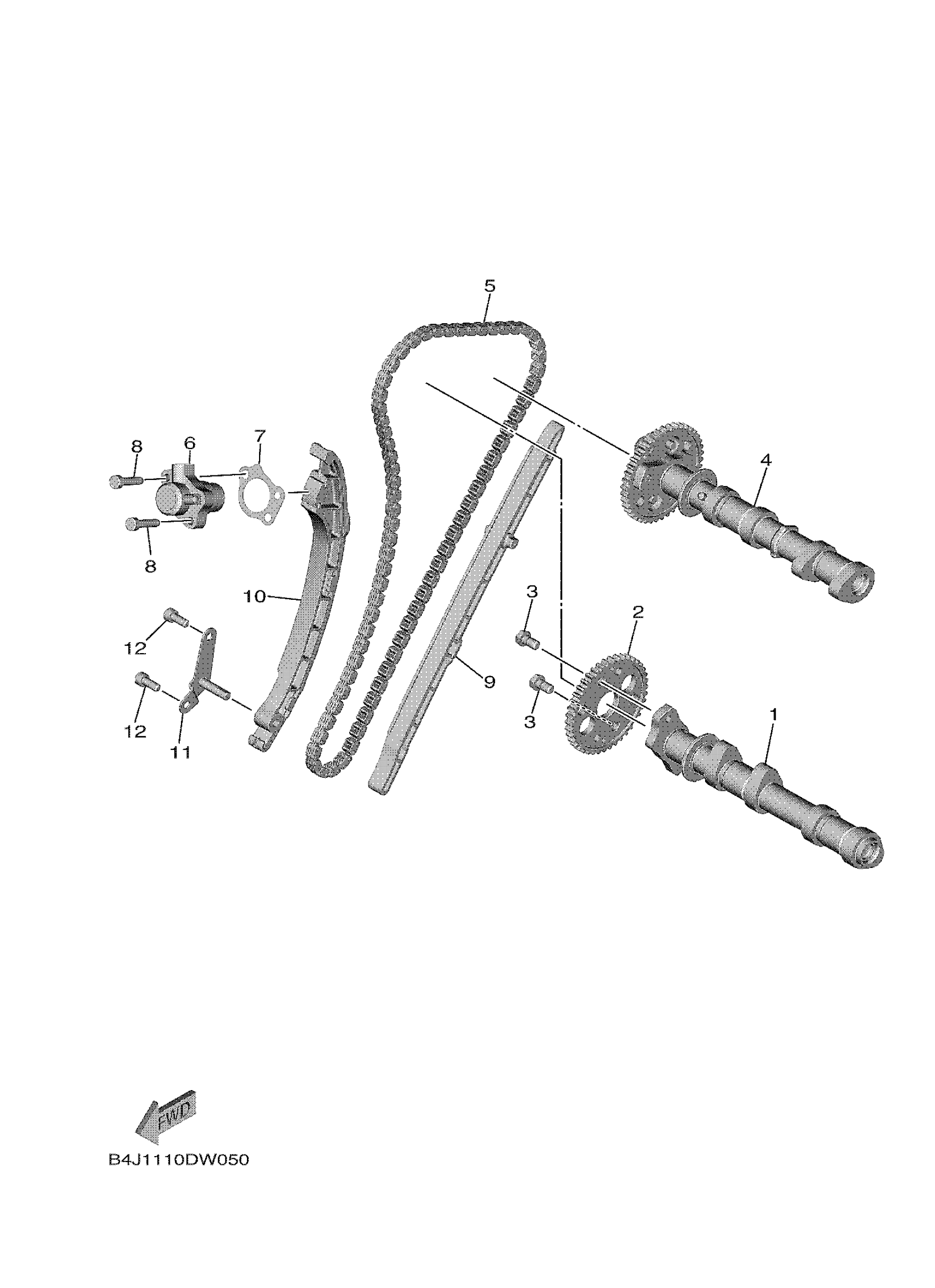

Yamaha YXF10WPAMS (WOLVERINE RMAX 4) B4J4 2021 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

B1R-E2170-00-00

$141.99

SPROCKET, CAM CHAI

B1R-E2176-00-00

$45.99

BOLT, FLANGE

90105-07006-00

$8.49

CAMSHAFT ASSY 2

B1R-E2180-00-00

$263.99

CHAIN (T098XRH2015-146P-M)

94591-76146-00

$47.99

TENSIONER ASSY, CAM CHAIN

B1R-12210-00-00

$172.99

GASKET, TENSIONER CASE

15B-12213-00-00

$10.99

BOLT,SOCKET

91317-06025-00

$5.60

GUIDE, STOPPER 1

B1R-12231-00-00

$16.99

GUIDE, STOPPER 3

B1R-12221-00-00

$69.99

PLATE, GUIDE STOPP

B1R-E2233-00-00

Unavailable

BOLT (33M)

91312-06014-00

$5.60
