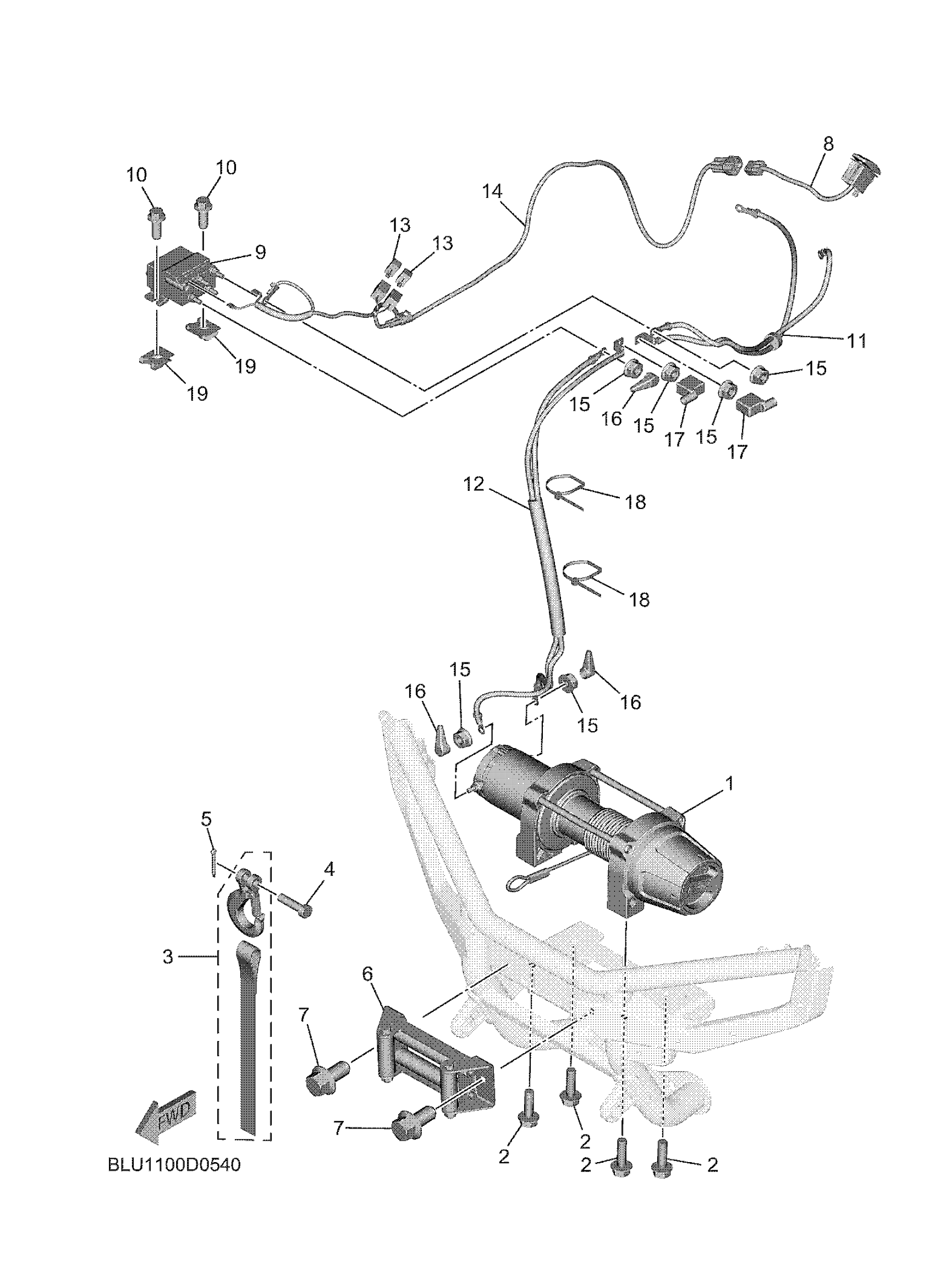

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 WINCH Diagram

#

Description
Price

1

WINCH

BAS-F845V-00-00

$604.99

2

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.60

3

HOOK

BAS-F8488-02-00

$44.99

4

PIN

BAS-F818A-00-00

$2.17

5

PIN COTTER

91490-30025-00

$3.99

6

ROLLER

BAS-F178G-03-00

$95.99

7

BOLT, FLANGE

95817-10020-00

$8.49

8

SWITCH ASSY

BKP-H259E-00-00

$116.99

9

CONTACTOR

BAS-H232W-00-00

$172.99

10

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

11

WIRE, INNER 1

B4J-F633K-01-00

$71.99

12

WIRE, INNER 2

B4J-F633L-02-00

$84.99

13

DIODE ASSY

4WA-81980-00-00

$29.99

14

WIRE HARNESS

BKP-H2105-00-00

$77.99

15

NUT, FLANGE

95702-06500-00

$2.39

16

PROTECTOR

BAS-F3472-00-00

Unavailable

17

COVER, LEAD WIRE

5LP-82119-00-00

Unavailable

18

CLAMP(JN6)

90464-40825-00

Unavailable

19

NUT, SPRING

90183-062A1-00

Unavailable
