- YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026
SIDE COVER 2

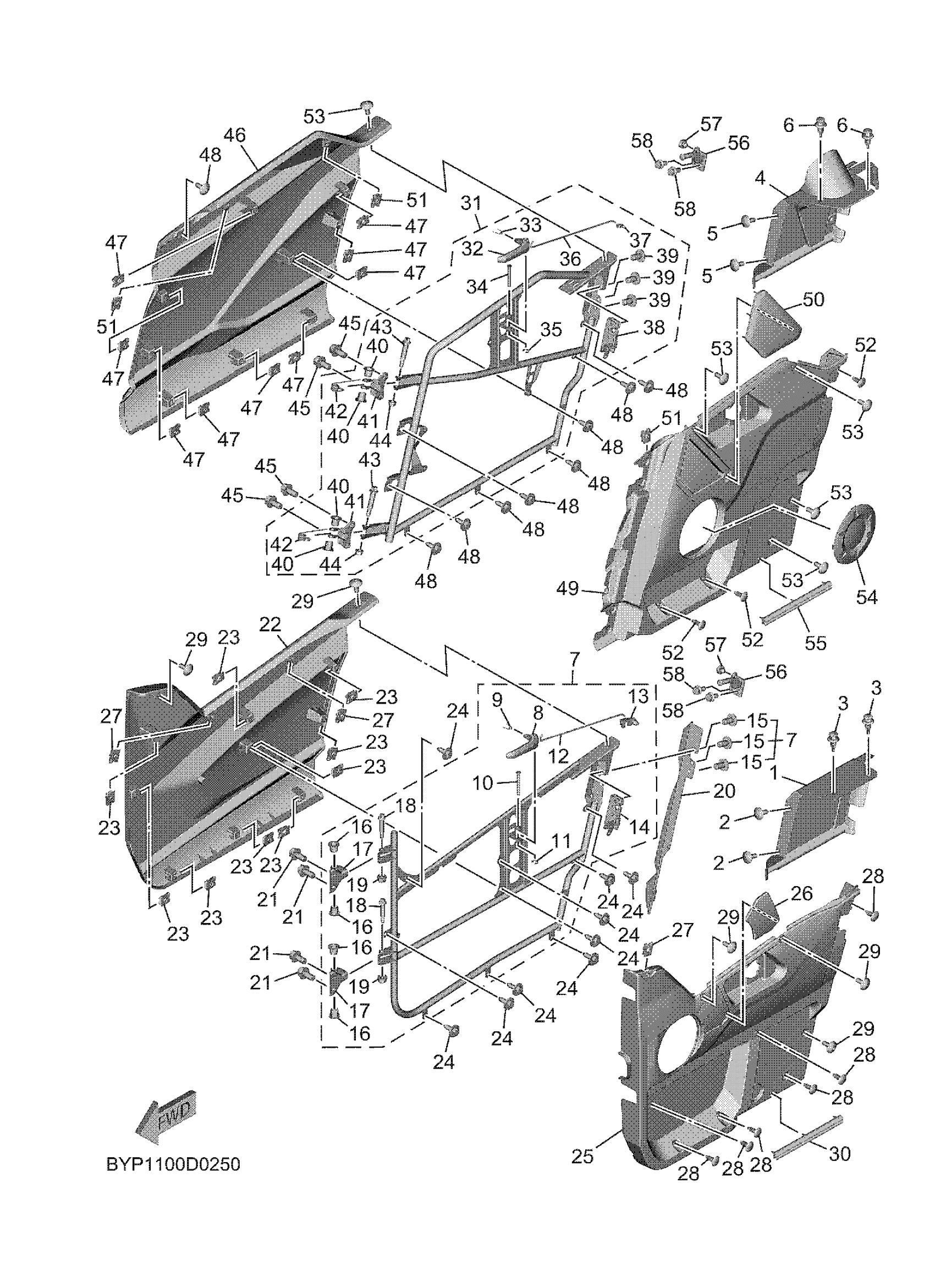

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 SIDE COVER 2 Diagram
#
1
COVER, SIDE 3
BYP-F1731-00-00
Unavailable
2
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
COVER, SIDE 3
B4J-F1731-00-00
$21.99
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
FF. DOOR COMP. RH
B4J-K8505-01-00
$220.99
8
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
9
SPRING
2HC-F1742-00-00
$2.96
10
. PIN
90249-05801-00
Unavailable
11
CIRCLIP (EU0)
99080-04600-00
Unavailable
12
ROD 2
B4J-F7248-00-00
$4.82
13
CLIP, CABLE
BG4-F2805-01-00
$2.17
14
LOCK ASSY 2
B4J-F16B0-02-00
$53.99
15
SCREW
90149-08805-00
$1.01
16
BUSH, SOLID
90381-08001-00
Unavailable
17
HINGE
B4J-F1796-01-00
Unavailable
18
BOLT
90109-068C9-00
Unavailable
19
NUT, U FLANGE
95604-06200-00
Unavailable
20
PLATE 2
B4J-F191C-00-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
SIDE COVER COMP. 2
B4J-F17F0-20-00
Unavailable
23
NUT, SPRING
90183-062A1-00
Unavailable
24
BOLT, WITH WASHER
90119-06226-00
Unavailable
25
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
26
PROTECTOR 1
B4J-K811V-01-00
Unavailable
27
NUT, SPRING
90183-062A1-00
Unavailable
28
RIVET(8AB)
90269-05073-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
30
SEAL 2
B4J-F1735-00-00
Unavailable
31
RR. DOOR COMP. RH
BYP-K8508-00-00
Unavailable
32
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
33
SPRING
2HC-F1742-00-00
$2.96
34
. PIN
90249-05801-00
Unavailable
35
CIRCLIP (EU0)
99080-04600-00
Unavailable
36
ROD 2
BYP-F7248-00-00
Unavailable
37
CLIP, CABLE
BG4-F2805-01-00
$2.17
38
LOCK ASSY 2
B4J-F16B0-02-00
$53.99
39
SCREW
90149-08805-00
$1.01
40
BUSH, SOLID
90381-08001-00
Unavailable
41
HINGE
B4J-F1797-02-00
Unavailable
42
HOOK, SPRING
BYP-F5658-01-00
Unavailable
43
BOLT
90109-068C9-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
45
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
46
SIDE COVER COMP. 4
BYP-F17H0-20-00
Unavailable
47
NUT, SPRING
90183-062A1-00
Unavailable
48
BOLT, WITH WASHER
90119-06226-00
Unavailable
49
PNL. , DOOR RR. RH
BYP-K8572-00-00
Unavailable
50
PROTECTOR 1
BYP-K811V-00-00
Unavailable
51
NUT, SPRING
90183-062A1-00
Unavailable
52
RIVET(8AB)
90269-05073-00
Unavailable
53
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
54
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
55
SEAL 2
B4J-F1735-00-00
Unavailable
56
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
57
PLUG
90338-10801-00
Unavailable
58
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
