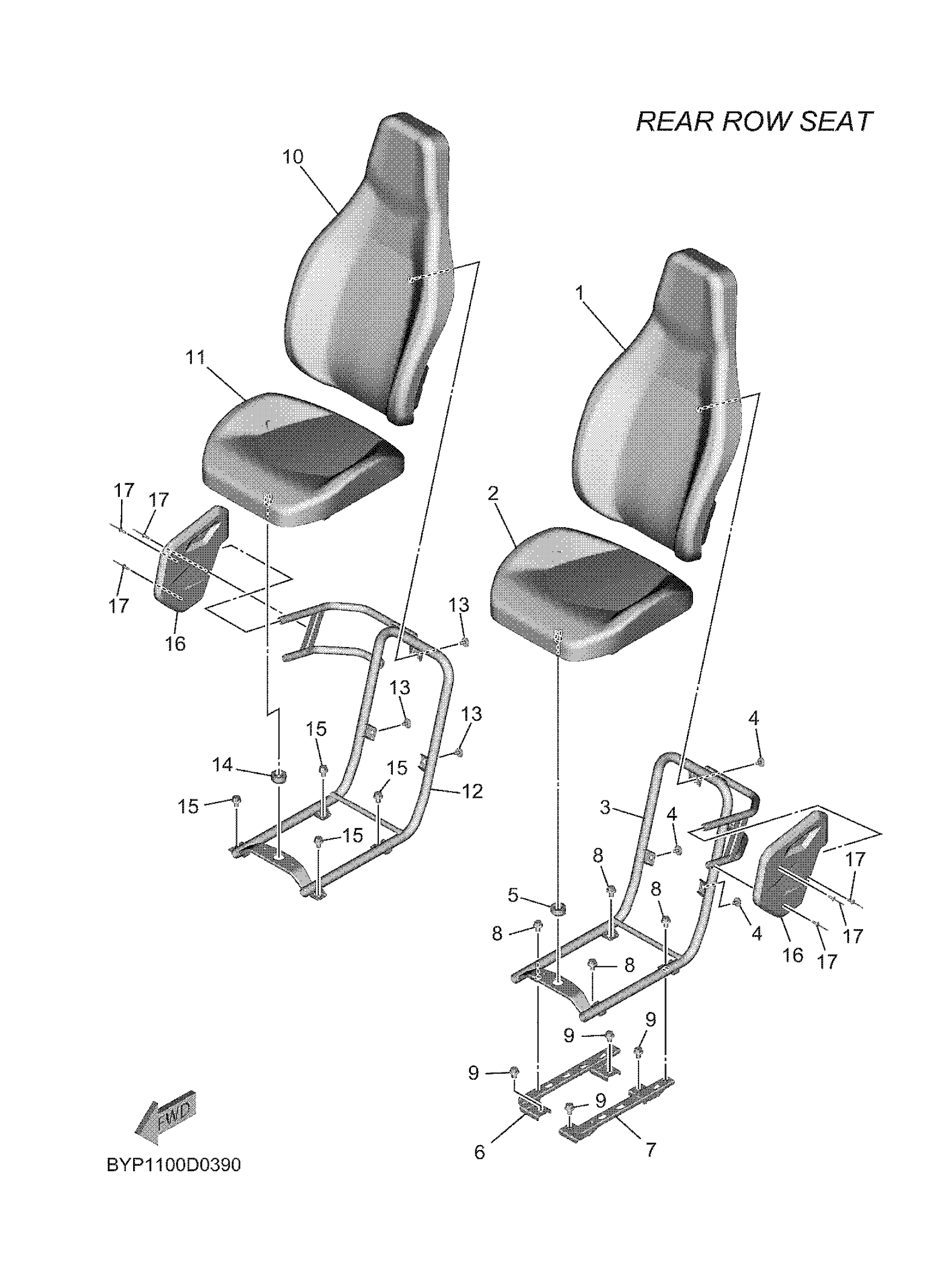

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 SEAT 3 Diagram

#

Description
Price

1

SEAT BACK ASSY

B4J-F4790-70-00

$277.74

2

SEAT ASSY 2

B4J-K8420-70-00

$173.59

3

FRAME, SEAT 1

B4J-F473C-02-00

$123.01

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

5

GROMMET

1XD-F4742-00-00

Unavailable

6

STAY, FRONT 1

BYP-F474F-00-00

Unavailable

7

STAY, FRONT 2

BYP-F474G-00-00

Unavailable

8

BOLT, FLANGE

95817-08012-00

$3.81

9

BOLT, FLANGE

95817-08012-00

$3.81

10

SEAT BACK ASSY

B4J-F4790-70-00

$277.74

11

SEAT ASSY 2

B4J-K8420-70-00

$173.59

12

FRAME, SEAT 2

B4J-F473D-02-00

$131.59

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

14

GROMMET

1XD-F4742-00-00

Unavailable

15

BOLT, FLANGE

95817-08012-00

$3.81

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
