OIL PUMP

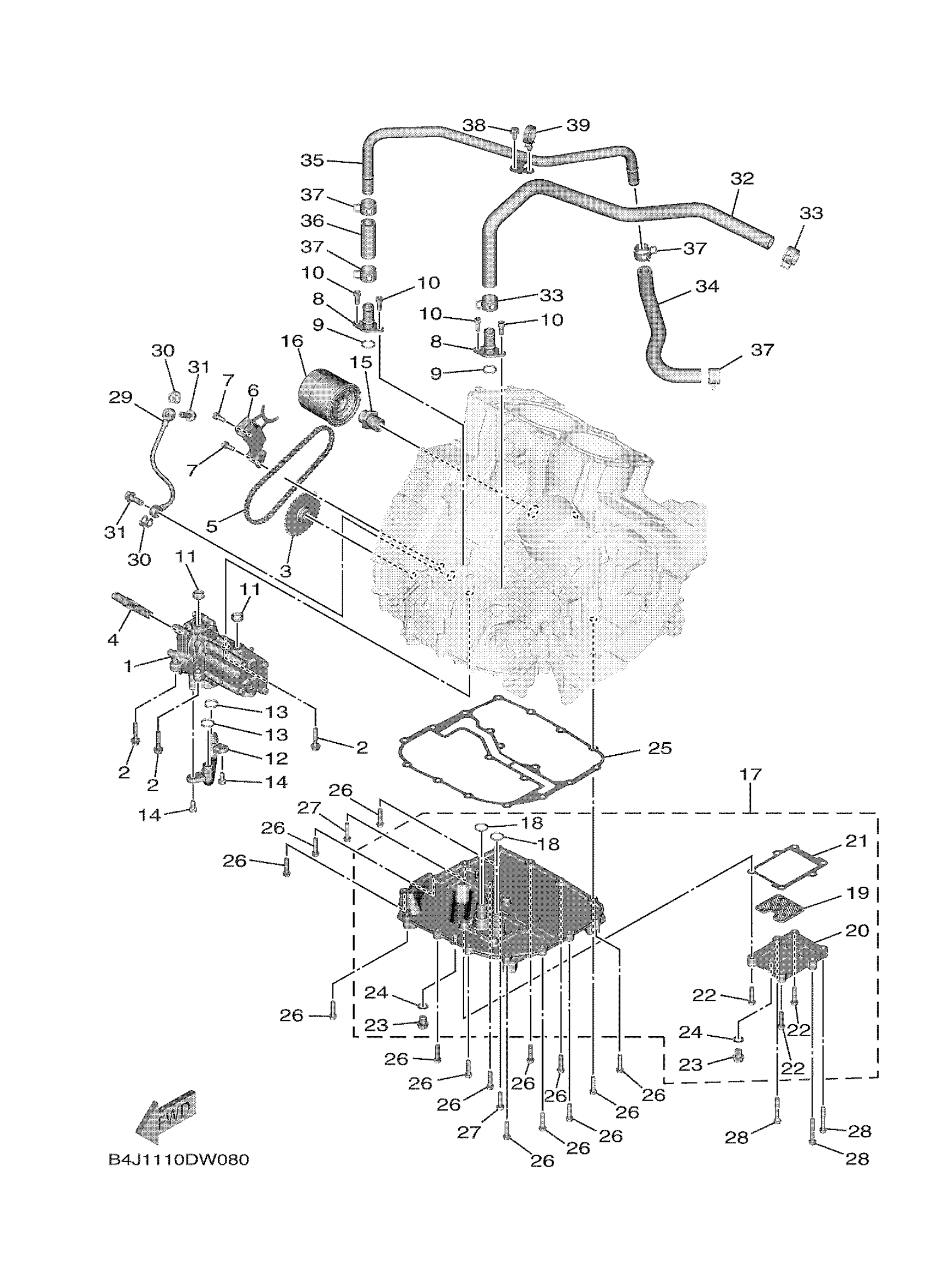

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 OIL PUMP Diagram
#
1
OIL PUMP ASSY
B1R-E3300-00-00
Unavailable
2
BOLT, FLANGE
95812-06030-00
$8.49
3
SPROCKET, DRIVEN
B1R-E3355-00-00
$29.99
4
SHAFT, DRIVEN GEAR
B1R-E3344-00-00
$19.99
5
CHAIN (DID25SH-70LE)
94582-53070-00
$28.99
6
HOLDER
B1R-E3898-00-00
$22.99
7
BOLT (33M)
91312-06014-00
$5.60
8
CONNECTOR, SUCTION PIPE
B4D-E3115-00-00
Unavailable
9
O-RING (26H)
93210-16629-00
$7.49
10
BOLT,SOCKET
91317-06016-00
$1.25
11
GASKET
5GJ-13475-00-00
$5.49
12
PIPE, OIL 2
B1R-13418-00-00
$41.99
13
O-RING
93210-14003-00
$8.49
14
BOLT,SOCKET
91317-06012-00
$8.49
15
BOLT, UNION
90401-20011-00
$37.99
16
ELEMENT ASSY, OIL CLEANER
1WD-E3440-21-00
Unavailable
17
STRAINER COVER ASS
B1R-E3400-00-00
Unavailable
18
O-RING
93210-14003-00
$8.49
19
STRAINER, OIL
B4D-E3411-00-00
Unavailable
20
COVER 1
B4D-E3881-00-00
Unavailable
21
GASKET
B4D-E3475-00-00
Unavailable
22
BOLT, FLANGE
95022-06025-00
Unavailable
23
PLUG STRAIGTSCREW 367185880000
90340-10003-00
Unavailable
24
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
25
GASKET, STRAINER C
B1R-E3414-00-00
Unavailable
26
BOLT, FLANGE
95022-06025-00
Unavailable
27
BOLT, FLANGE
90105-06221-00
Unavailable
28
BOLT, FLANGE
95022-06040-00
Unavailable
29
PIPE, DELIVERY 2
B1R-13171-00-00
Unavailable
30
GASKET
B1R-13475-00-00
Unavailable
31
BOLT, UNION (SCORPIO-Z)
90401-08801-00
Unavailable
32
HOSE, OIL 1
BG4-E316F-00-00
Unavailable
33
CLIP(34X)
90467-22097-00
Unavailable
34
HOSE, OIL 2
BG4-E316G-00-00
Unavailable
35
PIPE, DELIVERY 1
B4J-E3161-00-00
Unavailable
36
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
37
CLIP(34X)
90467-22097-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
39
CLAMP(4NK)
90464-24230-00
Unavailable
