- YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026
GUARD 2

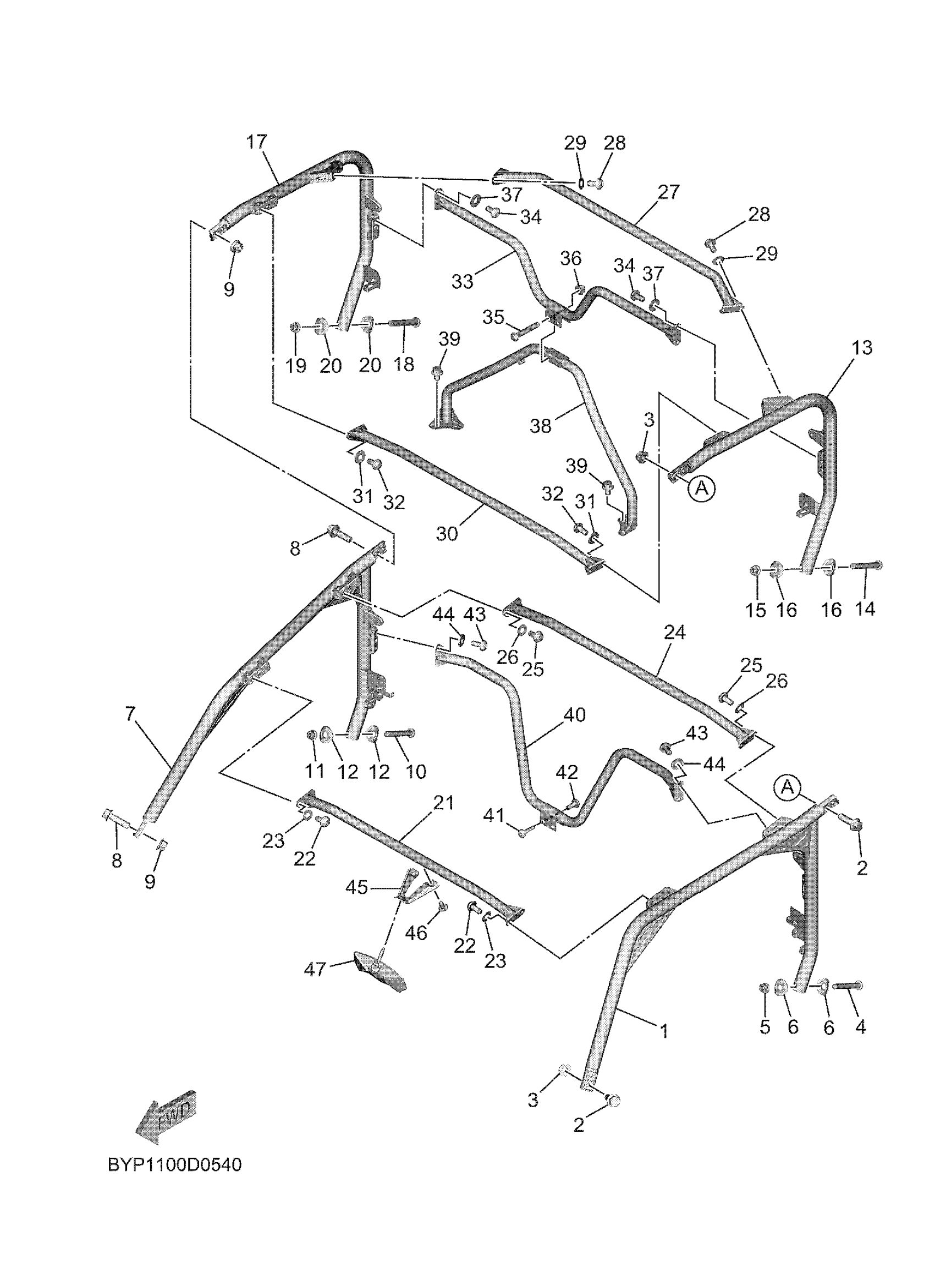

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
BYP-K831A-00-00
$382.99
2
BOLT, FLANGE
95817-12040-00
$4.19
3
NUT, SELF-LOCKING
90185-12002-00
$12.49
4
BOLT,BUTTON
92017-10070-00
$4.14
5
NUT, SELF-LOCKING
90185-10819-00
$0.90
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
BYP-K831E-00-00
Unavailable
8
BOLT, FLANGE
95817-12040-00
$4.19
9
NUT, SELF-LOCKING
90185-12002-00
$12.49
10
BOLT,BUTTON
92017-10070-00
$4.14
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
WASHER 2
1XD-K7526-00-00
$5.49
13
FRAME, SUNROOF 1
BYP-K833M-00-00
$351.99
14
BOLT,BUTTON
92017-10070-00
$4.14
15
NUT, SELF-LOCKING
90185-10819-00
$0.90
16
WASHER 2
1XD-K7526-00-00
$5.49
17
FRAME, SUNROOF 2
BYP-K833R-00-00
Unavailable
18
BOLT,BUTTON
92017-10070-00
$4.14
19
NUT, SELF-LOCKING
90185-10819-00
$0.90
20
WASHER 2
1XD-K7526-00-00
$5.49
21
MEMBER, ROOF FRAME
B4J-K8392-01-00
Unavailable
22
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
23
WASHER, PLATE
90201-10856-00
Unavailable
24
MEMBER, ROOF FRAME 2
B4J-K8393-01-00
Unavailable
25
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
26
WASHER, PLATE
90201-10856-00
Unavailable
27
MEMBER, ROOF FRAME 3
B4J-K8394-01-00
Unavailable
28
WASHER, PLATE
90201-10856-00
Unavailable
29
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
30
ROOF SUPPORT ASSY
BYP-K830C-00-00
Unavailable
31
WASHER, PLATE
90201-10856-00
Unavailable
32
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
33
ROOF SUPPORT ASSY
BYP-K830A-00-00
Unavailable
34
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
35
BOLT,BUTTON
92017-10060-00
Unavailable
36
NUT, SELF-LOCKING
90185-10819-00
$0.90
37
WASHER, PLATE
90201-10856-00
Unavailable
38
ROOF SUPPORT ASSY
B4M-K830B-00-00
Unavailable
39
BOLT, FLANGE
95812-10016-00
Unavailable
40
ROOF SUPPORT ASSY
BYP-K830B-00-00
Unavailable
41
BOLT
5UG-K7519-00-00
Unavailable
42
NUT, SPECIAL
5UG-K7573-00-00
Unavailable
43
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
44
WASHER, PLATE
90201-10856-00
Unavailable
45
BRACKET 2
BAS-K7722-00-00
Unavailable
46
BOLT, FLANGE
90105-08867-00
Unavailable
47
MIRROR
BKP-F6291-01-00
Unavailable
