- YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026
FRONT WHEEL 2

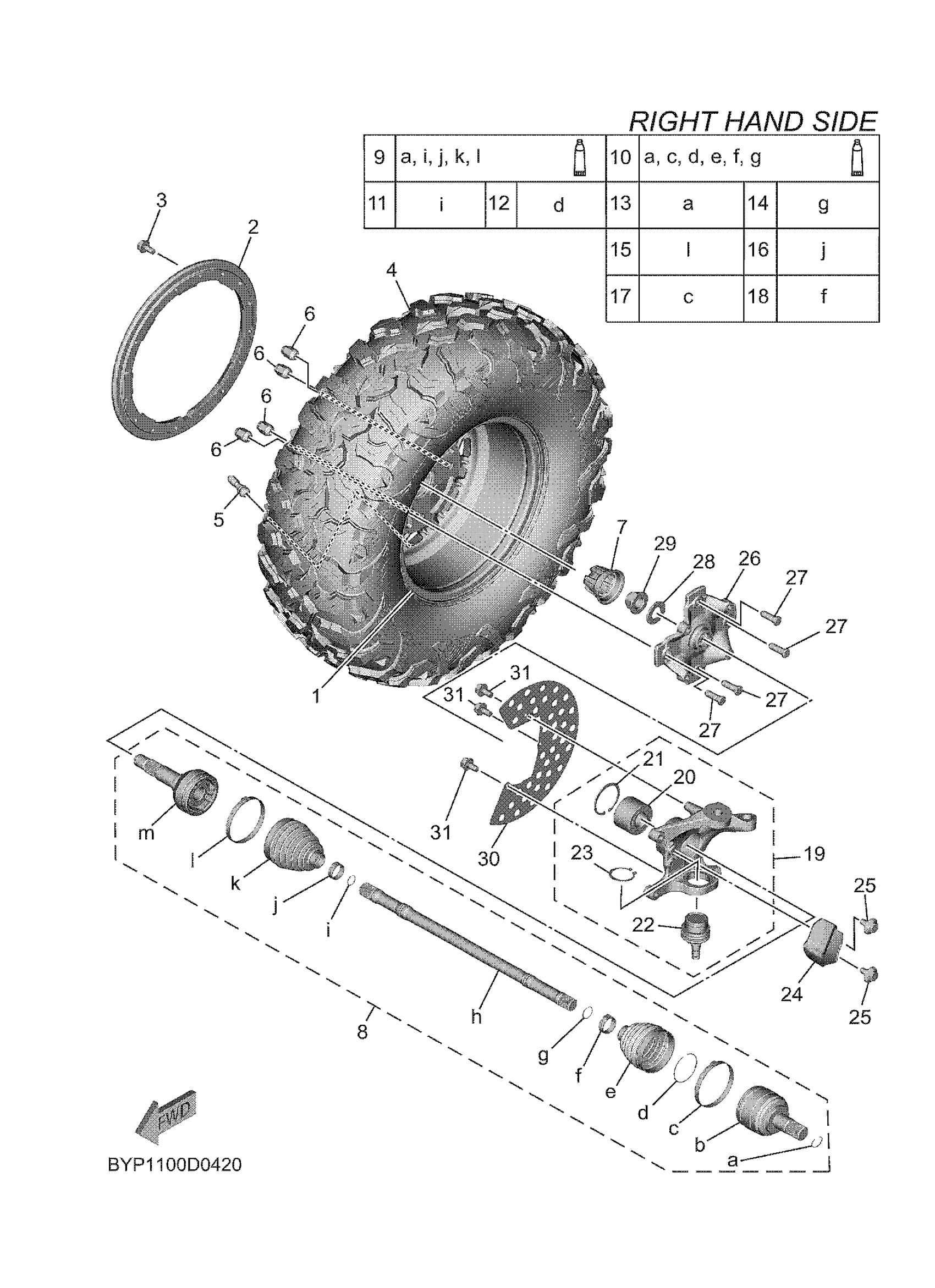

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 FRONT WHEEL 2 Diagram
#
1
CAST, WHEEL FRONT MATT BLACK
BKP-F5168-30-00
$390.99
2
RING 1
B5H-F5185-40-00
Unavailable
3
BOLT, FLANGE
90105-088J5-00
$3.28
4
TIRE (30X10.00R14 ML1 8PR TL)
94110-14809-00
Unavailable
5
VALVE, RIM
93900-00812-00
Unavailable
6
NUT, CROWN
90176-12801-00
Unavailable
7
CAP, WHEEL
2HC-F512A-00-00
$3.02
8
DRIVE SHAFT ASSY
BKP-2518F-00-00
$289.99
9
BOOT SET (BALL JOI
B4J-2510G-02-00
$53.99
10
BOOT SET(DOUBLE OF
B4J-2510H-02-00
$49.99
11
RING 1
BG4-25185-00-00
$4.56
12
CLIP, SPRING
2HC-2536E-00-00
$4.99
13
CLIP, SPRING
16B-2536E-00-00
$4.63
14
SNAP RING
2HC-2512J-00-00
$4.58
15
BOOT BAND(DOUBLE OFFSET JOINT)
B4J-2511H-00-00
$8.49
16
BOOT BAND (BALL JOINT)
B4J-2511G-00-00
Unavailable
17
BAND
2HC-26293-00-00
Unavailable
18
BAND
2HC-25719-00-00
Unavailable
19
STEERING KNUCKLE A
BKP-F3502-01-00
Unavailable
20
BEARING
93305-00604-00
Unavailable
21
CIRCLIP(MF1)
99009-62500-00
Unavailable
22
BALL JOINT 2
2HC-23579-00-00
Unavailable
23
CIRCLIP
93410-42096-00
Unavailable
24
COVER, UNDER 2
B4J-F3133-00-00
Unavailable
25
BOLT
90109-06202-00
Unavailable
26
HUB, FRONT
B5H-F5111-02-00
Unavailable
27
BOLT, SERRATION
90114-12005-00
Unavailable
28
WASHER, PLATE
90201-25023-00
Unavailable
29
NUT
90179-24006-00
Unavailable
30
RING, WHEEL 1
2HC-F514A-00-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
