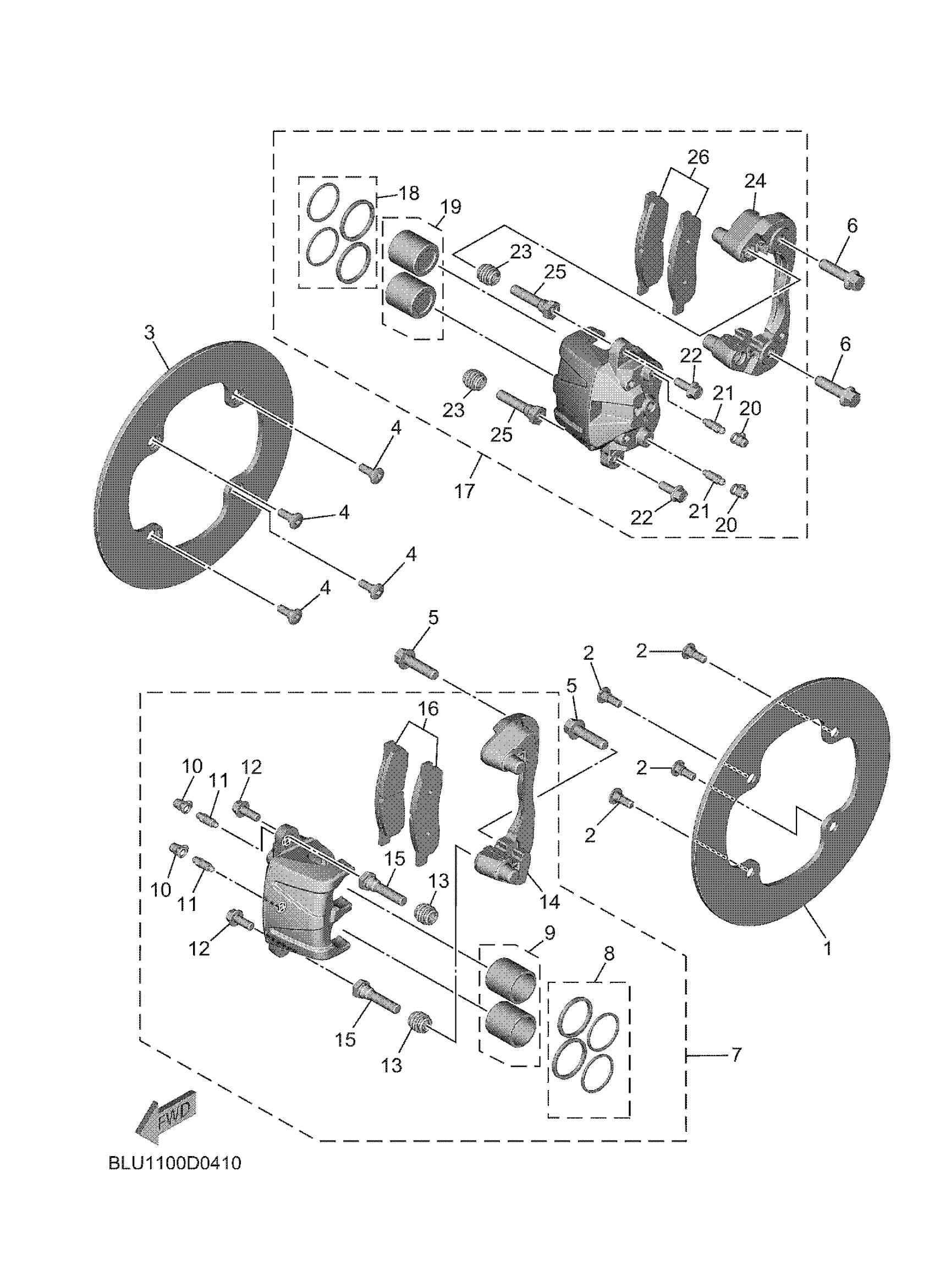

Yamaha YXF10WLZTM (WOLVERINE RMAX4 1000 XT R) BYP5 2026 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$50.20

2

BOLT

90109-08077-00

$2.69

3

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$50.20

4

BOLT

90109-08077-00

$2.69

5

BOLT, FLANGE

90105-10405-00

$4.40

6

BOLT, FLANGE

90105-10405-00

$4.40

7

CALIPER ASSY (LEFT

BKP-F580T-00-00

$273.95

8

CALIPER SEAL KIT

BKP-F5803-00-00

Unavailable

9

PISTON ASSY, CALIP

BKP-F5802-00-00

Unavailable

10

CAP

BKP-F5825-00-00

$12.12

11

SCREW, BLEED

BKP-F5824-00-00

$14.33

12

BOLT, FITTING

BKP-F5833-00-00

Unavailable

13

BOOT, CALIPER

BKP-F5917-00-00

$15.18

14

BRACKET, CALIPER

BKP-F5819-00-00

Unavailable

15

BOLT

BKP-F5926-00-00

Unavailable

16

BRAKE PAD KIT

BKP-F5805-00-00

Unavailable

17

CALIPER ASSY (LEFT

BKP-F580T-00-00

$273.95

18

CALIPER SEAL KIT

BKP-F5803-00-00

Unavailable

19

PISTON ASSY, CALIP

BKP-F5802-00-00

Unavailable

20

CAP

BKP-F5825-00-00

$12.12

21

SCREW, BLEED

BKP-F5824-00-00

$14.33

22

BOLT, FITTING

BKP-F5833-00-00

Unavailable

23

BOOT, CALIPER

BKP-F5917-00-00

$15.18

24

BRACKET, CALIPER

BKP-F5819-00-00

Unavailable

25

BOLT

BKP-F5926-00-00

Unavailable

26

BRAKE PAD KIT

BKP-F5805-00-00

Unavailable
