- YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025
SIDE COVER 4

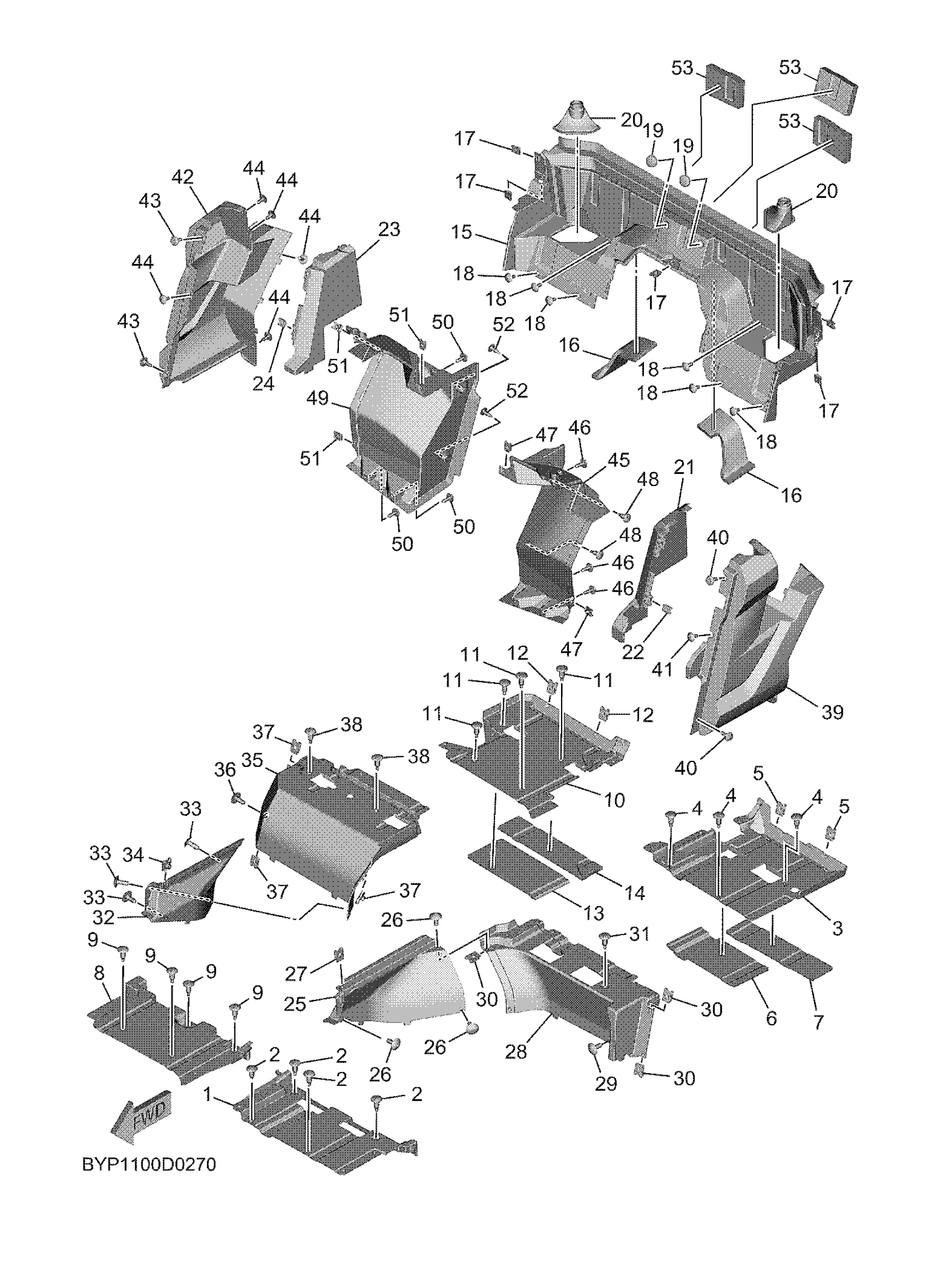

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 SIDE COVER 4 Diagram
#
1
PLATE, UNDER 1
BYP-F84A3-00-00
Unavailable
2
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
3
PLATE
B8K-F84A3-01-00
$29.99
4
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
5
NUT, SPRING
90183-062A1-00
$1.96
6
INSULATOR 3
BYP-F172S-00-00
Unavailable
7
INSULATOR 4
BYP-F173S-00-00
Unavailable
8
PLATE, UNDER 2
BYP-F84A4-00-00
Unavailable
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
PLATE, UNDER 2
B8K-F84A4-00-00
$28.99
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
12
NUT, SPRING
90183-062A1-00
$1.96
13
INSULATOR 3
BYP-F172S-00-00
Unavailable
14
INSULATOR 4
BYP-F173S-00-00
Unavailable
15
COVER,REAR PURPBLU
B8K-F2866-01-00
$62.99
16
INSULATOR, SIDE CO
B8K-F174T-00-00
Unavailable
17
NUT, SPRING
90183-062A1-00
$1.96
18
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
19
PLUG
90338-18266-00
Unavailable
20
PLATE, RUBBER 5
B8K-F845J-01-00
Unavailable
21
COVER, SIDE 1
B4M-F2864-00-00
Unavailable
22
NUT, SPRING
90183-062A1-00
$1.96
23
COVER, SIDE 2
B4M-F2868-00-00
Unavailable
24
NUT, SPRING
90183-062A1-00
$1.96
25
COVER, SIDE 1
BYP-F2864-00-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
27
NUT, SPRING
90183-062A1-00
$1.96
28
COVER,SIDE 1
BYP-F286T-00-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
30
NUT, SPRING
90183-062A1-00
$1.96
31
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
32
COVER, SIDE 2
BYP-F2868-00-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
34
NUT, SPRING
90183-062A1-00
$1.96
35
COVER,SIDE 2
BYP-F286U-00-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
37
NUT, SPRING
90183-062A1-00
$1.96
38
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
39
SIDE COVER COMP. 1
B4M-F17E0-60-00
Unavailable
40
BOLT
90109-06840-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
42
SIDE COVER COMP. 2
B4M-F17F0-60-00
Unavailable
43
BOLT
90109-06840-00
Unavailable
44
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
45
MUD GUARD 1
B8K-F2327-00-00
Unavailable
46
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
47
NUT, SPRING
90183-062A1-00
$1.96
48
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
49
MUD GUARD 2
B8K-F2328-00-00
Unavailable
50
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
51
NUT, SPRING
90183-062A1-00
$1.96
52
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
53
INSULATOR, SIDE CO
B8K-F174A-00-00
Unavailable
