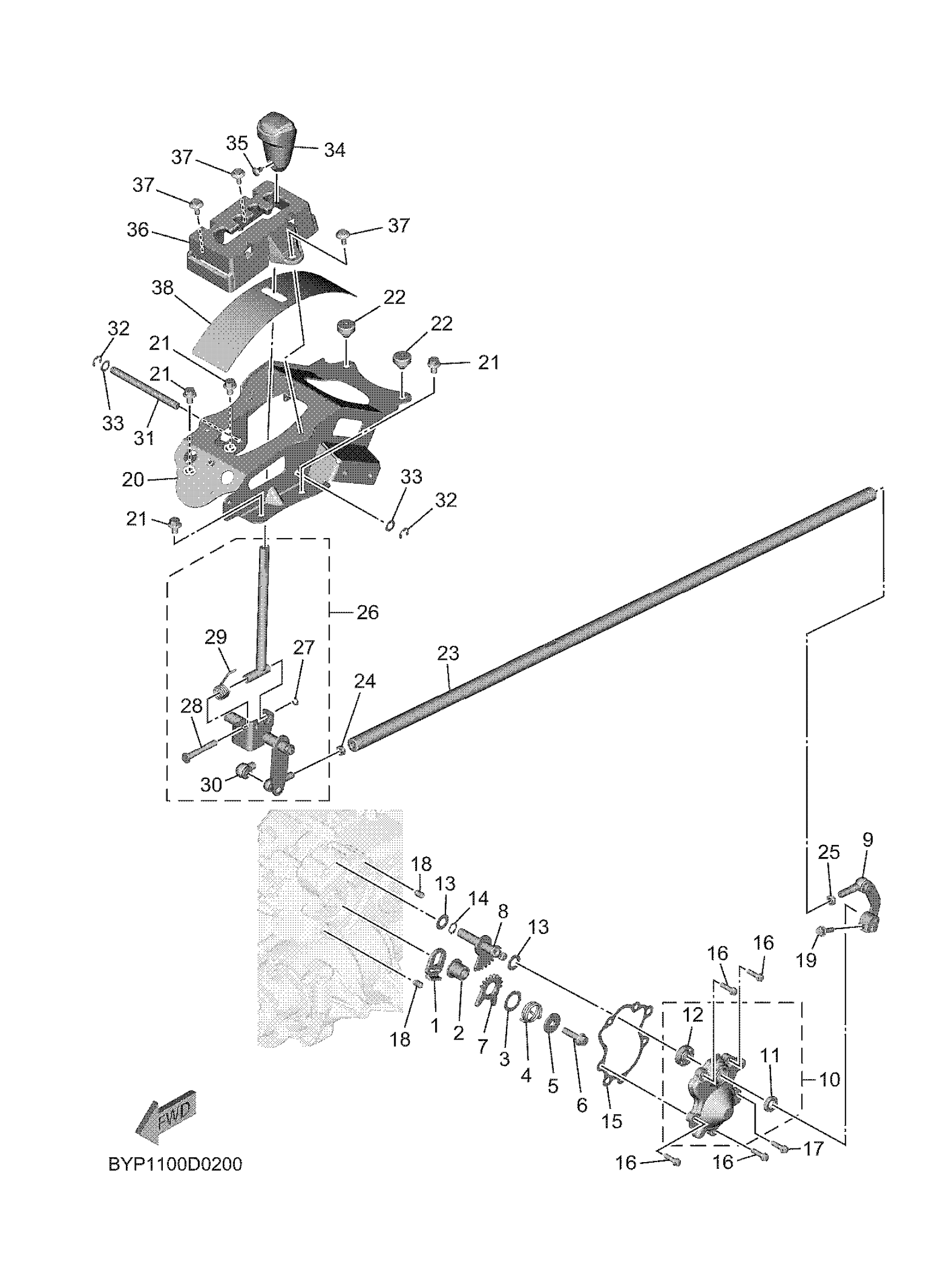

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

BG4-18198-00-00

$4.88

2

COLLAR

90387-13007-00

Unavailable

3

WASHER PLATE 328171160000

90201-20276-00

$8.49

4

SPRING, TORSION

90508-32143-00

$3.76

5

WASHER, PLATE (8M2)

90201-083A8-00

$2.02

6

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

7

LEVER

BG4-18191-00-00

$9.49

8

SHIFT SHAFT COMP.

BG4-18103-00-00

$38.99

9

SHIFT GUIDE COMP.

BYP-18104-00-00

Unavailable

10

SHIFTER BRKT. ASSY

BG4-18380-00-00

Unavailable

11

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

12

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

13

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

GASKET

BG4-18146-00-00

$8.49

16

. BOLT, FLANGE

95027-06020-00

Unavailable

17

BOLT, FLANGE

95022-06020-00

Unavailable

18

PIN, DOWEL

99530-08012-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

SUPPORT, SHIFT BRA

B4J-F2595-01-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95D32-08012-00

Unavailable

22

PLUG

90338-10801-00

Unavailable

23

ROD, SHIFT

BYP-E8115-00-00

Unavailable

24

NUT(1KT)

90170-08358-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

SHIFT LEVER ASSY

BYP-E8150-00-00

Unavailable

27

CIRCLIP(53L)

99001-06600-00

Unavailable

28

SHAFT, SHIFT

1HP-E8125-00-00

Unavailable

29

SPRING, RETURN

1HP-E8196-00-00

Unavailable

30

COVER, DUST

2H9-18154-00-00

Unavailable

31

PIN, SHIFT

BG4-18173-00-00

Unavailable

32

CIRCLIP(2R6)

99001-08600-00

Unavailable

33

WASHER, PLAIN(735)

90201-10119-00

Unavailable

34

KNOB, SHIFT LEVER

B4J-E8174-00-00

Unavailable

35

RIVET(81E)

90269-05055-00

Unavailable

36

GUIDE, SHIFT

B4J-E8172-01-00

Unavailable

37

BOLT

90109-06172-00

Unavailable

38

COVER, DUST

B4J-E8154-01-00

Unavailable
