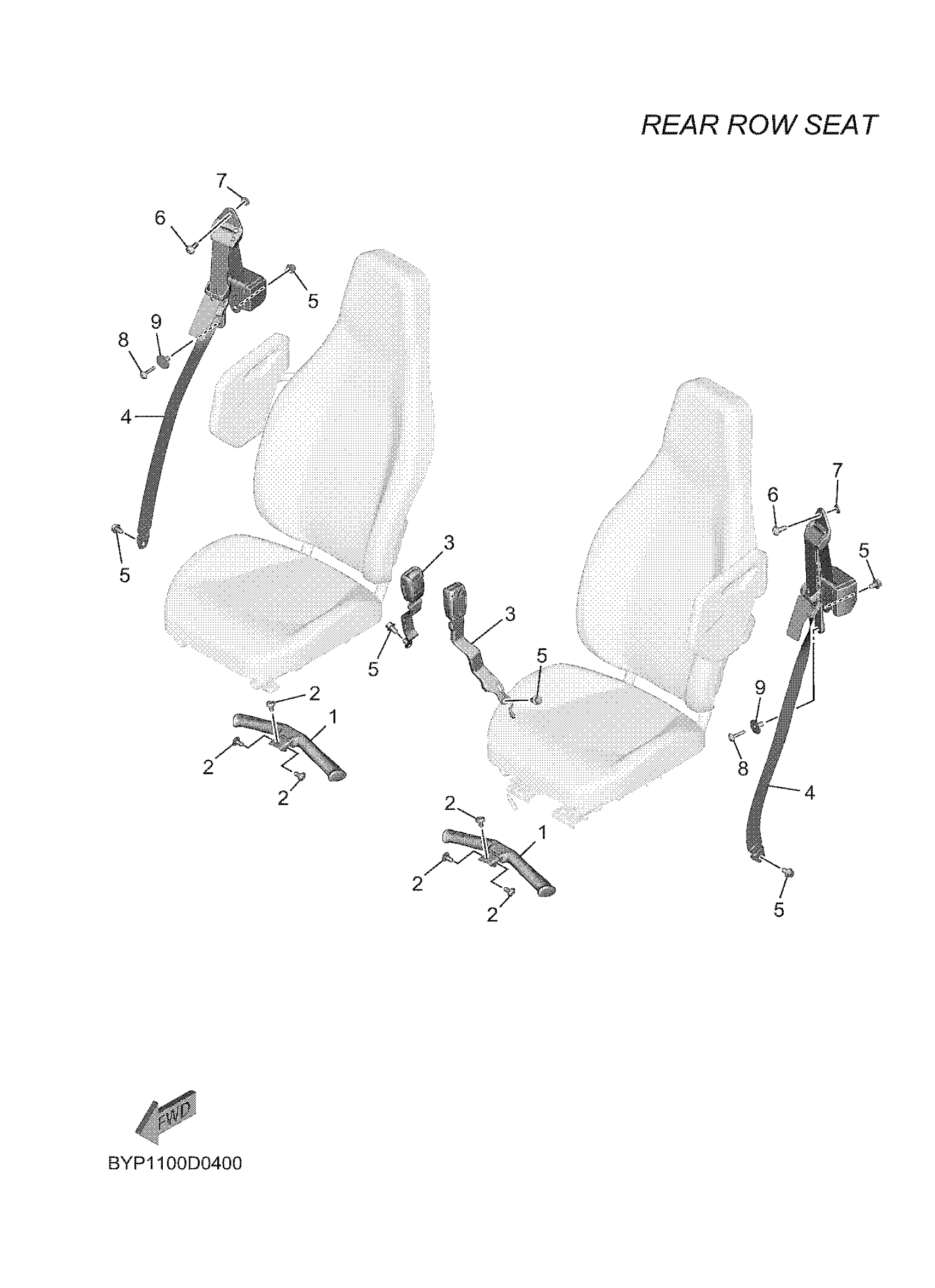

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 SEAT 4 Diagram

#

Description
Price

1

GRIP, 1

B4J-F8482-02-00

$60.51

2

SCREW

90149-08805-00

$0.84

3

FR. BELT RECEIVER

B4J-F470R-01-00

$45.37

4

FR. SEAT BELT ASSY

B4J-F470L-02-00

$132.76

5

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.04

6

BOLT,HEX. SOCKET B

90111-11800-00

$2.19

7

WASHER, PLATE (583)

90201-12593-00

$6.35

8

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$8.07

9

COLLAR (17W)

90387-075H4-00

$6.02
