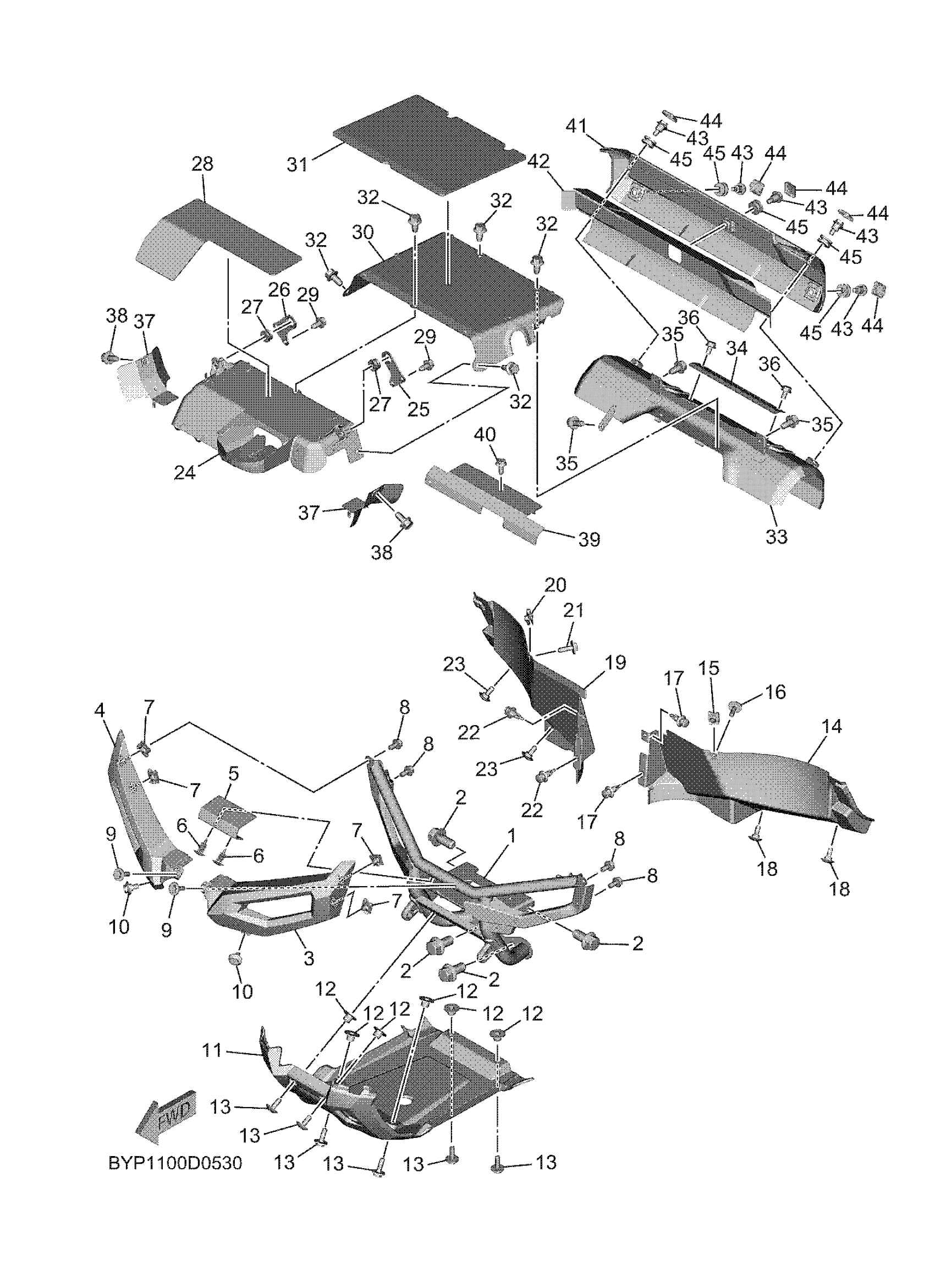

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 GUARD Diagram
#
3
COVER 1
B4J-F842M-00-00
Unavailable
9
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
17
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
18
BOLT
90109-06334-00
Unavailable
19
GUARD 2
BG4-F2362-01-00
Unavailable
21
BOLT, WITH WASHER
90119-06226-00
Unavailable
22
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
BOLT
90109-06334-00
Unavailable
24
INSULATOR, HEAT
B4J-F2898-10-00
Unavailable
25
STAY, 4
B4J-F846W-00-00
Unavailable
26
STAY 5
B4J-F846X-00-00
Unavailable
27
GROMMET
90480-18019-00
Unavailable
28
DAMPER 1
B4J-F8415-00-00
Unavailable
29
BOLT, FLANGE
90105-08867-00
Unavailable
30
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
31
DAMPER 3
B4J-F8425-00-00
Unavailable
32
BOLT, FLANGE
90105-08867-00
Unavailable
33
INSULATOR, MOUNTIN
B4J-F2891-11-00
Unavailable
34
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
35
BOLT, FLANGE
90105-08867-00
Unavailable
36
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
37
PROTECTOR 1
BAR-F2825-00-00
Unavailable
38
BOLT, FLANGE
90105-08867-00
Unavailable
39
PROTECTOR 1
B4J-F2825-03-00
Unavailable
40
BOLT, FLANGE
90105-06831-00
Unavailable
41
PROTECTOR, MUFFLER
BKP-F194H-00-00
Unavailable
42
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
43
BOLT
90109-06214-00
Unavailable
44
CAP
2MB-F143A-00-00
Unavailable
45
GROMMET
90480-12025-00
Unavailable
