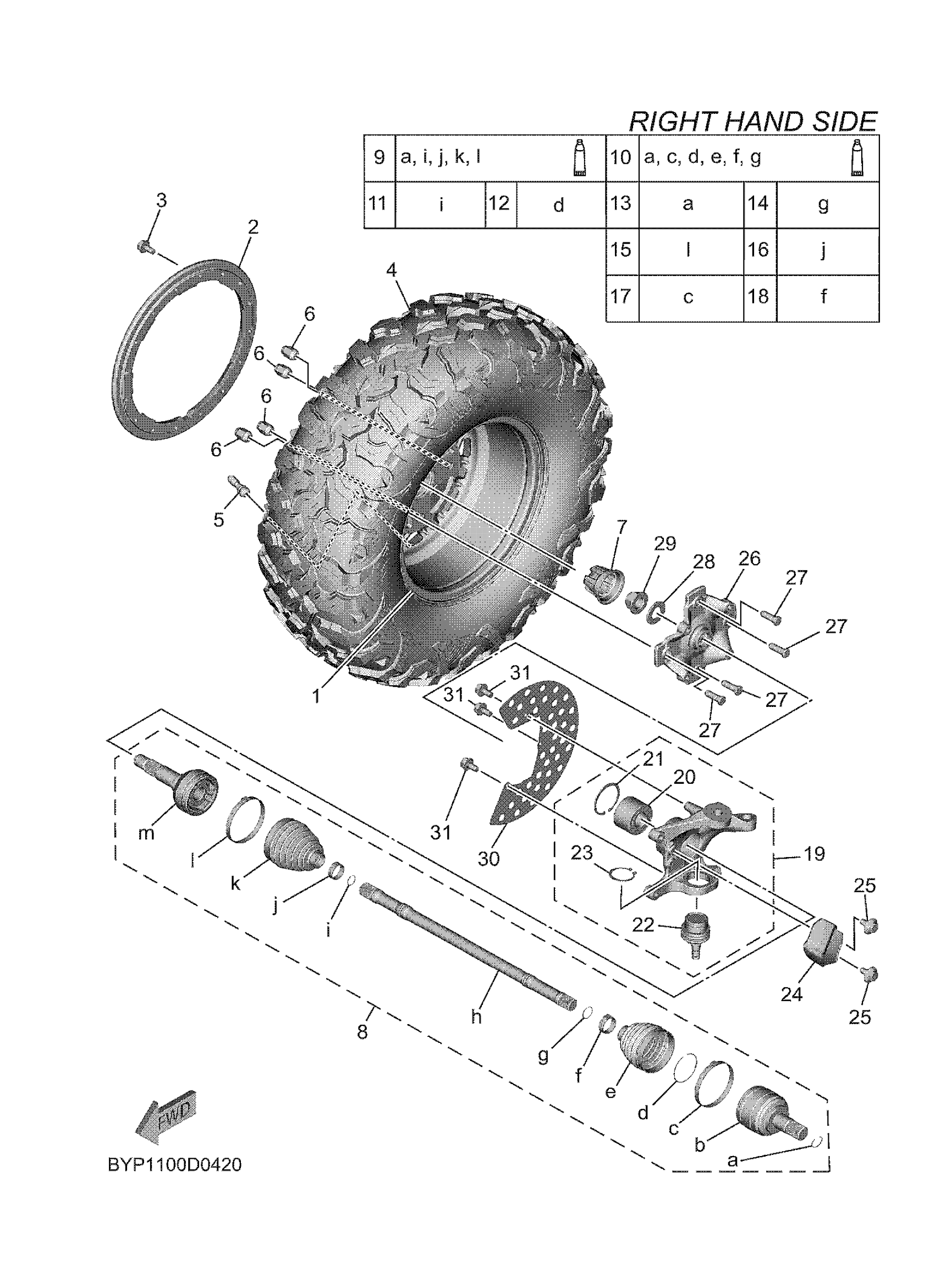

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 FRONT WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, FRONT

BKP-F5168-20-00

Unavailable

2

RING 1-BLACK

B5H-F5185-01-00

$181.99

3

BOLT, FLANGE

90105-088J5-00

$3.28

4

TIRE (30X10.00R14 ML1 8PR TL)

94110-14809-00

Unavailable

5

VALVE, RIM

93900-00812-00

Unavailable

6

NUT, CROWN

90176-12801-00

Unavailable

7

CAP, WHEEL

2HC-F512A-00-00

$3.02

8

DRIVE SHAFT ASSY

BKP-2518F-00-00

$289.99

9

BOOT SET (BALL JOI

B4J-2510G-02-00

$53.99

10

BOOT SET(DOUBLE OF

B4J-2510H-02-00

$49.99

11

RING 1

BG4-25185-00-00

$4.56

12

CLIP, SPRING

2HC-2536E-00-00

$4.99

13

CLIP, SPRING

16B-2536E-00-00

$4.63

14

SNAP RING

2HC-2512J-00-00

$4.58

15

BOOT BAND(DOUBLE OFFSET JOINT)

B4J-2511H-00-00

$8.49

16

BOOT BAND (BALL JOINT)

B4J-2511G-00-00

Unavailable

17

BAND

2HC-26293-00-00

Unavailable

18

BAND

2HC-25719-00-00

Unavailable

19

STEERING KNUCKLE A

BKP-F3502-01-00

Unavailable

20

BEARING

93305-00604-00

Unavailable

21

CIRCLIP(MF1)

99009-62500-00

Unavailable

22

BALL JOINT 2

2HC-23579-00-00

Unavailable

23

CIRCLIP

93410-42096-00

Unavailable

24

COVER, UNDER 2

B4J-F3133-00-00

Unavailable

25

BOLT

90109-06202-00

Unavailable

26

HUB, FRONT

B5H-F5111-02-00

Unavailable

27

BOLT, SERRATION

90114-12005-00

Unavailable

28

WASHER, PLATE

90201-25023-00

Unavailable

29

NUT

90179-24006-00

Unavailable

30

RING, WHEEL 1

2HC-F514A-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable
