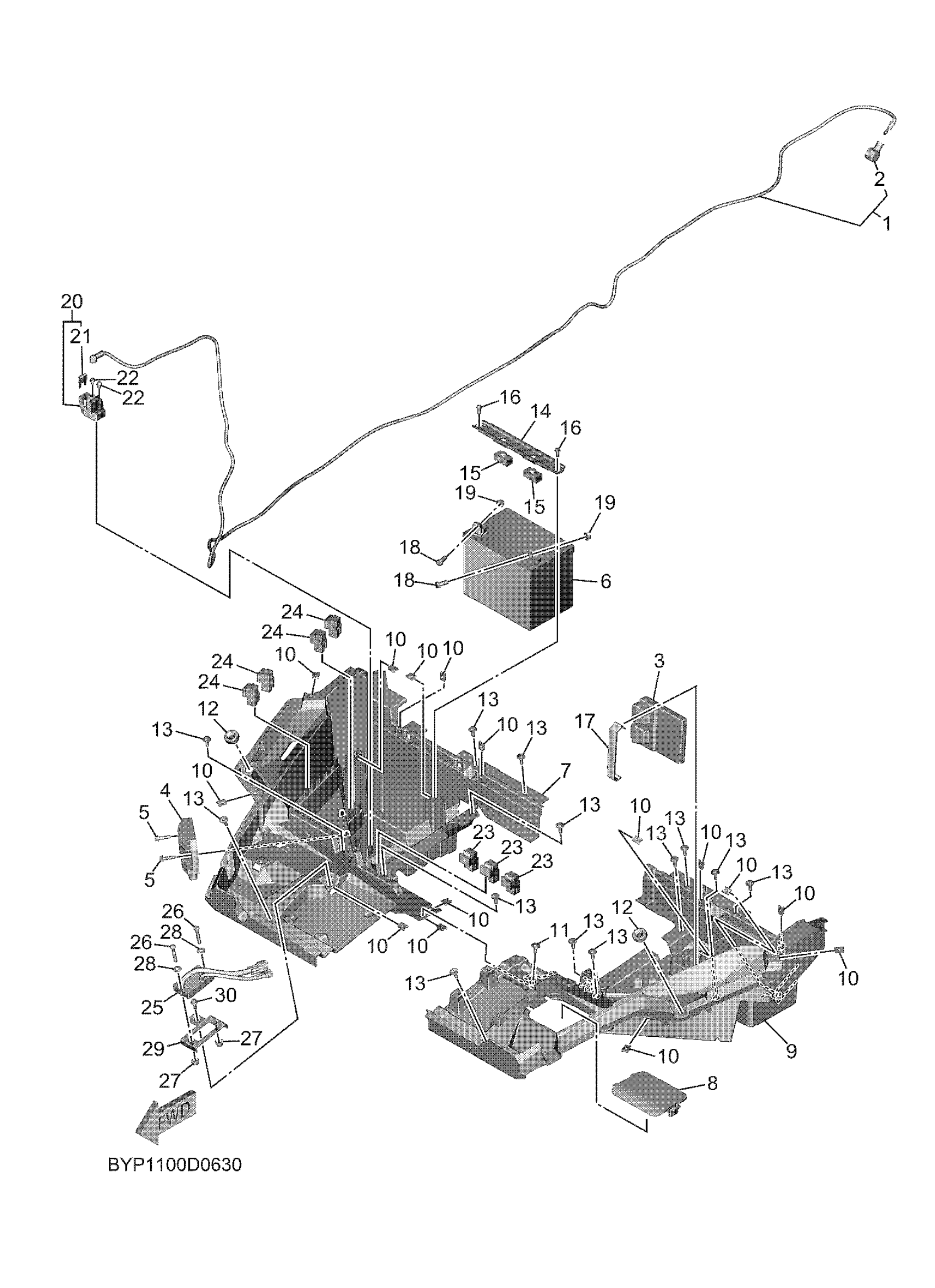

Yamaha YXF10WLZSB (WOLVERINE RMAX4 1000 XT R) BYP1 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

CORD, STARTER MOTO

BYP-81815-00-00

Unavailable

2

CAP

4B5-81871-00-00

Unavailable

3

ENGINE CONTROL UNIT ASSY

BYP-8591A-01-00

Unavailable

4

RECTIFIER & REGULATOR ASSY

BFN-81960-00-00

$267.88

5

BOLT, FLANGE

90105-06833-00

$1.63

6

BATTERY ASSY (GS U1-H11L)

5UG-H2100-11-00

Unavailable

7

BOX, BATTERY 1

B4J-H212B-01-00

$34.73

8

COVER 1

B4J-H246B-01-00

$3.15

9

PANEL, SWITCH

B4J-H2565-01-00

$49.18

10

NUT, SPRING

90183-062A1-00

$1.75

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

GROMMET

90480-16807-00

$1.31

13

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

14

BRACKET, BATTERY

2HC-H2128-00-00

$8.51

15

PAD, SEAT

3C3-24741-00-00

$7.77

16

BOLT, FLANGE

95022-06014-00

Unavailable

17

BAND, BATTERY

5JJ-82131-00-00

Unavailable

18

BOLT(6TD)

97080-08020-00

Unavailable

19

NUT

90179-08015-00

Unavailable

20

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

21

FUSE (10A)

42X-82151-00-00

Unavailable

22

BOLT, FLANGE

95022-06008-00

Unavailable

23

RELAY ASSY

5DM-81950-01-00

Unavailable

24

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

25

CONTROL UNIT ASSY

BKP-H3677-00-00

Unavailable

26

SCREW, PAN HEAD

98517-04025-00

$2.75

27

NUT, FLANGE

95707-04500-00

Unavailable

28

WASHER(6E1)

92907-04200-00

Unavailable

29

BRACKET

BKP-H350E-00-00

Unavailable

30

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable
