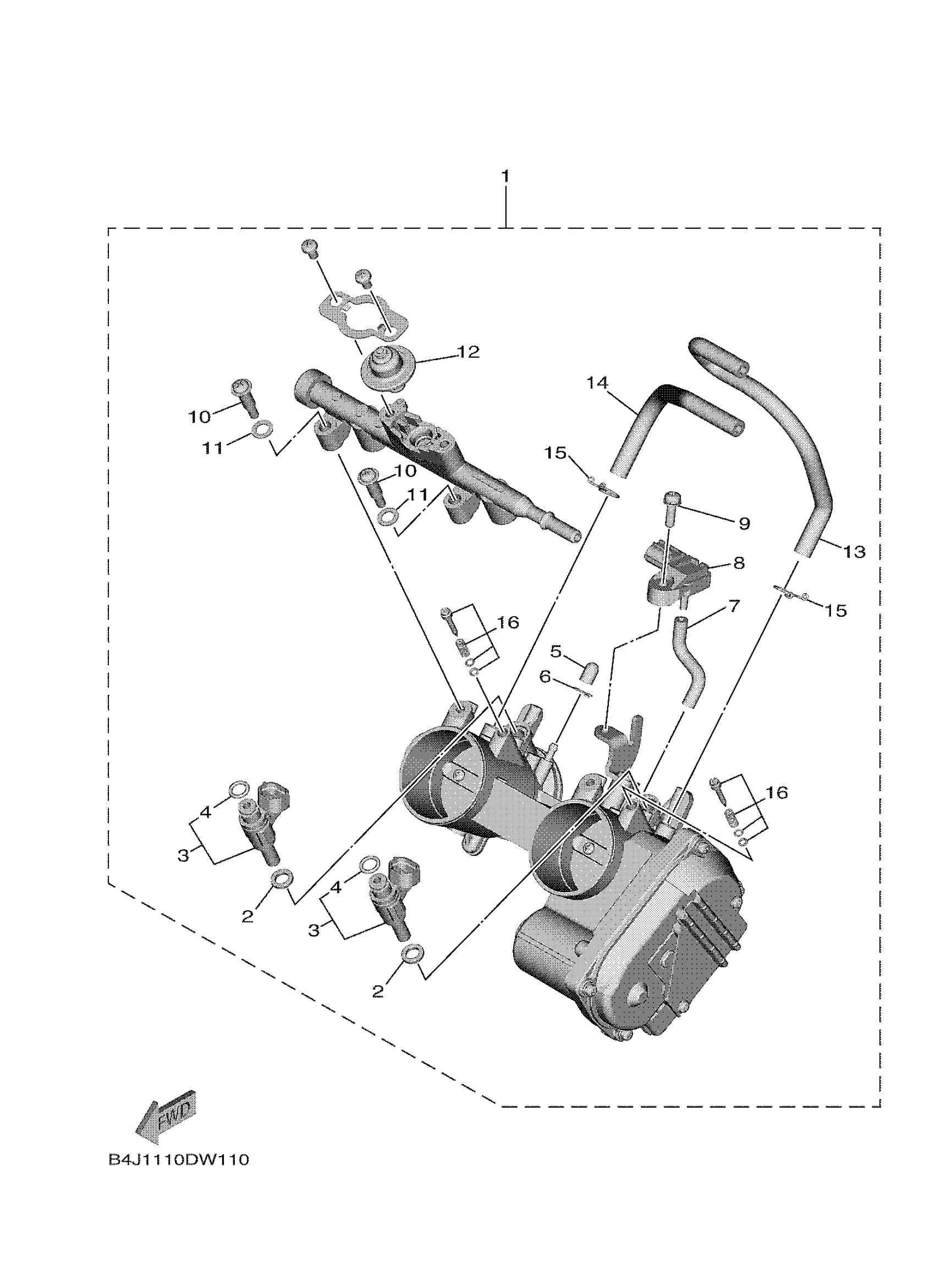

Yamaha YXF10WLLTL (WOLVERINE RMAX4 1000 LE) BYP7 2026 THROTTLE BODY ASSY 1 Diagram

Description

Price

THROTTLE BODY ASSY

B4J-13750-00-00

$1,034.99

. RUBBER, INJECTOR

68V-13766-10-00

Unavailable

INJECTOR

B4J-13761-00-00

$85.99

. O-RING

68V-1416A-00-00

Unavailable

CAP

895-14169-00-00

$5.49

CLIP, PIPE

8A7-14139-00-00

$8.99

HOSE

5PS-14987-00-00

$5.88

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

SCREW

2C0-14216-00-00

$3.28

BOLT 1

14B-13573-00-00

$6.99

GASKET

363-14198-00-00

$10.99

DAMPER

5VK-13982-00-00

Unavailable

PIPE

B4J-14465-00-00

$16.99

PIPE

B4J-14466-00-00

$16.99

CLIP

90467-090A2-00

$4.41

PILOT SCREW SET

2C0-14105-00-00

Unavailable
