- YXF10WLLTL (WOLVERINE RMAX4 1000 LE) BYP7 2026
SIDE COVER 3

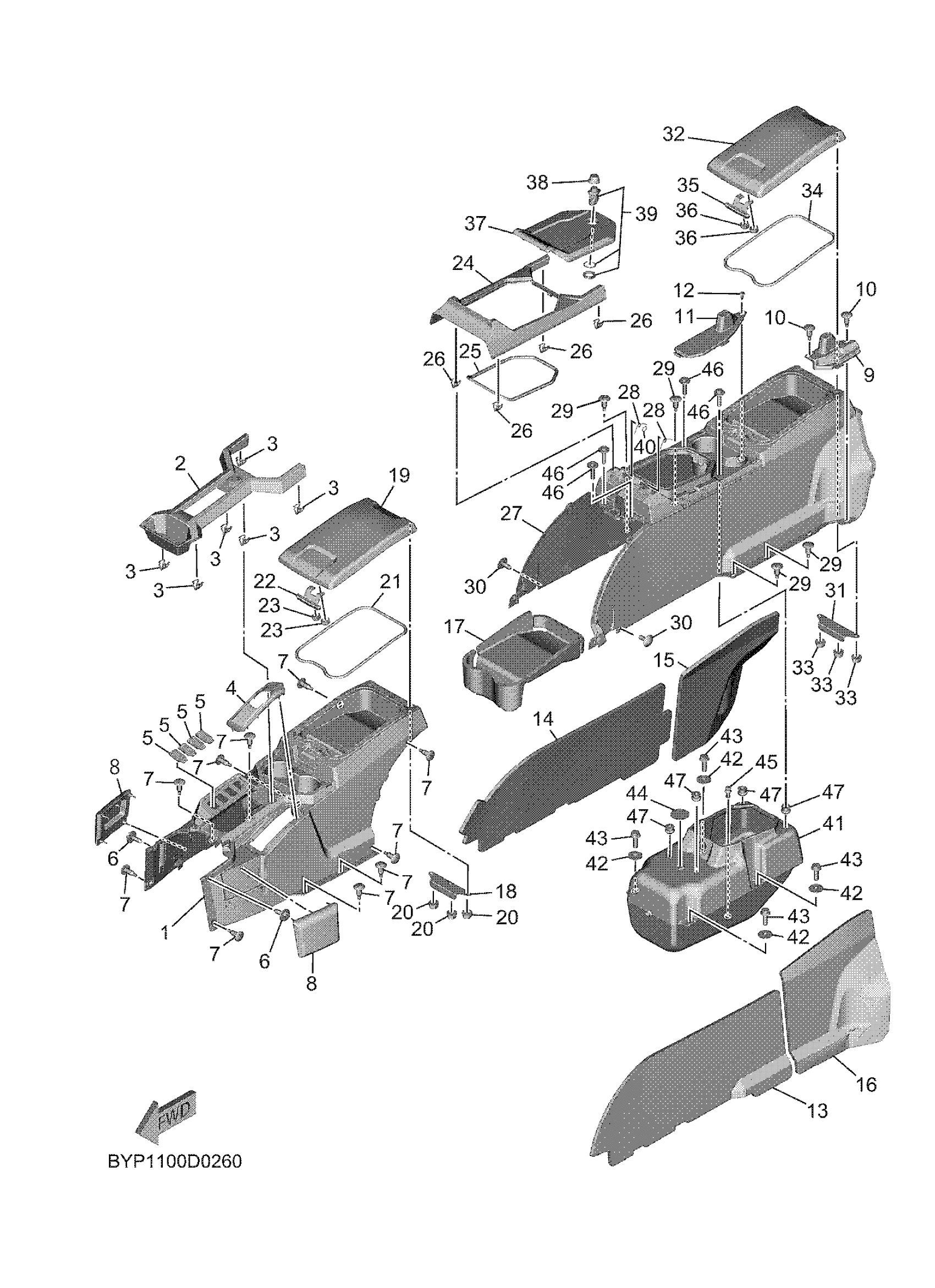

Yamaha YXF10WLLTL (WOLVERINE RMAX4 1000 LE) BYP7 2026 SIDE COVER 3 Diagram
#
1
COVER 1
BYP-F8219-00-00
$194.99
2
TOP COVER COMP.
B4J-F171C-70-00
$117.99
3
CLIP
90468-040A0-00
$8.49
4
COVER,HANDLE LEVER
B4J-F6372-01-00
$8.49
5
PLUG, HOLE
BG4-F312G-00-00
Unavailable
6
BOLT, WITH WASHER
90119-06226-00
$8.49
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
PAD 1
B4J-K7151-02-00
$33.99
9
PLATE, RUBBER 4
BG4-F8499-00-00
$7.49
10
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
11
PLATE, RUBBER 3
BG4-F8485-00-00
$13.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
INSULATOR, SIDE CO
BYP-F174A-00-00
Unavailable
14
INSULATOR, SIDE CO
BYP-F174T-00-00
Unavailable
15
INSU. , 2
B4J-H272M-00-00
$25.99
16
INSULATOR, 1
B4J-H272L-00-00
Unavailable
17
INSULATOR 3
B4J-F172S-00-00
Unavailable
18
BRACKET, HINGE
B4J-F114B-00-00
Unavailable
19
LID 2
B4J-F177J-01-00
Unavailable
20
NUT, U FLANGE
95604-06200-00
Unavailable
21
SEAL 1
B4J-F1732-01-00
Unavailable
22
LATCH
B4J-F389E-00-00
Unavailable
23
NUT, SELF-LOCKING
95617-06100-00
Unavailable
24
PANEL 1
BYP-F172A-30-00
Unavailable
25
SEAL 3
BYP-F173M-00-00
Unavailable
26
CLIP
90468-040A0-00
$8.49
27
TOP COVER COMP.
BYP-F171C-00-00
Unavailable
28
SPRING
BYP-F476L-00-00
Unavailable
29
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
31
BRACKET, HINGE
B4J-F114B-00-00
Unavailable
32
LID 2
B4J-F177J-01-00
Unavailable
33
NUT, U FLANGE
95604-06200-00
Unavailable
34
SEAL 1
B4J-F1732-01-00
Unavailable
35
LATCH
B4J-F389E-00-00
Unavailable
36
NUT, SELF-LOCKING
95617-06100-00
Unavailable
37
LID, COVER
BYP-F177B-00-00
Unavailable
38
CAP, RUBBER
BYP-F6329-00-00
Unavailable
39
LATCH ASSY 1
B4J-F17N0-01-00
Unavailable
40
CIRCLIP(53L)
99001-06600-00
Unavailable
41
BOX
BYP-F177A-00-00
Unavailable
42
COLLAR
90387-06164-00
Unavailable
43
BOLT, FLANGE
90105-06155-00
Unavailable
44
COVER
BYP-F172W-00-00
Unavailable
45
. SEAL
F3X-U2723-00-00
Unavailable
46
SCREW, WITH WASHER
90159-05035-00
Unavailable
47
NUT(1KT)
90179-05523-00
Unavailable
