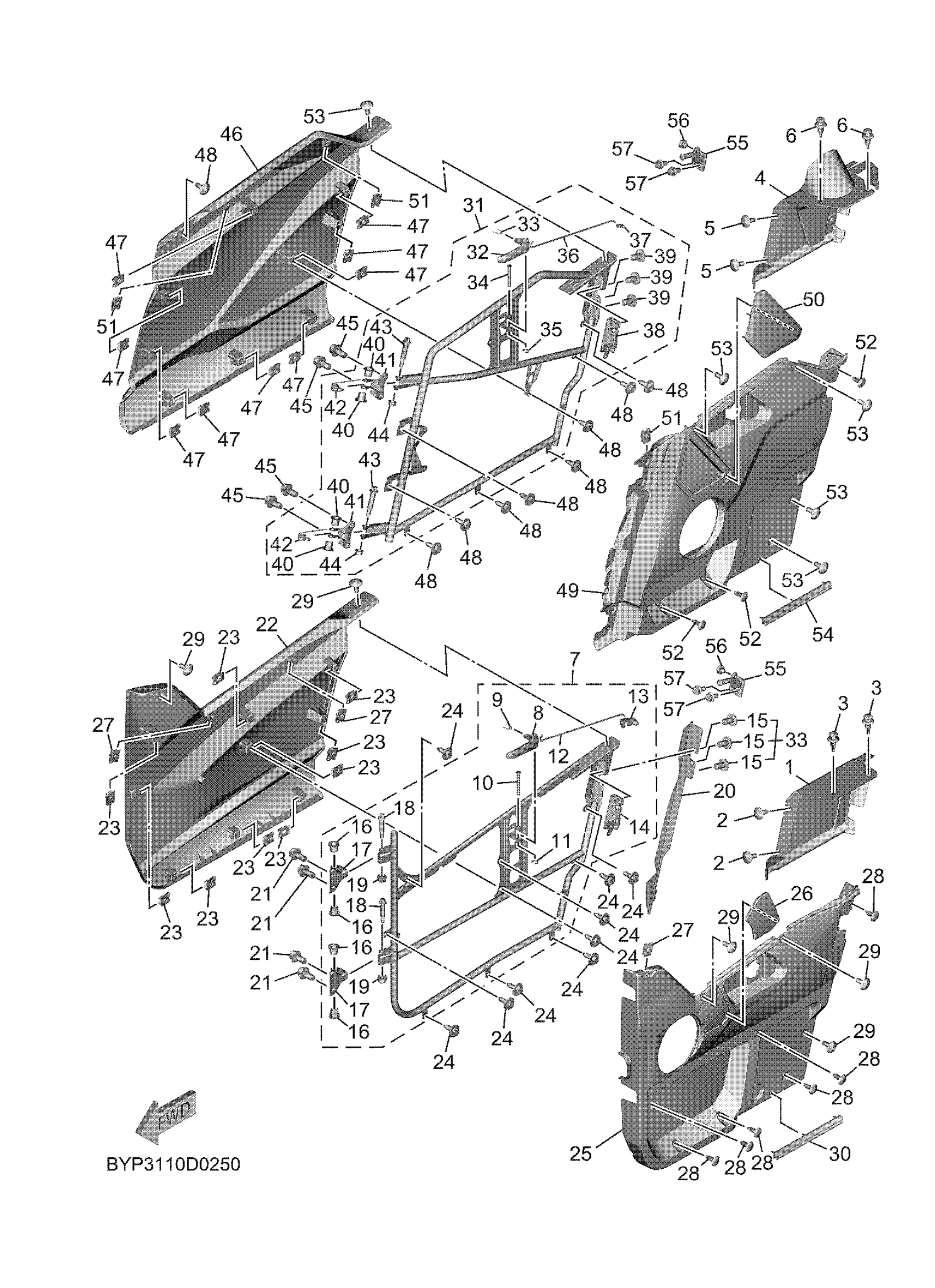

Yamaha YXF10WLLTL (WOLVERINE RMAX4 1000 LE) BYP7 2026 SIDE COVER 2 Diagram

#

Description
Price

1

COVER, SIDE 3

BYP-F1731-00-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

COVER, SIDE 3

B4J-F1731-00-00

$21.99

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

FF. DOOR COMP. RH

B4J-K8505-01-00

$220.99

8

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

9

SPRING

2HC-F1742-00-00

$2.96

10

. PIN

90249-05801-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

Unavailable

12

ROD 2

B4J-F7248-00-00

$4.82

13

CLIP, CABLE

BG4-F2805-01-00

$2.17

14

LOCK ASSY 2

B4J-F16B0-02-00

$53.99

15

SCREW

90149-08805-00

$1.01

16

BUSH, SOLID

90381-08001-00

Unavailable

17

HINGE

B4J-F1796-01-00

Unavailable

18

BOLT

90109-068C9-00

Unavailable

19

NUT, U FLANGE

95604-06200-00

Unavailable

20

PLATE 2

B4J-F191C-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

SIDE COVER COMP. 2

B4J-F17F0-90-00

Unavailable

23

NUT, SPRING

90183-062A1-00

Unavailable

24

BOLT, WITH WASHER

90119-06226-00

Unavailable

25

PNL., DOOR FR. RH

B4J-K8558-00-00

Unavailable

26

PROTECTOR 1

B4J-K811V-01-00

Unavailable

27

NUT, SPRING

90183-062A1-00

Unavailable

28

RIVET(8AB)

90269-05073-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

30

SEAL 2

B4J-F1735-00-00

Unavailable

31

RR. DOOR COMP. RH

BYP-K8508-00-00

Unavailable

32

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

33

SPRING

2HC-F1742-00-00

$2.96

34

. PIN

90249-05801-00

Unavailable

35

CIRCLIP (EU0)

99080-04600-00

Unavailable

36

ROD 2

BYP-F7248-00-00

Unavailable

37

CLIP, CABLE

BG4-F2805-01-00

$2.17

38

LOCK ASSY 2

B4J-F16B0-02-00

$53.99

39

SCREW

90149-08805-00

$1.01

40

BUSH, SOLID

90381-08001-00

Unavailable

41

HINGE

B4J-F1797-02-00

Unavailable

42

HOOK, SPRING

BYP-F5658-01-00

Unavailable

43

BOLT

90109-068C9-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

46

SIDE COVER COMP. 4

BYP-F17H0-30-00

Unavailable

47

NUT, SPRING

90183-062A1-00

Unavailable

48

BOLT, WITH WASHER

90119-06226-00

Unavailable

49

PNL. , DOOR RR. RH

BYP-K8572-00-00

Unavailable

50

PROTECTOR 1

BYP-K811V-00-00

Unavailable

51

NUT, SPRING

90183-062A1-00

Unavailable

52

RIVET(8AB)

90269-05073-00

Unavailable

53

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

54

SEAL 2

B4J-F1735-00-00

Unavailable

55

HOOK, SIDE COVER 2

B4J-F1332-01-00

Unavailable

56

PLUG

90338-10801-00

Unavailable

57

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
