Description

Price

1

WINCH

BAS-F845V-00-00

$604.99

2

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.60

3

HOOK

BAS-F8488-02-00

$44.99

4

PIN

BAS-F818A-00-00

$2.17

5

PIN COTTER

91490-30025-00

$3.99

6

ROLLER

BAS-F178G-03-00

$95.99

7

BOLT, FLANGE

95817-10020-00

$8.49

8

SWITCH ASSY

BKP-H259E-00-00

$116.99

9

CONTACTOR

BAS-H232W-00-00

$172.99

10

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

11

WIRE, INNER 1

B4J-F633K-01-00

$71.99

12

WIRE, INNER 2

B4J-F633L-02-00

$84.99

13

DIODE ASSY

4WA-81980-00-00

$29.99

14

WIRE HARNESS

BKP-H2105-00-00

$77.99

15

NUT, FLANGE

95702-06500-00

$2.39

16

PROTECTOR

BAS-F3472-00-00

Unavailable

17

COVER, LEAD WIRE

5LP-82119-00-00

Unavailable

18

CLAMP(JN6)

90464-40825-00

Unavailable

19

NUT, SPRING

90183-062A1-00

Unavailable

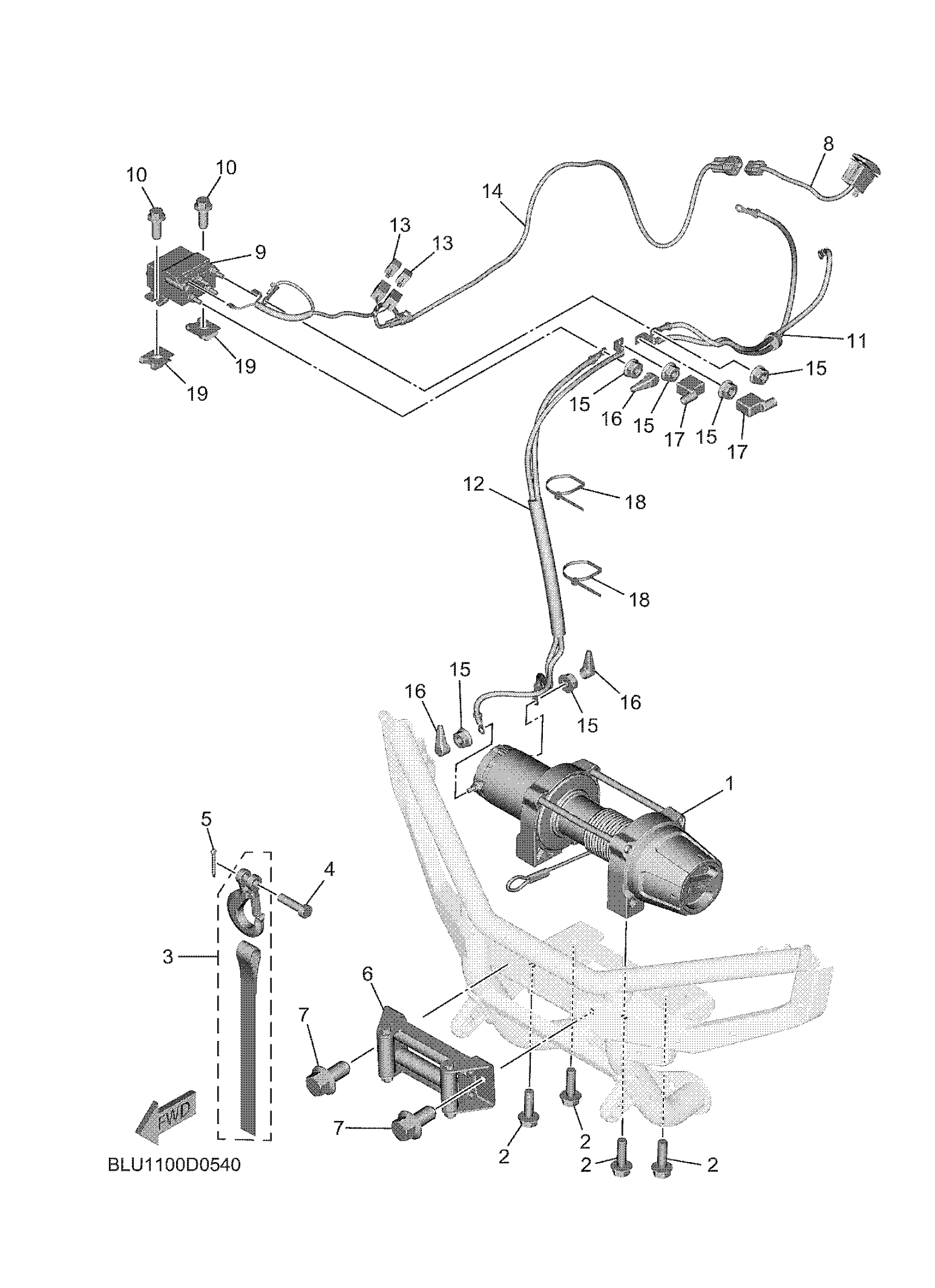

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 WINCH Diagram

WINCH

BOLT, FLANGE DEEP RECESS

HOOK

PIN

PIN COTTER

ROLLER

BOLT, FLANGE

SWITCH ASSY

CONTACTOR

BOLT, FLANGE (SELF TAPPING)

WIRE, INNER 1

WIRE, INNER 2

DIODE ASSY

WIRE HARNESS

NUT, FLANGE

PROTECTOR

COVER, LEAD WIRE

CLAMP(JN6)

NUT, SPRING
