REAR WHEEL

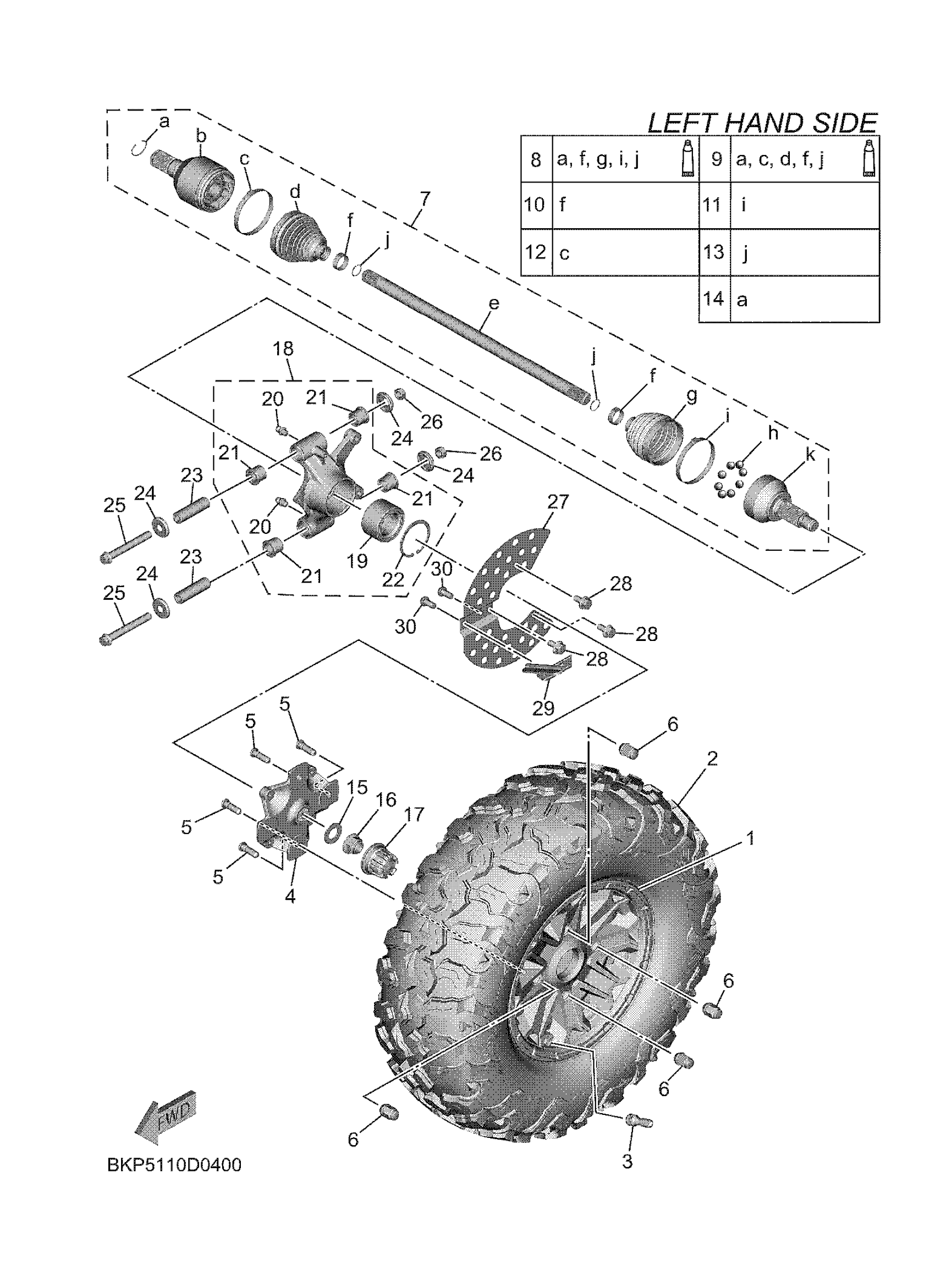

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 REAR WHEEL Diagram
#
1
CAST WHEEL, FRONT
B4J-F5168-20-00
$333.99
2
TIRE (30X10.00R14 ML1 8PR TL)
94110-14809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB, FRONT
B4J-F5111-02-00
$131.99
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12801-00
Unavailable
7
SHAFT, REAR DRIVE
BKP-F53B0-00-00
Unavailable
8
BOOT SET (BALL JOI
B4J-F530X-00-00
$88.99
9
BOOT SET(DOUBLE OF
BKP-F530Y-00-00
$172.99
10
BAND
B4J-F5719-00-00
$10.49
11
BAND
B4J-F639A-00-00
$5.60
12
BAND
B4J-F6293-00-00
$5.60
13
CLIP
B4J-F6397-00-00
$5.60
14
. CLIP
BKP-F4519-00-00
Unavailable
15
WASHER, PLATE
90201-25023-00
$10.49
16
NUT
90179-24006-00
Unavailable
17
CAP, WHEEL
2HC-F512A-00-00
Unavailable
18
REAR KNUCKLE ASSY
BKP-F530F-02-00
Unavailable
19
BEARING
93305-00801-00
Unavailable
20
NIPPLE, GREASE
93700-06M03-00
Unavailable
21
BUSH, SOLID
90381-22001-00
Unavailable
22
CIRCLIP (70R)
93420-72065-00
Unavailable
23
COLLAR
90387-14025-00
Unavailable
24
COVER, THRUST 1
BYP-23517-00-00
Unavailable
25
BOLT, FLANGE
90105-14018-00
Unavailable
26
NUT, SELF-LOCKING
90185-14010-00
Unavailable
27
RING, WHEEL RR. 1
2HC-F534C-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
PLATE, GUIDE 1
2HC-F2341-00-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
