Description

Price

1

PLATE, ADAPTOR

B1R-13461-01-00

Unavailable

2

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

3

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

4

ELEMENT, OIL COOLER

BKP-13480-00-00

Unavailable

5

GROMMET(2GH)

90480-12475-00

$8.49

6

COLLAR

90387-06161-00

$8.49

7

BOLT, FLANGE

95817-06020-00

$3.81

8

HOSE, OIL 1

B4J-1316F-10-00

$196.99

9

HOSE, OIL 2

B4J-1316G-10-00

$196.99

10

O-RING (26H)

93210-14637-00

$7.49

11

BOLT,SOCKET

91317-06025-00

$5.60

12

CLAMP

1NS-F1338-00-00

$3.33

13

OIL PIPE COMP. 1

BYP-13405-00-00

Unavailable

14

OIL PIPE COMP. 2

BYP-13406-00-00

$233.99

15

STAY

B4J-E3151-00-00

$1.69

16

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

17

HOSE 7

B4J-12551-00-00

Unavailable

18

HOSE 8

B4J-12552-00-00

Unavailable

19

O-RING

93210-16006-00

Unavailable

20

BOLT(3MA)

91312-06016-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

Unavailable

22

BOLT, FLANGE

95022-06008-00

Unavailable

23

GASKET 256113960000

90430-06014-00

Unavailable

24

PIPE

BYP-13284-00-00

Unavailable

25

STAY

B4J-E3151-00-00

$1.69

26

RIVET

90269-06800-00

Unavailable

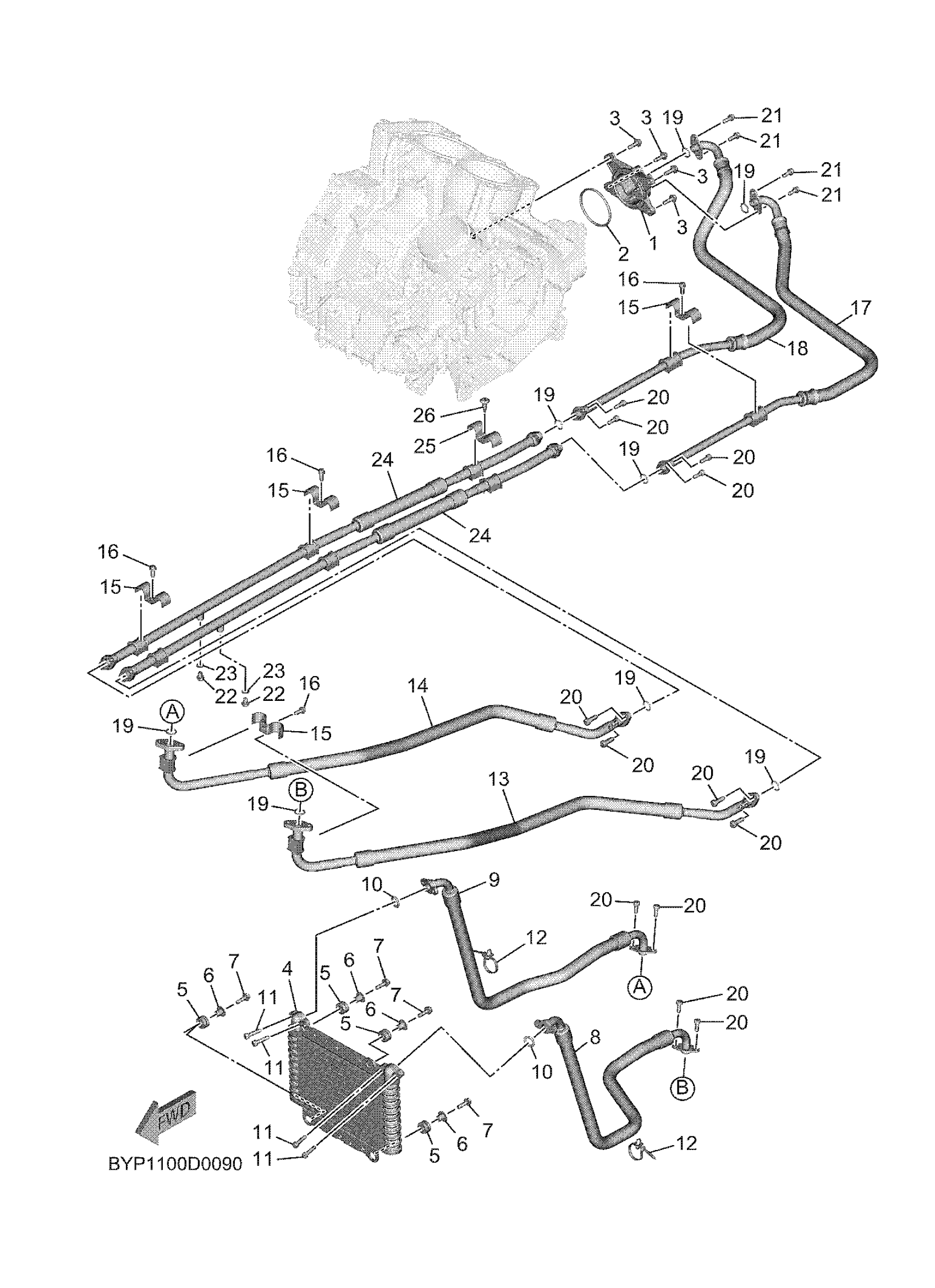

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 OIL COOLER Diagram

PLATE, ADAPTOR

O-RING (583 OIL CLEANER)

BOLT, HEXAGON SOCKET HEAD

ELEMENT, OIL COOLER

GROMMET(2GH)

COLLAR

BOLT, FLANGE

HOSE, OIL 1

HOSE, OIL 2

O-RING (26H)

BOLT,SOCKET

CLAMP

OIL PIPE COMP. 1

OIL PIPE COMP. 2

STAY

BOLT, FLANGE (SELF TAPPING)

HOSE 7

HOSE 8

O-RING

BOLT(3MA)

BOLT, HEXAGON SOCKET HEAD

BOLT, FLANGE

GASKET 256113960000

PIPE

STAY

RIVET
