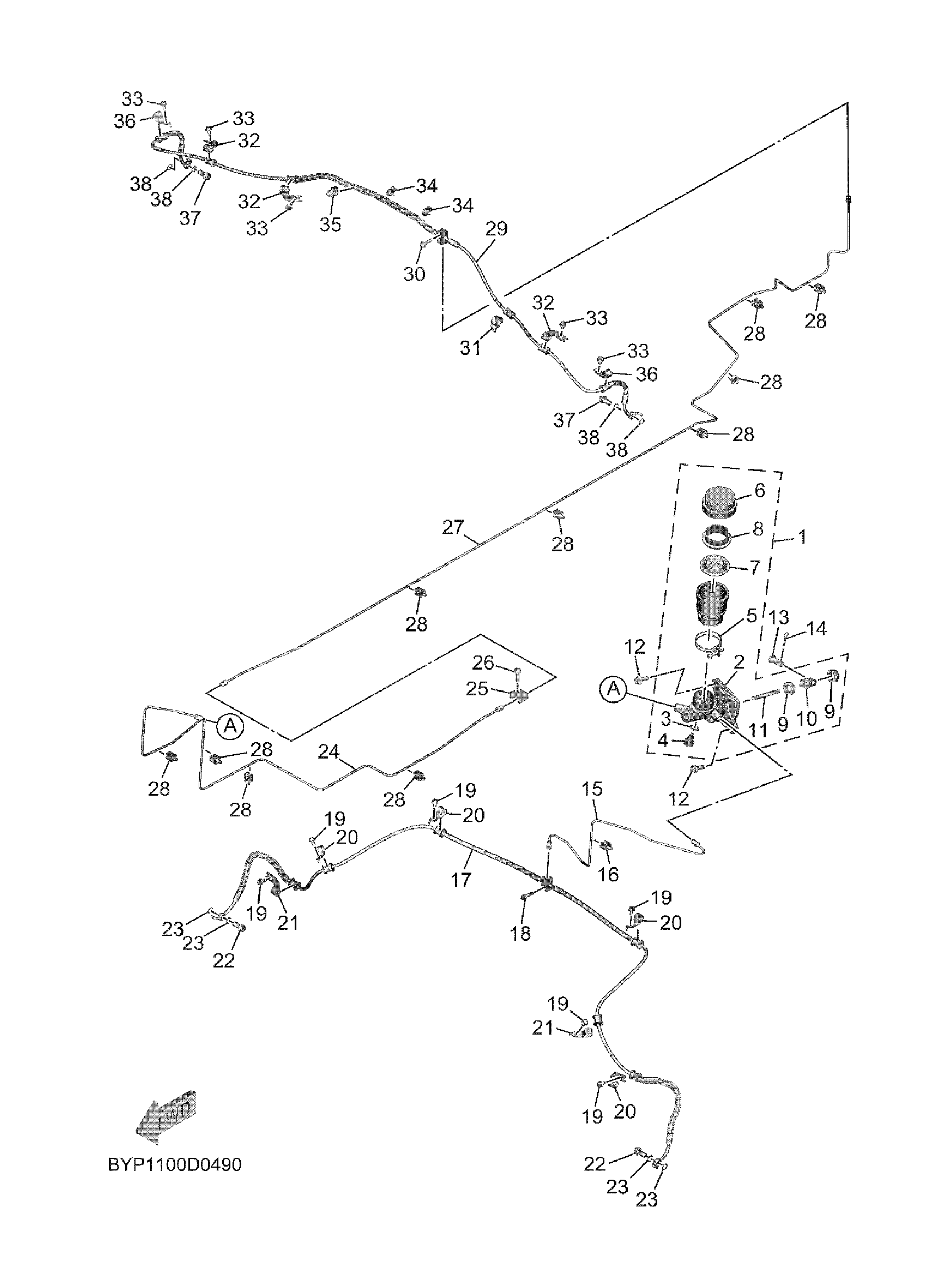

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

2PG-2583T-01-00

Unavailable

2

CYLINDER KIT, MAST

5UG-25808-00-00

Unavailable

3

WASHER, OIL BOLT

5UG-25878-00-00

Unavailable

4

BOLT, OIL 1

5UG-25877-00-00

$0.99

5

BAND

5UG-25719-00-00

$6.99

6

CAP, RESERVOIR

5UG-25852-00-00

$17.49

7

DIAPHRAGM, RESERVOIR

5UG-25854-00-00

$9.99

8

BUSH,DIAPHRAGM

5UG-25855-00-00

$5.49

9

NUT, HEXAGON SMALL

95317-08700-00

$9.49

10

JOINT

2YK-27222-00-00

$21.99

11

PUSH ROD COMP.

5UG-25880-00-00

Unavailable

12

BOLT, FLANGE

90105-08129-00

$4.88

13

PIN, CLEVIS

90240-08005-00

$8.49

14

PIN, COTTER

91490-20025-00

$1.99

15

PIPE, BRAKE 2

B4J-F5882-01-00

$13.49

16

CLAMP 1

5KM-81677-00-00

Unavailable

17

HOSE, BRAKE 1

BKP-F5872-01-00

Unavailable

18

BOLT, FLANGE

95817-06025-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable

20

HOLDER, BRAKE HOSE

3B4-25886-00-00

Unavailable

21

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

22

BOLT, UNION

90401-10015-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

PIPE, BRAKE

BYP-F5871-00-00

Unavailable

25

JOINT

BYP-F5885-00-00

Unavailable

26

BOLT, FLANGE

90105-06833-00

Unavailable

27

PIPE, BRAKE 3

BYP-F5883-00-00

Unavailable

28

CLAMP 1

5KM-81677-00-00

Unavailable

29

HOSE, BRAKE 2

BKP-F5873-01-00

Unavailable

30

BOLT, FLANGE

90105-06833-00

Unavailable

31

CLAMP

90464-16012-00

Unavailable

32

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

33

BOLT, FLANGE

95812-06010-00

Unavailable

34

CLAMP(3XV)

90464-15157-00

Unavailable

35

CLAMP

90464-16006-00

Unavailable

36

HOLDER, BRAKE HOSE

3B4-25886-00-00

Unavailable

37

BOLT, UNION

90401-10015-00

Unavailable

38

WASHER, PLATE(481)

90201-10118-00

Unavailable
