- YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025
FUEL TANK

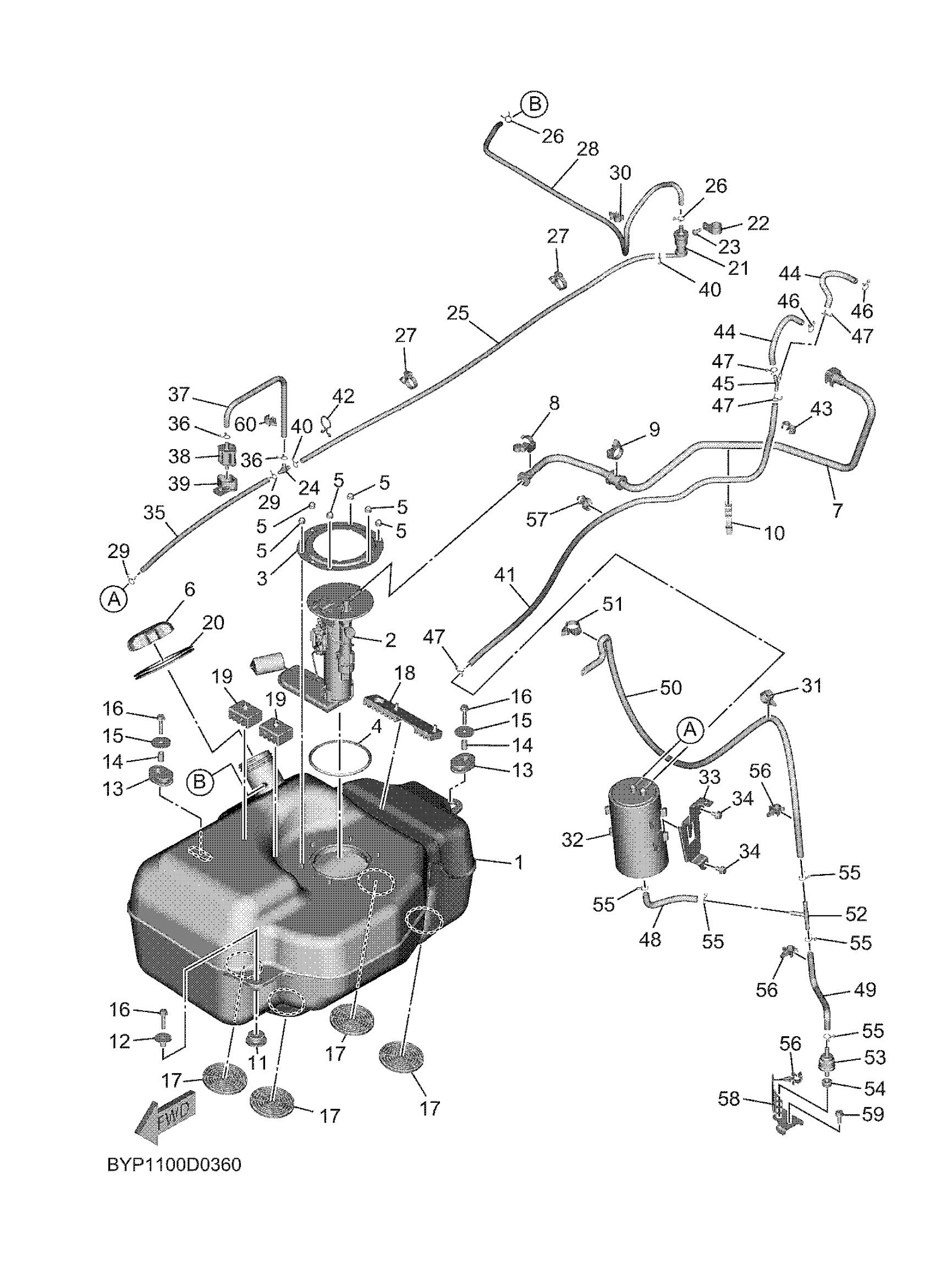

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-01-00
Unavailable
2
FUEL PUMP COMP.
B4J-13907-00-00
$367.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
CAP ASSY
BKP-24610-00-00
Unavailable
7
PIPE, FUEL 1
B4J-13971-00-00
Unavailable
8
CLAMP
90464-14004-00
$7.49
9
CLAMP
90464-20010-00
$3.23
10
CLAMP
90464-10009-00
Unavailable
11
GROMMET
90480-18016-00
$8.49
12
COLLAR
90387-07021-00
$7.49
13
GROMMET(38W)
90480-01400-00
$13.49
14
COLLAR(2UJ)
90387-061V1-00
$8.49
15
WASHER (23T)
90201-065G8-00
$8.49
16
BOLT, FLANGE
95812-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
22
CLAMP
90464-15014-00
Unavailable
23
SCREW, BINDING
98907-05012-00
Unavailable
24
WAY 3
90413-06031-00
Unavailable
25
HOSE
90445-09133-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
CLAMP
90464-20010-00
$3.23
28
HOSE 2
BYP-2247B-00-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
30
CLAMP(3LD)
90464-09129-00
Unavailable
31
CLAMP
90464-20010-00
$3.23
32
CANISTER ASSY
7CC-F4170-02-00
Unavailable
33
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
34
BOLT, FLANGE
95812-06010-00
Unavailable
35
HOSE
90445-09134-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
HOSE 4
BYP-2247D-00-00
Unavailable
38
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
39
BAND 1
3B4-24398-00-00
Unavailable
40
CLIP
90467-090A2-00
Unavailable
41
HOSE
90445-10070-00
Unavailable
42
CLAMP
90464-25267-00
Unavailable
43
CLAMP(6M7)
90464-09M31-00
Unavailable
44
HOSE (L130)
90445-10017-00
Unavailable
45
WAY 3 (73A)
90413-05013-00
Unavailable
46
CLIP
90467-100A1-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
48
PIPE 5
BG4-24315-00-00
Unavailable
49
PIPE 11
BYP-24322-00-00
Unavailable
50
HOSE (L1010)
90445-11100-00
Unavailable
51
CLAMP
90464-20010-00
$3.23
52
WAY (70R)
90413-08012-00
Unavailable
53
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
54
GROMMET
90480-10003-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
CLAMP
90464-14M55-00
Unavailable
57
CLAMP
90464-20010-00
$3.23
58
BRACKET 1
BYP-F148U-00-00
Unavailable
59
BOLT, FLANGE
90105-06831-00
Unavailable
60
CLAMP(3LD)
90464-09129-00
Unavailable
