Description

Price

1

SHAFT

BYP-4633G-00-00

Unavailable

2

COUPLING

BYP-17832-00-00

Unavailable

3

BEARING ASSY

BYP-46106-00-00

Unavailable

4

BEARING (30X)

93306-20447-00

$41.99

5

OIL SEAL

93102-30010-00

$16.99

6

OIL SEAL(76K)

93102-30339-00

$15.99

7

RUBBER SHAFT COUPL

BYP-4581J-00-00

Unavailable

8

YOKE, JOINT

BYP-17556-00-00

Unavailable

9

NUT

90179-16015-00

Unavailable

10

WASHER, PLATE

90201-16021-00

$8.49

11

SPIDER

1YW-46187-10-00

Unavailable

12

BEARING

93399-99965-00

$25.99

13

CIRCLIP

93440-23197-00

$3.28

14

YOKE, JOINT 2

BG4-46147-00-00

Unavailable

15

SHAFT, DRIVE

BYP-G6172-00-00

Unavailable

16

SEAL 2

BDW-46137-00-00

Unavailable

17

DAMPER

5KM-46559-00-00

Unavailable

18

WASHER, PLATE (3Y1)

90201-22793-00

Unavailable

19

SPRING, COMPRESSION(3HN)

90501-234F8-00

Unavailable

20

CIRCLIP(1EY)

99009-22400-00

Unavailable

21

SEAL 1

BG4-46136-00-00

Unavailable

22

COVER 1

2PG-4613F-00-00

Unavailable

23

BOLT, FLANGE

95812-08020-00

Unavailable

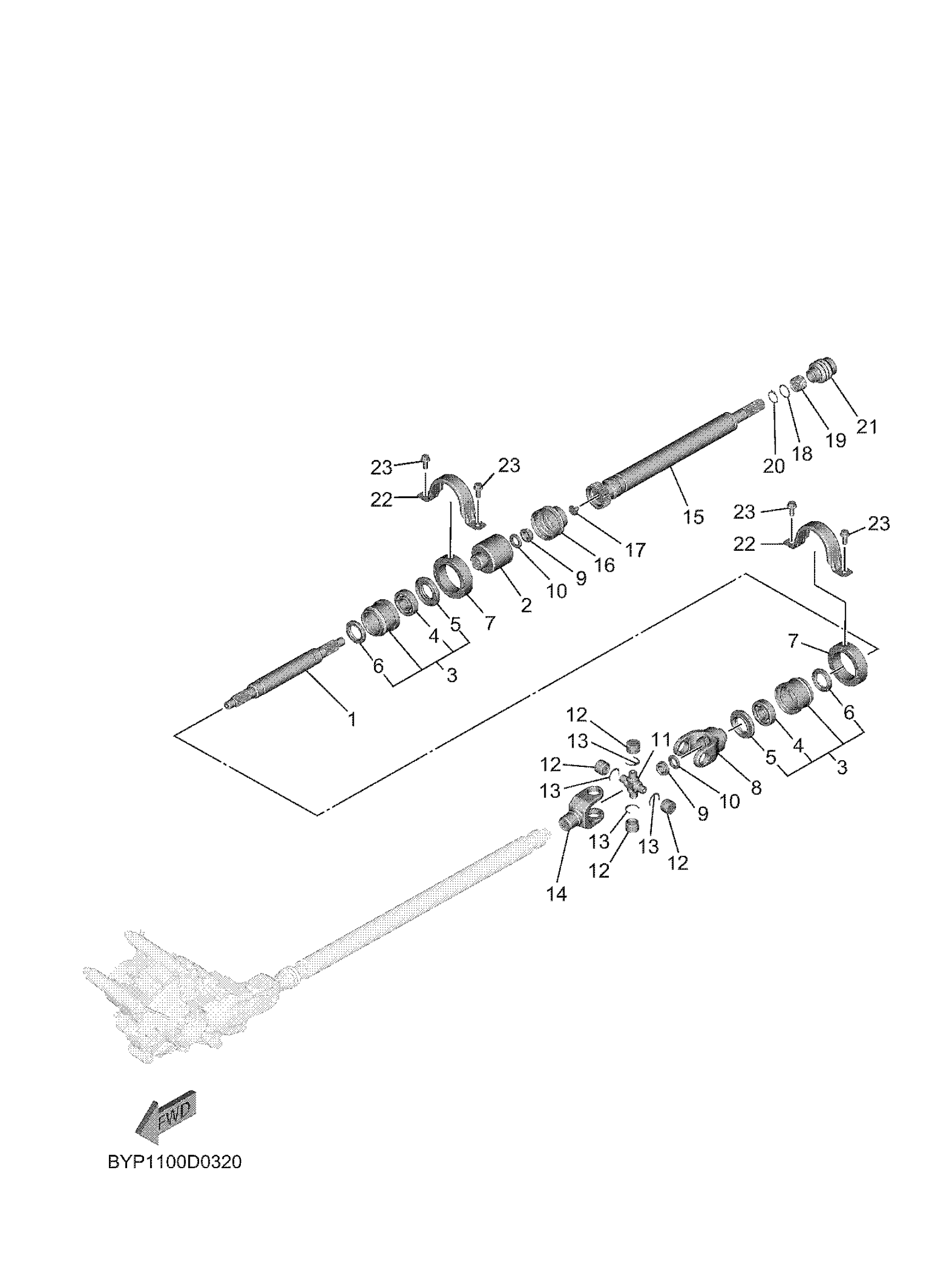

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 FRONT DIFFERENTIAL 2 Diagram

SHAFT

COUPLING

BEARING ASSY

BEARING (30X)

OIL SEAL

OIL SEAL(76K)

RUBBER SHAFT COUPL

YOKE, JOINT

NUT

WASHER, PLATE

SPIDER

BEARING

CIRCLIP

YOKE, JOINT 2

SHAFT, DRIVE

SEAL 2

DAMPER

WASHER, PLATE (3Y1)

SPRING, COMPRESSION(3HN)

CIRCLIP(1EY)

SEAL 1

COVER 1

BOLT, FLANGE
