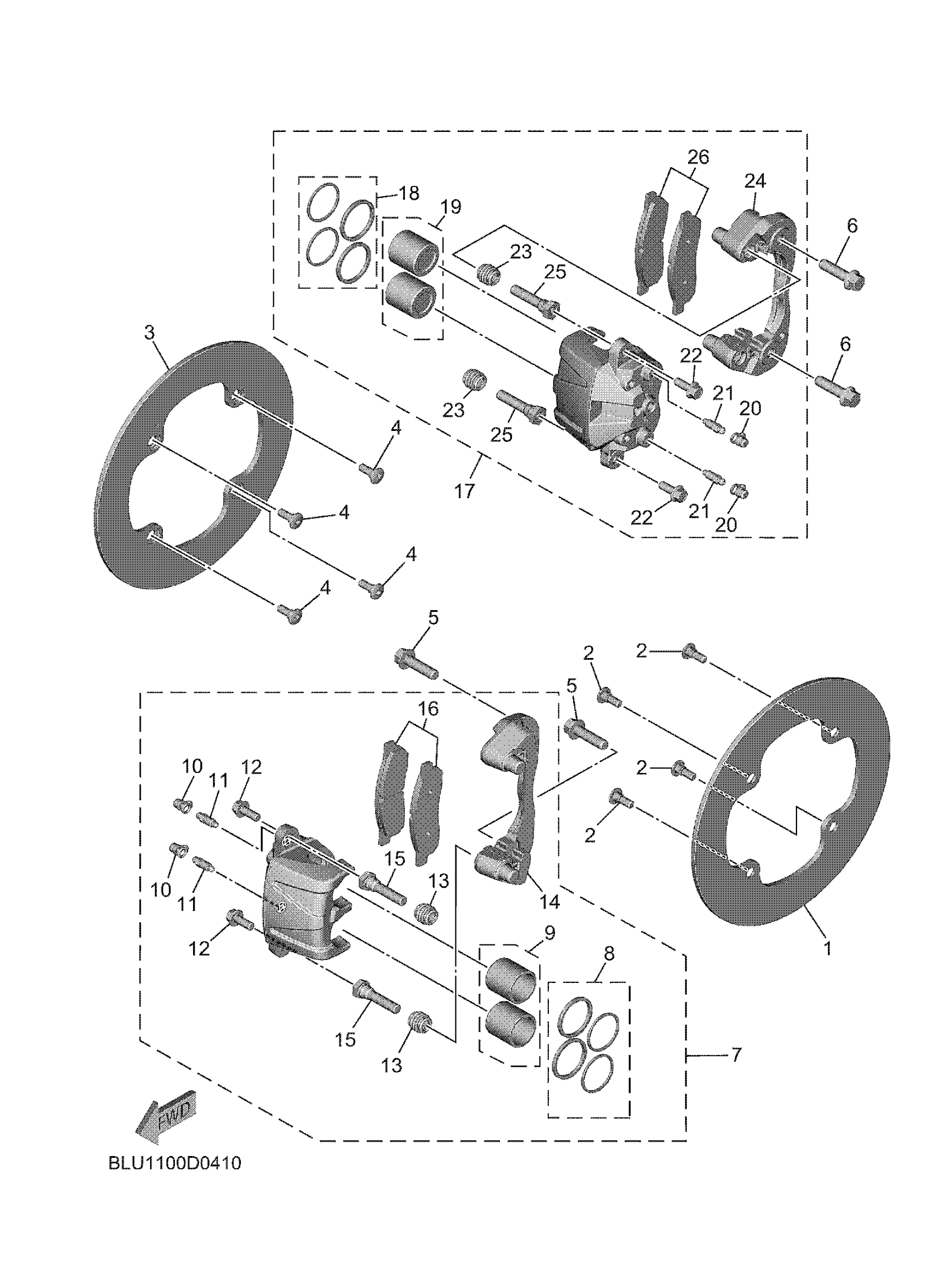

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$62.99

2

BOLT

90109-08077-00

$8.49

3

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$62.99

4

BOLT

90109-08077-00

$8.49

5

BOLT, FLANGE

90105-10405-00

$5.60

6

BOLT, FLANGE

90105-10405-00

$5.60

7

CALIPER ASSY (LEFT

BKP-F580T-00-00

$313.99

8

CALIPER SEAL KIT

BKP-F5803-00-00

Unavailable

9

PISTON ASSY, CALIP

BKP-F5802-00-00

Unavailable

10

CAP

BKP-F5825-00-00

$15.99

11

SCREW, BLEED

BKP-F5824-00-00

$18.99

12

BOLT, FITTING

BKP-F5833-00-00

Unavailable

13

BOOT, CALIPER

BKP-F5917-00-00

$19.99

14

BRACKET, CALIPER

BKP-F5819-00-00

Unavailable

15

BOLT

BKP-F5926-00-00

Unavailable

16

BRAKE PAD KIT

BKP-F5805-00-00

Unavailable

17

CALIPER ASSY (LEFT

BKP-F580T-00-00

$313.99

18

CALIPER SEAL KIT

BKP-F5803-00-00

Unavailable

19

PISTON ASSY, CALIP

BKP-F5802-00-00

Unavailable

20

CAP

BKP-F5825-00-00

$15.99

21

SCREW, BLEED

BKP-F5824-00-00

$18.99

22

BOLT, FITTING

BKP-F5833-00-00

Unavailable

23

BOOT, CALIPER

BKP-F5917-00-00

$19.99

24

BRACKET, CALIPER

BKP-F5819-00-00

Unavailable

25

BOLT

BKP-F5926-00-00

Unavailable

26

BRAKE PAD KIT

BKP-F5805-00-00

Unavailable
