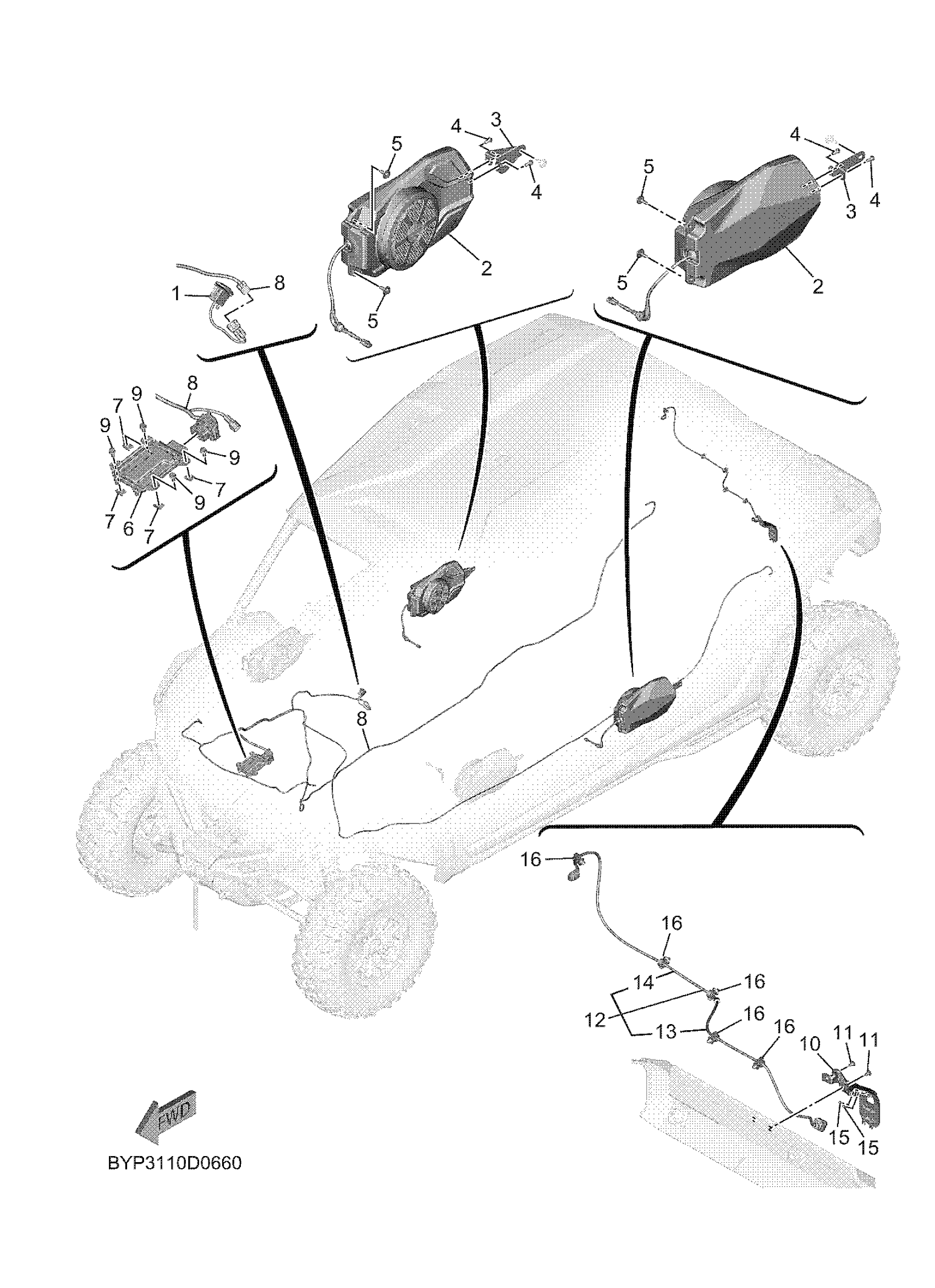

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 ELECTRICAL 5 Diagram

#

Description
Price

1

SWITCH ASSY

B4J-H1860-01-00

$127.99

2

SPEAKER 1

BKP-H8161-11-00

Unavailable

3

BRACKET

BKP-H1948-00-00

Unavailable

4

SCREW, SPECIAL

BKP-H3358-00-00

$7.49

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

CONTROL UNIT ASSY

B4J-H1930-00-00

$500.99

7

NUT, SPRING

90183-062A1-00

$1.96

8

WIRE, SUB LEAD

BYP-H8189-00-00

$212.99

9

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$8.49

10

BRACKET COMPLETE

BKP-H182J-00-00

Unavailable

11

RIVET(81E)

90269-05055-00

$8.49

12

CAMERA UNIT ASSY.

BKP-H62C0-01-00

$205.99

13

CABLE 1

BKP-H8146-00-00

$265.99

14

CABLE 2

BKP-H8147-00-00

$32.99

15

SCREW

90149-02800-00

$0.85

16

CLAMP

90464-12830-00

Unavailable
