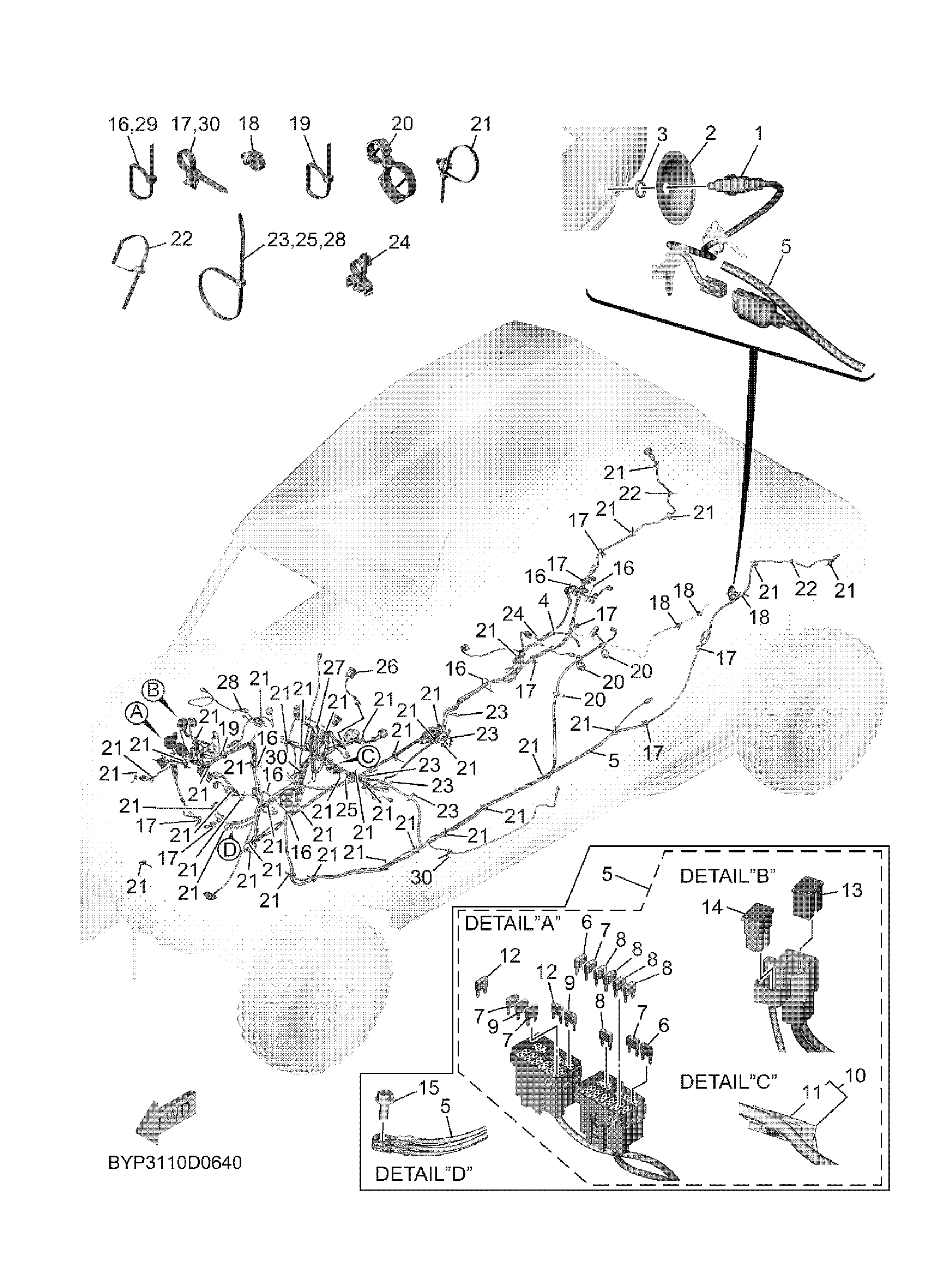

Yamaha YXF10WLLSL (WOLVERINE RMAX4 1000 LE) BYP3 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

SENSOR, OXYGEN

1WS-8592A-10-00

$224.99

2

PLATE

B4J-E4255-00-00

$2.12

3

GASKET

B4J-11198-00-00

$5.49

4

WIRE, MINUS LEAD

BYP-82116-00-00

Unavailable

5

WIRE HARNESS ASSY

BYP-82590-00-00

Unavailable

6

FUSE

5JJ-82151-60-00

$7.99

7

FUSE (15A)

67F-82151-50-00

Unavailable

8

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$43.99

11

THERMO SWITCH ASSY

5B4-82560-00-00

$56.99

12

FUSE

5JJ-82151-20-00

$7.99

13

FUSE

BDW-82151-D0-00

$10.49

14

FUSE (50A)

BMG-82151-B0-00

$2.65

15

BOLT, FLANGE

90105-06831-00

$2.29

16

CLAMP

90464-48800-00

Unavailable

17

CLAMP(2TV)

90464-10112-00

Unavailable

18

CLAMP

90464-12830-00

Unavailable

19

CLAMP

90464-51800-00

Unavailable

20

CLAMP

90464-36008-00

Unavailable

21

CLAMP

1NS-F1338-00-00

Unavailable

22

CLAMP(JN6)

90464-31827-00

Unavailable

23

CLAMP(JN6)

90464-40825-00

Unavailable

24

CLAMP

90464-10009-00

Unavailable

25

CLAMP(JN6)

90464-40825-00

Unavailable

26

SWITCH

BKP-H2917-00-00

Unavailable

27

WIRE, LEAD

BYP-H2117-00-00

Unavailable

28

CLAMP(JN6)

90464-40825-00

Unavailable

29

CLAMP

90464-48800-00

Unavailable

30

CLAMP(2TV)

90464-10112-00

Unavailable
