- YXE85WTZTM (WOLVERINE X2 850 XT R) DD63 2026
SIDE COVER 2

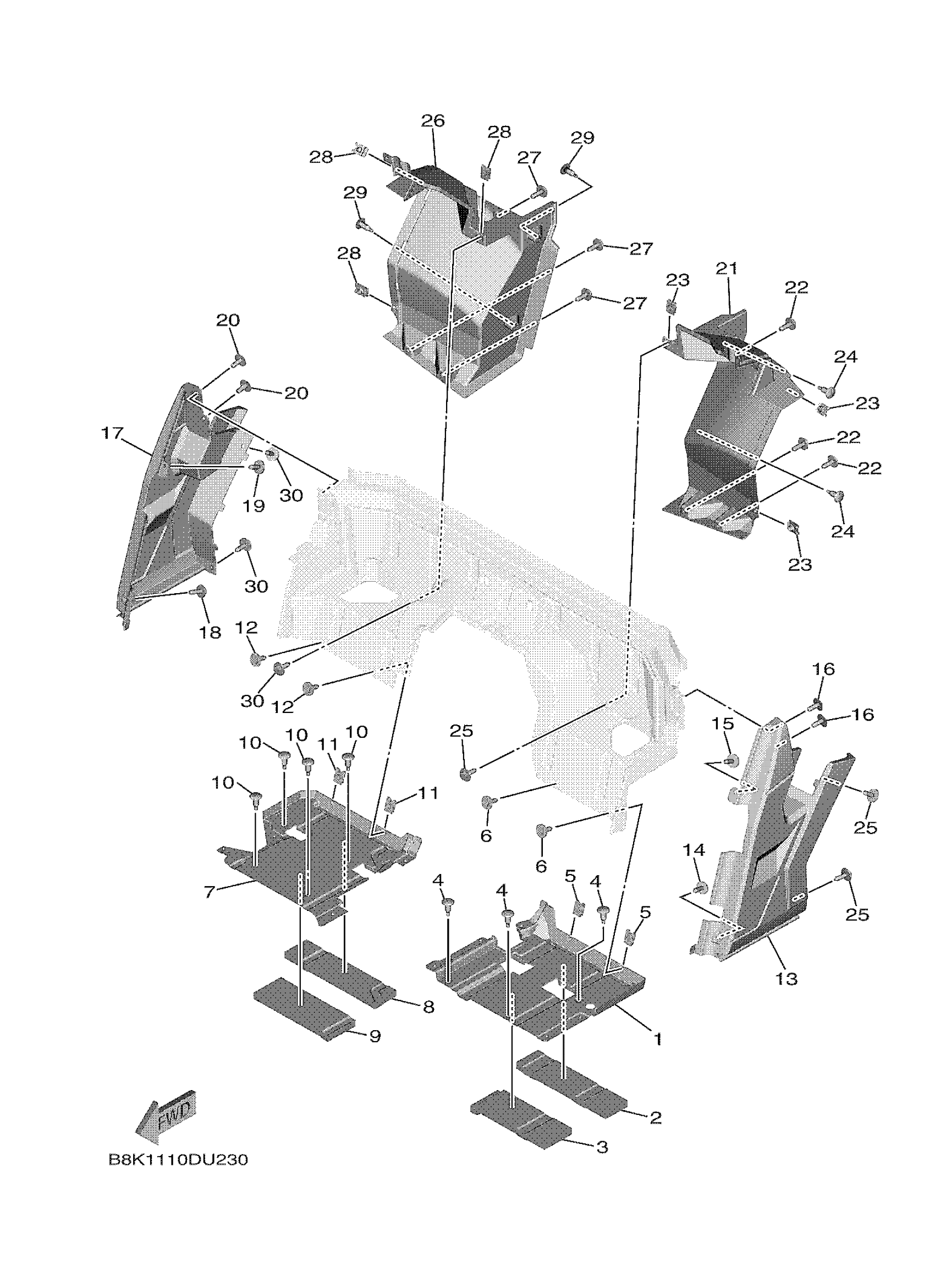

Yamaha YXE85WTZTM (WOLVERINE X2 850 XT R) DD63 2026 SIDE COVER 2 Diagram
#
1
PLATE
B8K-F84A3-01-00
$29.99
2
INSULATOR 5
B8K-F174S-00-00
$7.49
3
INSULATOR, SIDE CO
B8K-F174T-00-00
$7.49
4
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
5
NUT, SPRING
90183-062A1-00
$1.96
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
7
PLATE, UNDER 2
B8K-F84A4-00-00
$28.99
8
INSULATOR 5
B8K-F174S-00-00
$7.49
9
INSULATOR, SIDE CO
B8K-F174T-00-00
$7.49
10
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
11
NUT, SPRING
90183-062A1-00
$1.96
12
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
13
COVER, SIDE 4
B8K-F1741-00-00
$29.99
14
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
15
BOLT, WITH WASHER
90119-06226-00
$8.49
16
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
17
COVER, SIDE 5
B8K-F171E-00-00
Unavailable
18
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
19
BOLT, WITH WASHER
90119-06226-00
$8.49
20
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
21
MUD GUARD 1
B8K-F2327-00-00
Unavailable
22
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
23
NUT, SPRING
90183-062A1-00
$1.96
24
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
26
MUD GUARD 2
B8K-F2328-00-00
Unavailable
27
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
28
NUT, SPRING
90183-062A1-00
$1.96
29
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
