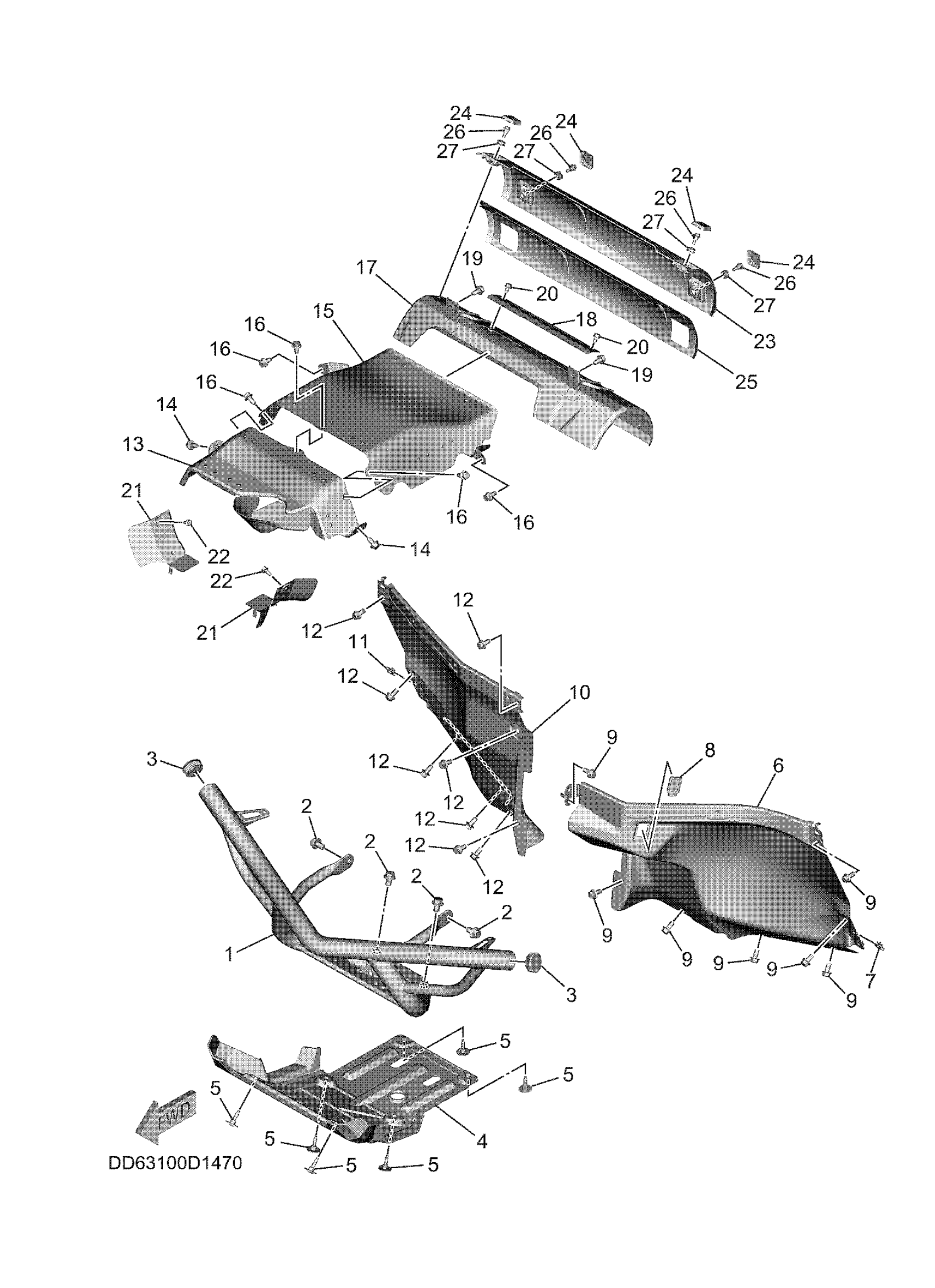

Yamaha YXE85WTZTM (WOLVERINE X2 850 XT R) DD63 2026 GUARD Diagram
#
Description
Price
1
BAR, CARRY FRONT
BAR-F845N-11-00
$234.99
2
BOLT, FLANGE
95812-10016-00
$9.49
3
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
4
COVER, LOWER
2MB-F8385-01-00
$44.99
5
BOLT
90109-068A5-00
$7.49
6
GUARD 1
BYP-F2361-01-00
Unavailable
7
NUT, SPRING
90183-062A1-00
$1.96
8
PLUG, HOLE
BG4-F312G-00-00
$1.64
9
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
10
GUARD 2
BYP-F2362-01-00
Unavailable
11
NUT, SPRING
90183-062A1-00
$1.96
12
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
13
INSULATOR, HEAT
BG4-F2898-02-00
$65.99
14
BOLT, FLANGE
90105-08867-00
$15.99
15
SHIELD, HEAT
BG4-F3892-02-00
Unavailable
16
BOLT, FLANGE
90105-08867-00
$15.99
17
INSULATOR,MOUNTING
BG4-F2891-01-00
Unavailable
18
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
19
BOLT, FLANGE
90105-08867-00
$15.99
20
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
21
PROTECTOR 1
BAR-F2825-00-00
Unavailable
22
BOLT, FLANGE
90105-08867-00
$15.99
23
PROTECTOR, MUFFLER
B8K-F194H-00-00
Unavailable
24
CAP
2MB-F143A-00-00
Unavailable
25
INSULATOR, HEAT
B8K-F2898-01-00
Unavailable
26
BOLT
90109-06262-00
Unavailable
27
GROMMET
90480-12025-00
Unavailable
