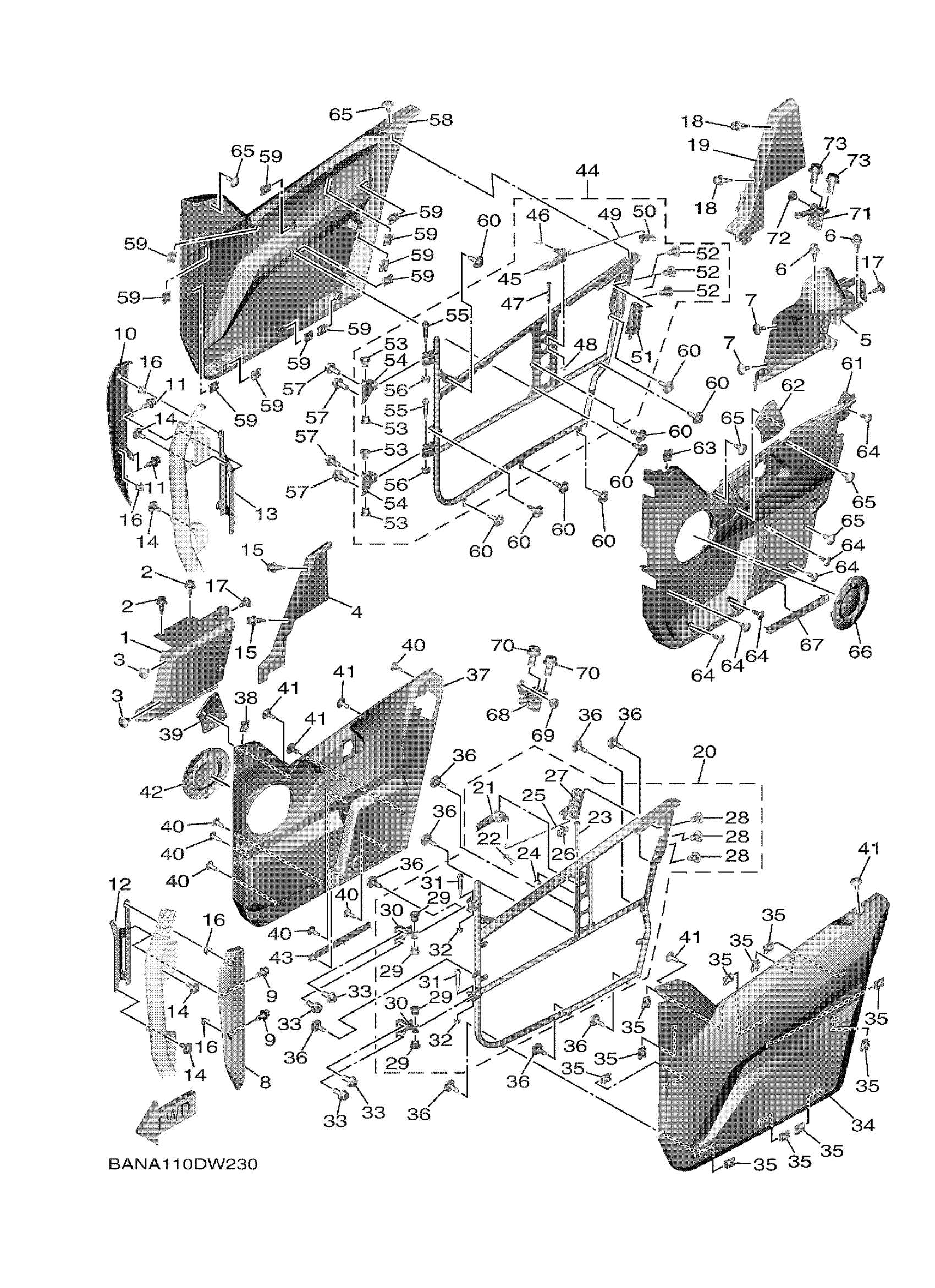

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 SIDE COVER Diagram
#
1
COVER, SIDE 2
B4J-F1721-01-00
$109.99
2
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
3
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
4
COVER, SIDE 1
BAN-F2864-00-00
$13.99
5
COVER, SIDE 3
B4J-F1731-00-00
$21.99
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
8
SIDE COVER ASSY 1
BAR-F1710-40-00
$127.99
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
SIDE COVER ASSY 2
BAR-F1720-40-00
Unavailable
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
12
STAY, SIDE COVER 1
BAR-F172E-00-00
$18.99
13
STAY, SIDE COVER 2
BAR-F174E-00-00
$18.99
14
BOLT, WITH WASHER
90119-06200-00
Unavailable
15
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
16
CLIP
90468-040A0-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
18
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
19
COVER, SIDE 2
BAN-F2868-00-00
Unavailable
20
FF. DOOR COMP. LH
B4J-K8504-01-00
Unavailable
21
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
22
SPRING
2HC-F1742-00-00
Unavailable
23
. PIN
90249-05801-00
Unavailable
24
CIRCLIP (EU0)
99080-04600-00
Unavailable
25
ROD 1
B4J-F7247-00-00
Unavailable
26
CLIP, CABLE
BG4-F2805-01-00
Unavailable
27
LOCK ASSY
B4J-F16A0-02-00
Unavailable
28
SCREW
90149-08805-00
Unavailable
29
BUSH, SOLID
90381-08001-00
Unavailable
30
HINGE
B4J-F1796-01-00
Unavailable
31
BOLT
90109-068C9-00
Unavailable
32
NUT, U FLANGE
95604-06200-00
Unavailable
33
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
34
SIDE COVER COMP. 1
BAR-F17E0-50-00
Unavailable
35
NUT, SPRING
90183-062A1-00
Unavailable
36
BOLT, WITH WASHER
90119-06226-00
Unavailable
37
PNL., DOOR FR. LH
B4J-K8557-00-00
Unavailable
38
PROTECTOR 1
B4J-K811V-01-00
Unavailable
39
NUT, SPRING
90183-062A1-00
Unavailable
40
RIVET(8AB)
90269-05073-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
42
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
43
SEAL 2
B4J-F1735-00-00
Unavailable
44
FF. DOOR COMP. RH
B4J-K8505-01-00
Unavailable
45
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
46
SPRING
2HC-F1742-00-00
Unavailable
47
. PIN
90249-05801-00
Unavailable
48
CIRCLIP (EU0)
99080-04600-00
Unavailable
49
ROD 2
B4J-F7248-00-00
Unavailable
50
CLIP, CABLE
BG4-F2805-01-00
Unavailable
51
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
52
SCREW
90149-08805-00
Unavailable
53
BUSH, SOLID
90381-08001-00
Unavailable
54
HINGE
B4J-F1796-01-00
Unavailable
55
BOLT
90109-068C9-00
Unavailable
56
NUT, U FLANGE
95604-06200-00
Unavailable
57
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
58
SIDE COVER COMP. 2
BAR-F17F0-50-00
Unavailable
59
NUT, SPRING
90183-062A1-00
Unavailable
60
BOLT, WITH WASHER
90119-06226-00
Unavailable
61
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
62
PROTECTOR 1
B4J-K811V-01-00
Unavailable
63
NUT, SPRING
90183-062A1-00
Unavailable
64
RIVET(8AB)
90269-05073-00
Unavailable
65
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
66
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
67
SEAL 2
B4J-F1735-00-00
Unavailable
68
HOOK, SIDE COVER 1
B4J-F1331-01-00
Unavailable
69
PLUG
90338-10801-00
Unavailable
70
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
71
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
72
PLUG
90338-10801-00
Unavailable
73
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
