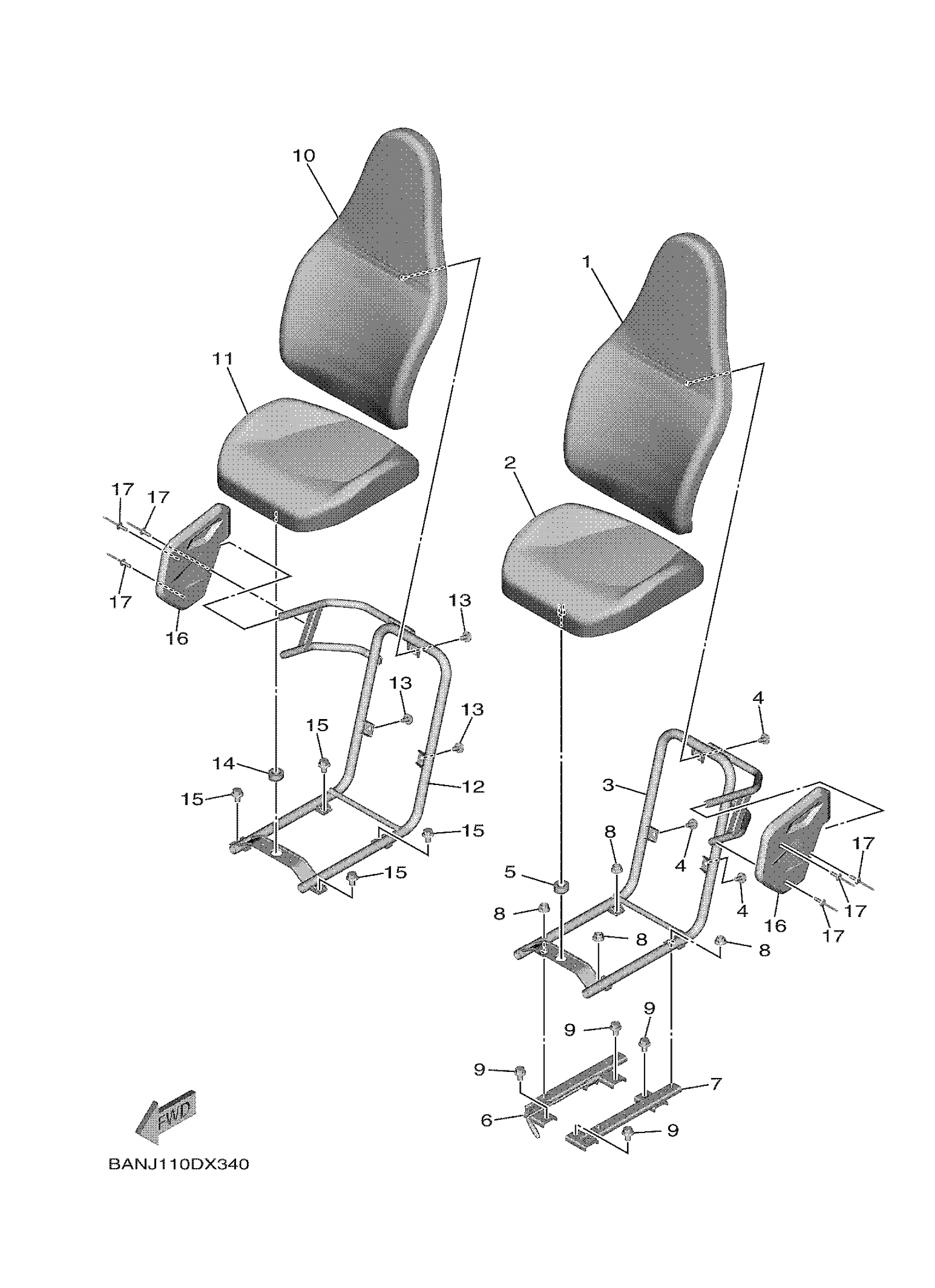

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-02-00

$234.54

2

SEAT ASSY 2

BAR-K8420-01-00

$147.00

3

FRAME, SEAT 1

B4J-F473C-02-00

$124.85

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

5

GROMMET

1XD-F4742-00-00

$3.04

6

ADJUSTER ASSY

B4J-F7270-01-00

$47.09

7

ADJUSTER ASSY

B4J-F7260-01-00

$36.64

8

NUT, SELF-LOCKING

95602-08200-00

$2.69

9

BOLT, FLANGE

95817-08012-00

$3.71

10

SEAT BACK ASSY

BAR-F4790-02-00

$234.54

11

SEAT ASSY 2

BAR-K8420-01-00

$147.00

12

FRAME, SEAT 2

B4J-F473D-02-00

$133.55

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

14

GROMMET

1XD-F4742-00-00

$3.04

15

BOLT, FLANGE

95817-08012-00

$3.71

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
