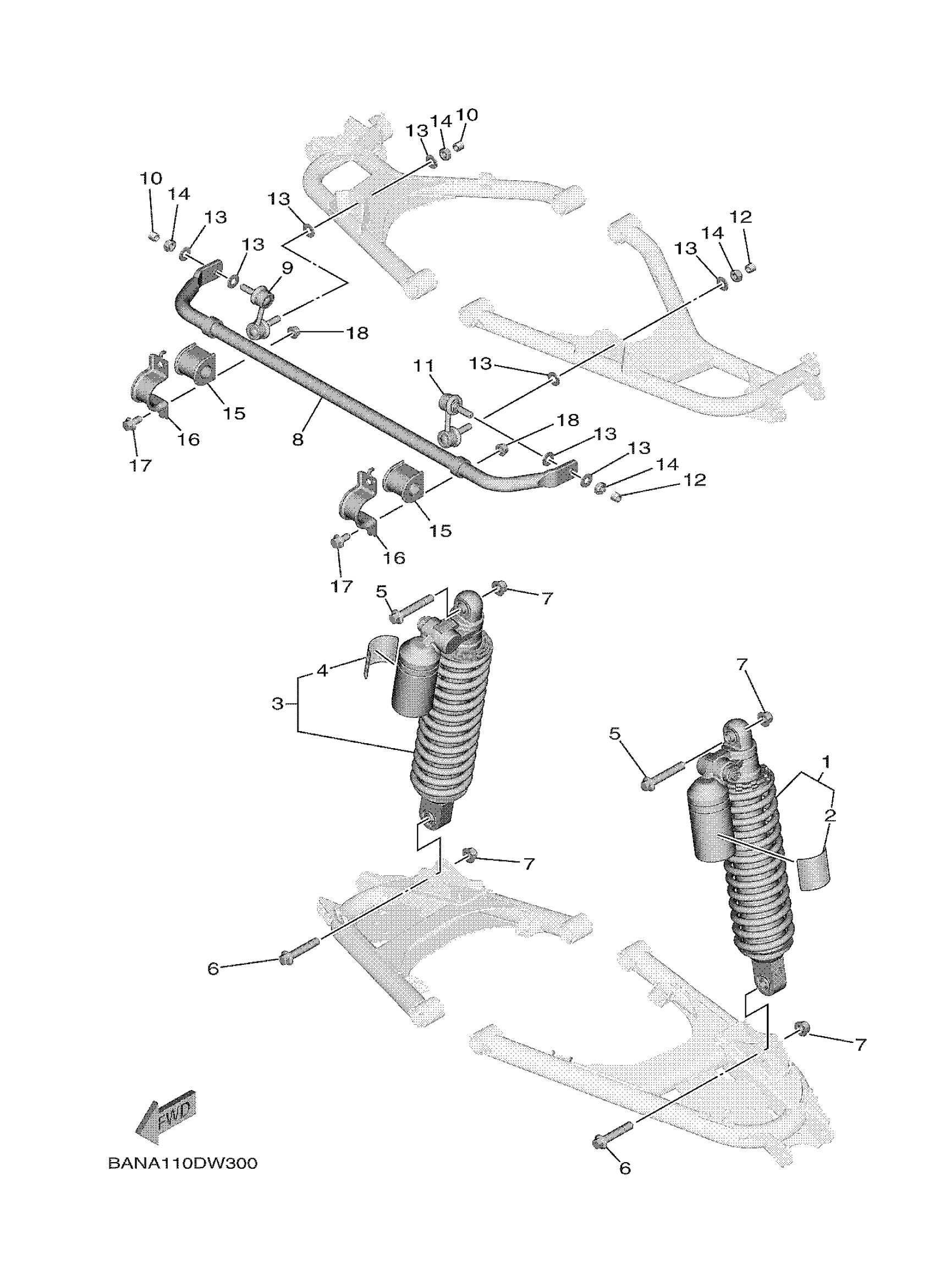

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 REAR SUSPENSION Diagram

RR. SHOCK ABSORBER ASSY. ,1

B8K-F220T-91-00

$561.36

LABEL, WARNING

B4J-F2259-00-00

$1.38

RR. SHOCK ABSORBER ASSY. ,2

B8K-F220U-91-00

$527.30

LABEL, WARNING

B4J-F2259-00-00

$1.38

BOLT, FLANGE

90105-12095-00

$7.16

BOLT, FLANGE

90105-12051-00

$7.77

NUT, SELF-LOCKING

90185-12002-00

$9.38

BAR, STABILIZER

BG4-G7491-02-00

$101.44

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

HOSE (L11)

90445-13029-00

Unavailable

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

HOSE (L11)

90445-13029-00

Unavailable

WASHER, PLATE

90201-10035-00

$3.33

NUT, SELF-LOCKING

90185-10012-00

$2.78

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

COVER, STABILIZER

1XD-F386H-00-00

Unavailable

BOLT, FLANGE

90105-10489-00

Unavailable

NUT, SELF-LOCKING

90185-10818-00

Unavailable
