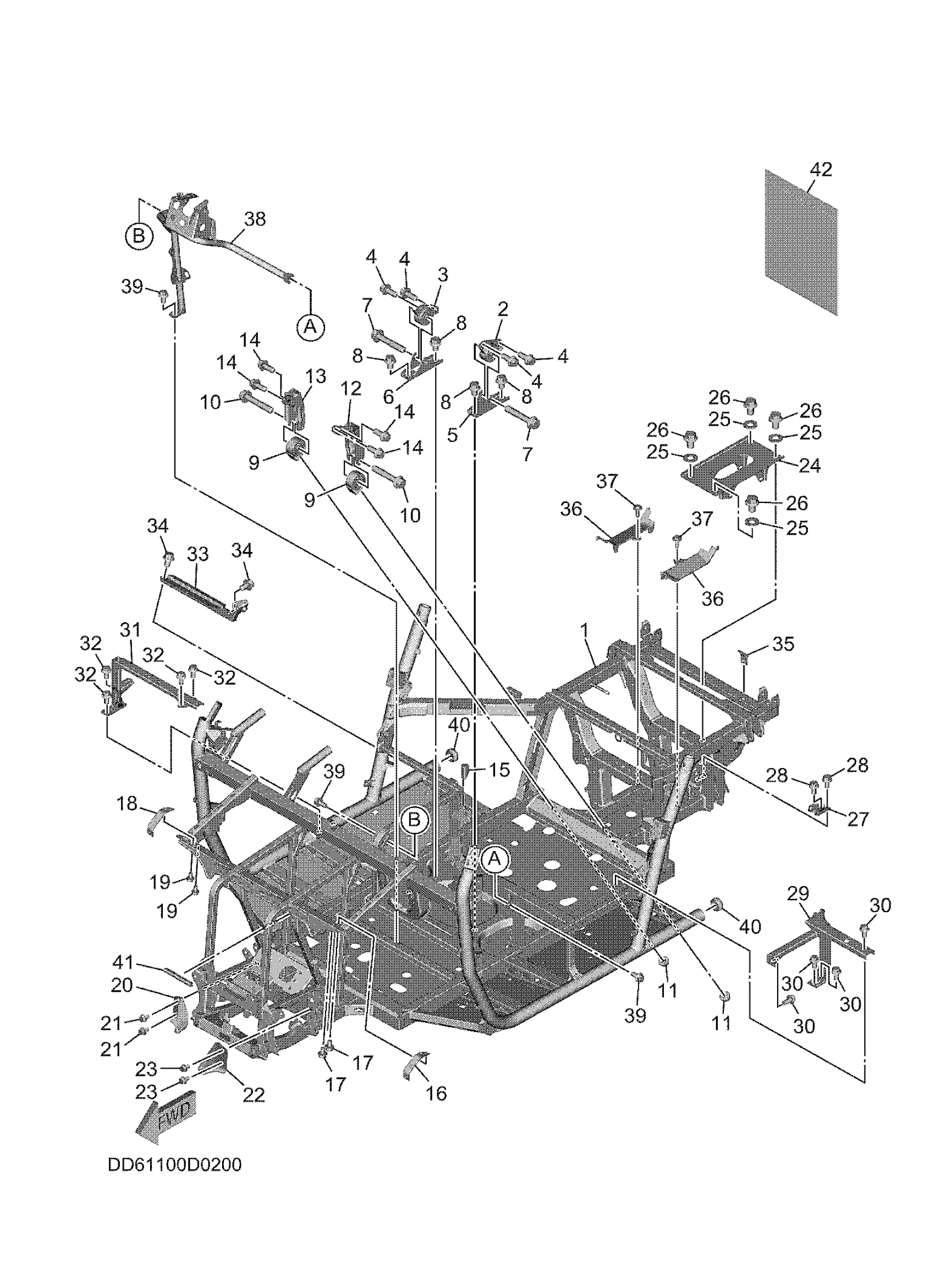

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 FRAME Diagram
#
1
FRAME COMP.
BAN-F1110-50-00
Unavailable
2
ENGINE BRACKET COMP.
BG4-21410-00-00
Unavailable
3
ENGINE BRACKET COMP. 2
BG4-21420-00-00
Unavailable
4
BOLT, FLANGE DEEP RECESS
95D32-10025-00
Unavailable
5
BRACKET 5
BG4-F161F-00-00
$12.49
6
BRACKET 3
BG4-F161A-00-00
$11.49
7
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
8
BOLT, FLANGE DEEP RECESS
95D32-10016-00
$1.06
9
BRACKET, ENGINE 1
B4J-21490-10-00
Unavailable
10
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
11
NUT
90179-10033-00
Unavailable
12
SUPPORT, ENGINE
B4J-F1283-04-00
Unavailable
13
SUPT., ENGINE 2
B4J-F1284-05-00
Unavailable
14
BOLT, FLANGE DEEP RECESS
95D37-10025-00
$1.96
15
GROMMET
BKP-F1773-00-00
Unavailable
16
BRACKET 1
BG4-F172K-00-00
Unavailable
17
BOLT, FLANGE
95812-06010-00
Unavailable
18
BRACKET 1
BG4-F172K-00-00
Unavailable
19
BOLT, FLANGE
95812-06010-00
Unavailable
20
BRACKET 2
BFN-F1239-00-00
Unavailable
21
BOLT, FLANGE
95812-12020-00
Unavailable
22
BRACKET
BFN-F1249-00-00
Unavailable
23
BOLT, FLANGE
95812-12020-00
Unavailable
24
STAY, SUPPORT 1
BG4-F831T-00-00
Unavailable
25
WASHER, PLATE
90201-12039-00
Unavailable
26
BOLT, FLANGE
90105-12121-00
Unavailable
27
BRKT., RR. AXLE
BAR-F1981-00-00
Unavailable
28
BOLT, FLANGE
95812-12020-00
Unavailable
29
LUG, SEAT RAIL LH.
BG4-F1143-11-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
Unavailable
31
MEMBER, SEAT SUPPO
BG4-F255G-01-00
Unavailable
32
BOLT, FLANGE
90105-08867-00
Unavailable
33
BRACKET, LOCK 2
BG4-F287M-00-00
Unavailable
34
BOLT, FLANGE
95817-10020-00
Unavailable
35
STAY, MUFFLER 2
B8K-F1446-00-00
Unavailable
36
COVER 3
2MB-F198J-01-00
Unavailable
37
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
38
REINFORCEMENT, FRAME 1
BG4-F1986-01-00
Unavailable
39
BOLT, FLANGE
90105-08867-00
Unavailable
40
PLUG
B8K-F2417-00-00
Unavailable
41
MOLD, FUEL TANK
31A-24188-01-00
Unavailable
42
POUCH
1P0-F8186-01-00
Unavailable
