Description

Price

1

WIRE HARNESS ASSY

BAN-82590-11-00

Unavailable

2

FUSE

5JJ-82151-60-00

$7.99

3

FUSE (15A)

67F-82151-50-00

Unavailable

4

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

5

. FUSE (10A)

67F-82151-40-00

Unavailable

6

SLOW BLOW FUSE

JR9-82151-00-00

$13.49

7

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$43.99

8

THERMO SWITCH ASSY

5B4-82560-00-00

$56.99

9

FUSE (50A)

5JW-82151-10-00

$16.49

10

FUSE

5JJ-82151-20-00

$7.99

11

CLAMP

90464-48800-00

Unavailable

12

CLAMP

90464-10009-00

Unavailable

13

CLAMP

1NS-F1338-00-00

$3.33

14

CLAMP(2TV)

90464-10112-00

$8.49

15

CLAMP

90464-12830-00

$1.49

16

CLAMP

1NS-F1338-00-00

$3.33

17

CLAMP(2TV)

90464-10112-00

$8.49

18

CLAMP(JN6)

90464-31827-00

Unavailable

19

CLAMP(JN6)

90464-40825-00

Unavailable

20

CLAMP

1NS-F1338-00-00

$3.33

21

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

22

CLAMP

90464-48800-00

Unavailable

23

CLAMP(JN6)

90464-31827-00

Unavailable

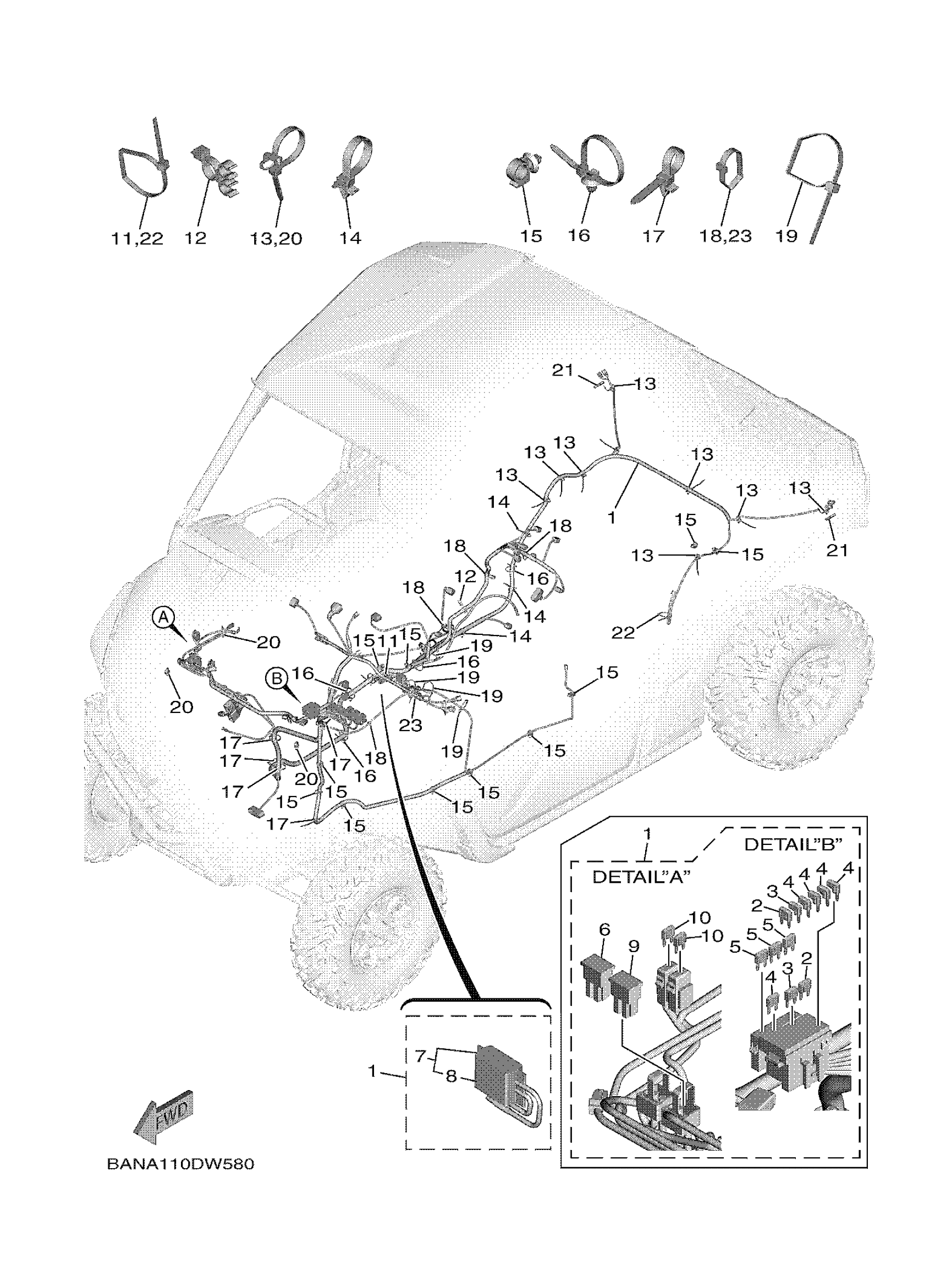

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 ELECTRICAL 3 Diagram

WIRE HARNESS ASSY

FUSE

FUSE (15A)

FUSE (7.5A-BL)

. FUSE (10A)

SLOW BLOW FUSE

CIRCUIT BREAKER ASSY

THERMO SWITCH ASSY

FUSE (50A)

FUSE

CLAMP

CLAMP

CLAMP

CLAMP(2TV)

CLAMP

CLAMP

CLAMP(2TV)

CLAMP(JN6)

CLAMP(JN6)

CLAMP

MOLD, FUEL TANK

CLAMP

CLAMP(JN6)
